SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

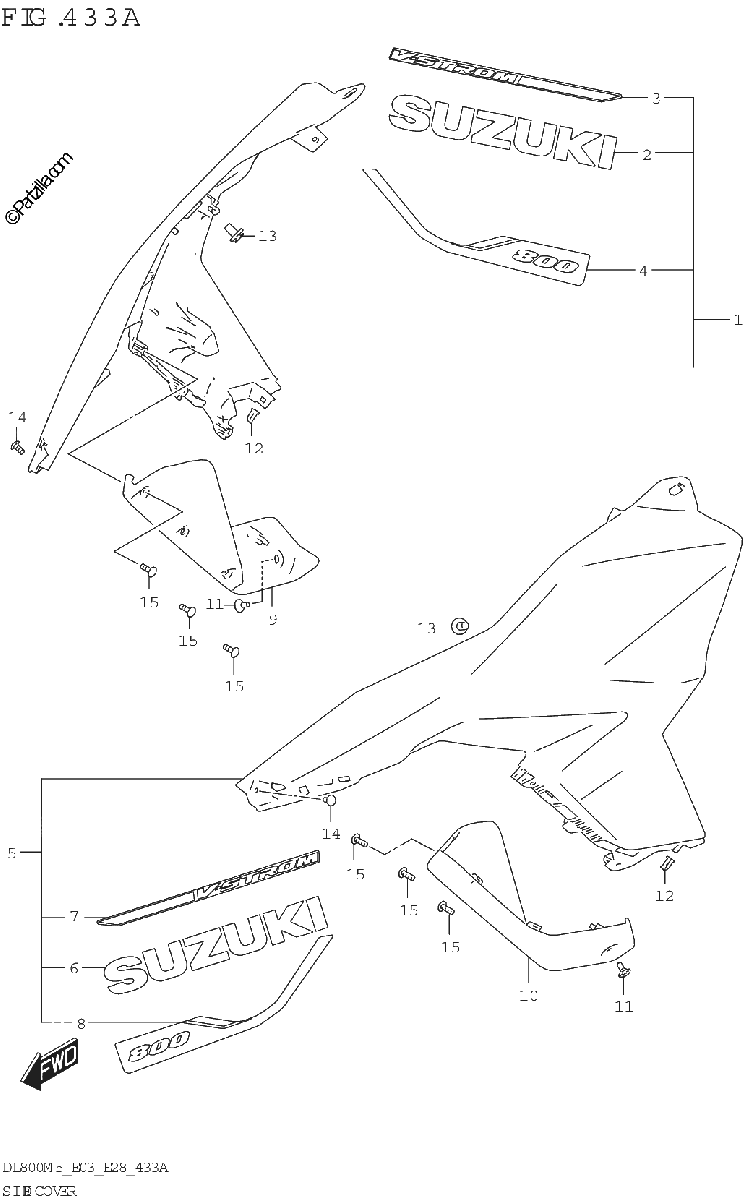

Diagrama de SIDE COVER

Repuestos

#1-1
94420-25L10-QEB
COVER,SIDE,R (GRAY) *{BODY COLOR:QEB}*
$182.96¢91 482
1
#11
09139-05091
SCREW
$2.42¢1 208
1
#1-2
94420-25L10-YKV
COVER,SIDE,R (BLACK) *{BODY COLOR:YKV}*
No Disponible
1
#12
09409-08012
CLIP,FUEL TANK COVER
$3.04¢1 518
1
#1-3
94420-25L10-YYG
COVER,SIDE,R (RED) *{BODY COLOR:YYG}*
No Disponible
1
#13
09409-10314
CLIP
$2.38¢1 190
1
#14
03541-0512A
SCREW
$1.64¢822
1
#15
03541-0516A
SCREW
$1.64¢822
1
#2-1
68111-47C10-019
.EMBLEM, "SUZUKI" (BLACK)
$25.43¢12 713
1
#2-2
68111-47C10-QKA
EMBLEM,SUZUKI (SILVER)
$11.83¢5 917
1
#3-1
68271-25L10-C1D
EMBLEM,SIDE COVER,R (BLACK,R D,GRAY) *{BODY COLOR:QEB}*
$24.01¢12 006
1
#3-2
68271-25L10-C1E
EMBLEM,SIDE COVER,R (SILVER, ELLOW,BLACK) *{BODY COLOR:YKV}*
No Disponible
1
#3-3
68271-25L10-C1F
EMBLEM,SIDE COVER,R (SILVER, LACK,RED) *{BODY COLOR:YYG}*
No Disponible
1
#4-1
68275-25L10-C1D
TAPE,SIDE COVER,R (BLACK,RED GRAY) *{BODY COLOR:QEB}*
$29.64¢14 818
1
#4-2
68275-25L10-C1E
TAPE,SIDE COVER,R (SILVER,YE LOW,BLACK) *{BODY COLOR:YKV}*
No Disponible
1
#4-3
68275-25L10-C1F
TAPE,SIDE COVER,R (SILVER,BL CK,RED) *{BODY COLOR:YYG}*
No Disponible
1
#5-1
94430-25L10-QEB
COVER,SIDE,L (GRAY) *{BODY COLOR:QEB}*
$184.67¢92 334
1
#5-2
94430-25L10-YKV
COVER,SIDE,L (BLACK) *{BODY COLOR:YKV}*
No Disponible
1
#5-3
94430-25L10-YYG
COVER,SIDE,L (RED) *{BODY COLOR:YYG}*
No Disponible
1
#6-1
68111-47C10-019
.EMBLEM, "SUZUKI" (BLACK)
$25.43¢12 713
1
#6-2
68111-47C10-QKA
EMBLEM,SUZUKI (SILVER)
$11.83¢5 917
1
#7-1
68281-25L10-C1D
EMBLEM,SIDE COVER,L (BLACK,R D,GRAY) *{BODY COLOR:QEB}*
$24.01¢12 006
1
#7-2
68281-25L10-C1E
EMBLEM,SIDE COVER,L (SILVER, ELLOW,BLACK) *{BODY COLOR:YKV}*
No Disponible
1
#7-3
68281-25L10-C1F
EMBLEM,SIDE COVER,L (SILVER, LACK,RED) *{BODY COLOR:YYG}*
No Disponible
1
#8-1
68285-25L10-C1D
TAPE,SIDE COVER,L (BLACK,RED GRAY) *{BODY COLOR:QEB}*
$29.64¢14 818
1
#8-2
68285-25L10-C1E
TAPE,SIDE COVER,L (SILVER,YE LOW,BLACK) *{BODY COLOR:YKV}*
No Disponible
1
#8-3
68285-25L10-C1F
TAPE,SIDE COVER,L (SILVER,BL CK,RED) *{BODY COLOR:YYG}*
No Disponible
1
#9-1
94442-25LA0-019
GARNISH,SIDE COVER,R (BLACK)
$71.74¢35 869
1
#9-2
94442-25LA0-YU1
GARNISH,SIDE COVER,R (YELLOW) *{BODY COLOR:QT7}*
$73.54¢36 771
1
#10-1
94452-25LA0-019
GARNISH,SIDE COVER,L (BLACK)
$71.74¢35 869
1
#10-2
94452-25LA0-YU1
GARNISH,SIDE COVER,L (YELLOW) *{BODY COLOR:QT7}*
$73.54¢36 771
1
