FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

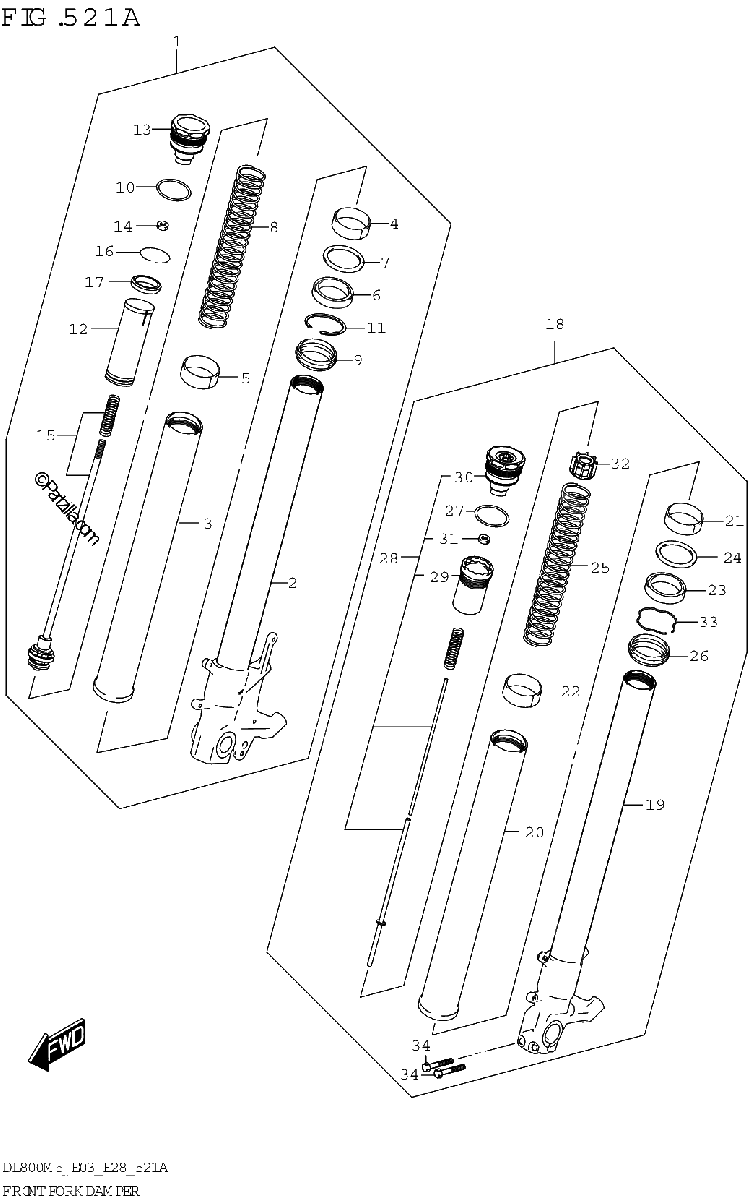

Diagrama de FRONT FORK DAMPER

Repuestos

#1
51103-25L40
DAMPER ASSY,R
$1145.54¢572 769
1
#2
51110-25L40
TUBE,INNER,R
$582.40¢291 200
1
#3
51131-25L20
TUBE,OUTER
$631.60¢315 800
1
#4
51152-01H10
.BUSH, GUIDE
$21.75¢10 875
1
#5
51152-14J00
.BUSH, SLIDE
$16.94¢8 469
1
#6
51153-01H10
.OIL SEAL
$32.09¢16 044
1
#7
51168-38B00
.SPACER, SEAL
$7.97¢3 988
1
#8
51171-25L20
SPRING,FR
$60.48¢30 238
1
#9
51173-15D00
DUST SEAL
$28.44¢14 219
1
#10
51187-15D50
O-RING,JACK
$6.15¢3 075
1
#11
51156-25L20
INTERNAL CIRCLIP
$5.29¢2 644
1
#12
51174-25L20
ROD GUIDE CASE
$92.91¢46 456
1
#13
51189-25L20
BOLT,FORK
$108.91¢54 456
1
#14
51827-25L20
NUT
$5.35¢2 675
1
#15
52110-25L20
PISTON ROD
$170.38¢85 188
1
#16
51118-25L10
RING STOPPER
$4.69¢2 344
1
#17
51136-25L10
STOPPER
$14.09¢7 044
1
#18
51104-25L40
DAMPER ASSY,L
$1145.54¢572 769
1
#19
51210-25L40
TUBE,INNER,L
$582.40¢291 200
1
#20
51131-25L20
TUBE,OUTER
$631.60¢315 800
1
#21
51152-01H10
.BUSH, GUIDE
$21.75¢10 875
1
#22
51152-14J00
.BUSH, SLIDE
$16.94¢8 469
1
#23
51153-01H10
.OIL SEAL
$32.09¢16 044
1
#24
51168-38B00
.SPACER, SEAL
$7.97¢3 988
1
#25
51171-25L20
SPRING,FR
$60.48¢30 238
1
#26
51173-15D00
DUST SEAL
$28.44¢14 219
1
#27
51187-15D50
O-RING,JACK
$6.15¢3 075
1
#28
51128-25L20
JOINT ROD
$305.44¢152 719
1
#29
51188-25L20
INNER FORK BOLT
$63.06¢31 531
1
#30
51199-25L20
BOLT,FORK
$192.47¢96 238
1
#31
51827-29G00
..NUT
No Disponible
1
#32
51175-25L20
SPRING SEAT
$28.09¢14 044
1
#33
51556-38B00
.RING
$8.61¢4 306
1
#34
51328-44HB0
BOLT,BRACKET UPPER
$6.00¢3 000
1
