SECONDARY DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

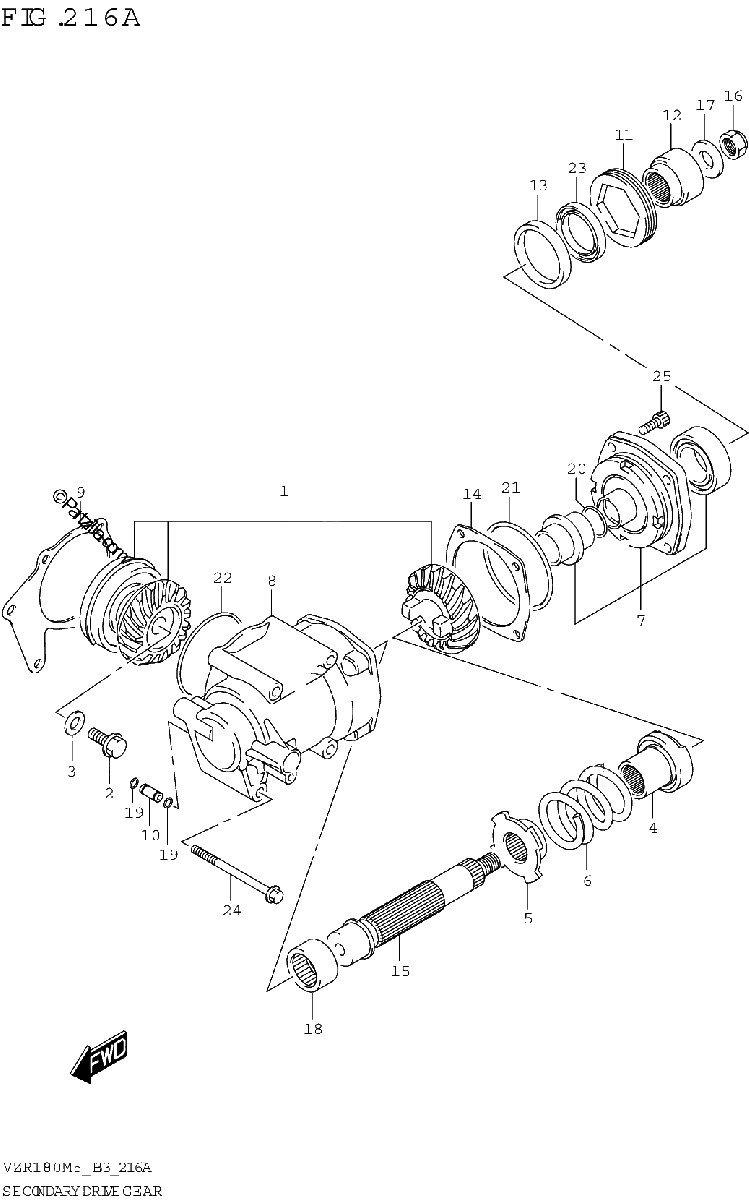

Diagrama de SECONDARY DRIVE GEAR

Repuestos

#1
24910-48830
GEAR SET, SECONDARY
$1168.55¢584 275
1
#2
09103-12084
BOLT (12X24)
$10.23¢5 118
1
#3
09160-12045
WASHER (12X35X2)
$4.51¢2 254
1
#4
24923-48G10
DOG, OUTPUT CAM
$159.91¢79 954
1
#5
24924-48G10
STOPPER, CAM SPRING
No Disponible
1
#6
24925-48G00
SPRING, SECONDARY DAMPER
$63.23¢31 613
1
#7
24926-48830
STOPPER SECONDARY SET, DRIVEN
$404.28¢202 141
1
#8
24931-48G30
CASE, SECONDARY GEAR
$470.23¢235 117
1
#9
24935-48810
SHIM SET, DRIVE | T:0.40/0.45/0.50/0.5
$123.26¢61 629
1
#10
24940-26D00
PIPE, SECONDARY GEAR CASE OIL
No Disponible
1
#11
24942-26D00
STOPPER, SECONDARY DRIVEN
$89.44¢44 718
1
#12
24943-48G01
COUPLING, SECONDARY DRIVEN
$132.22¢66 108
1
#13
24944-48G00
HOUSING, OIL SEAL
$65.01¢32 505
1
#14
24945-48820
SHIM SET, SECONDARY | T:0.30/0.35/0.40 0.50/0.60
No Disponible
1
#15
24961-48G00
SHAFT, SECONDARY DRIVEN BEVEL
$217.56¢108 779
1
#16
09159-16003
.NUT
$4.85¢2 427
1
#17
09160-16040
WASHER (16.5X36X4)
$14.17¢7 084
1
#18
09263-32012
BEARING (32X48X22)
$136.02¢68 011
1
#19
09280-06008
O RING (D:1.7,ID:6)
$2.47¢1 236
1
#20
09280-24010
O RING (D:2.4,ID:23.7)
$6.11¢3 053
1
#21
09280-78003
O RING (D:3.7,ID:76.5)
$9.11¢4 554
1
#22
09280-92003
O RING (D:2.4,ID:90.8)
$24.36¢12 179
1
#23
09283-38011
OIL SEAL (38X54X6)
$21.64¢10 821
1
#24
01550-0895A
BOLT
$5.55¢2 777
1
#25
09106-10087
BOLT (10X30)
$7.50¢3 749
1
