REAR FENDER E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

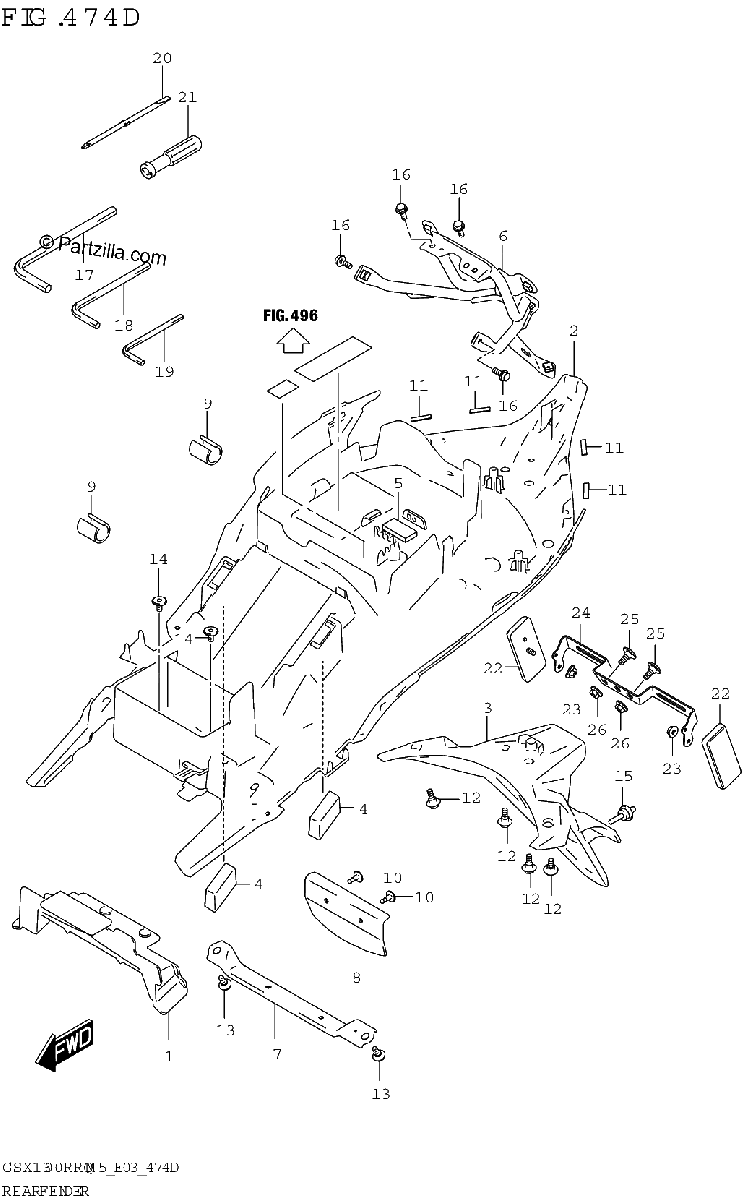

Diagrama de REAR FENDER E33

Repuestos

#1
47871-10L00
SHIELD,INNER
$41.22¢20 612
1
#2
63111-10L01
FENDER,REAR FRONT
$171.25¢85 625
1
#3
63112-10L00
FENDER,REAR REAR
$74.94¢37 469
1
#4
63113-10L00
CUSHION,REAR FENDER
$4.10¢2 050
1
#5
63114-10L00
CUSHION,REAR FENDER FRONT
$2.96¢1 481
1
#6
63120-10L00
BRACKET,REAR FENDER
$183.56¢91 781
1
#7
63130-10L00
BRACE,REAR FENDER FRONT
$36.16¢18 081
1
#8
63411-10L00
MUDGUARD,RR FENDER FR UPR
$18.13¢9 063
1
#9
92215-39H00
CUSHION, BATTERY BOX
$5.69¢2 844
1
#10
94479-35F00
CLIP
$6.70¢3 350
1
#11
94675-07L00
CUSHION,SIDE COWL
$3.29¢1 644
1
#12
09111-06072
BOLT (6X17.8)
$2.63¢1 313
1
#13
09111-06242
BOLT (6X16.5) | LH
No Disponible
1
#14
09139-06220
BOLT,UNDER COWL COVER
$4.97¢2 488
1
#15
09321-06037
CUSHION
$3.10¢1 550
1
#16
01550-0616A
BOLT
$2.56¢1 281
1
#17
96514-10L00
SPANNER,HEXAGON (6)
$7.90¢3 950
1
#18
96514-17K00
HEXAGON, SPANNER 5
$6.44¢3 219
1
#19
96514-17K10
HEXAGON, SPANNER 4
$4.46¢2 231
1
#20
09814-00015
DRIVER
No Disponible
1
#21
09814-00016
DRIVER GRIP
$5.54¢2 769
1
#22
35970-07F01
REFLECTOR ASSY, REAR SIDE
$24.90¢12 450
1
#23
08316-1005B
NUT
$3.25¢1 625
1
#24
47461-10L00
BRACKET,REAR SIDE RR
$16.35¢8 175
1
#25
09139-06137
SCREW (6X16)
$3.52¢1 763
1
#26
09159-06096
NUT
$4.13¢2 063
1
