FRAME COVER GSX1300RRQ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

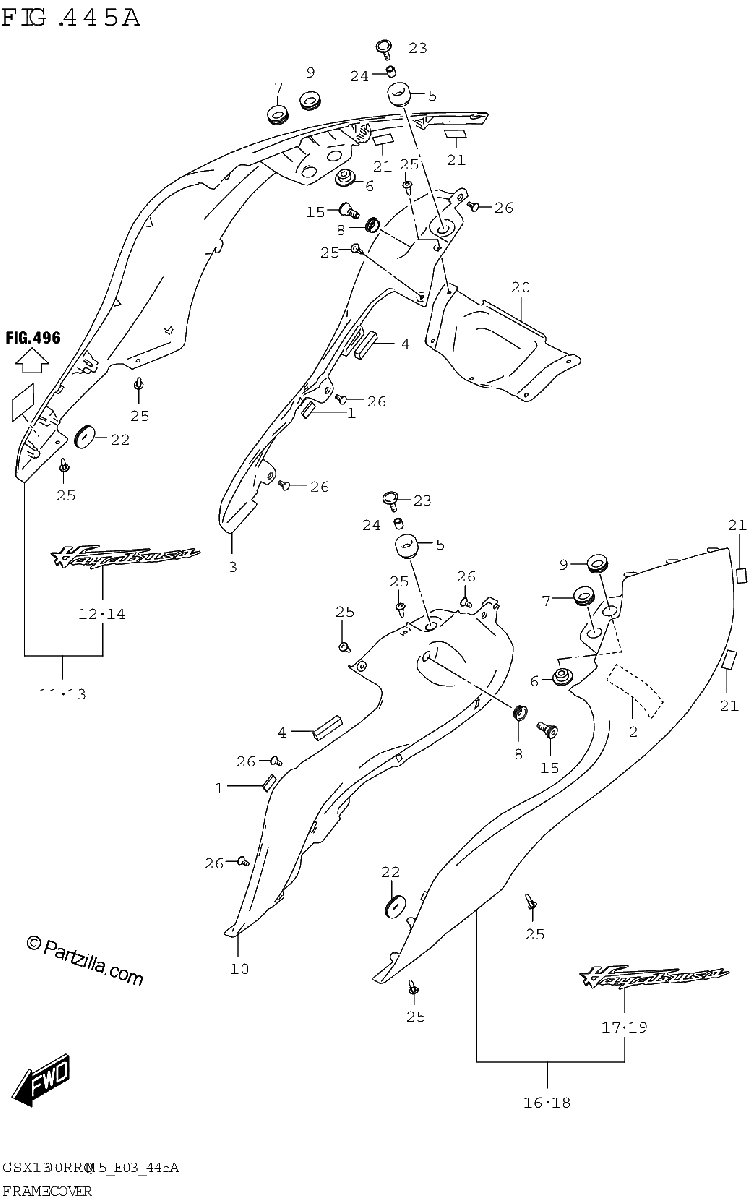

Diagrama de FRAME COVER GSX1300RRQ

Repuestos

#1
33652-22D01
CUSHION,FRAME COVER NO.1
$1.86¢932
1
#2
33652-34000
PROTECTOR (30X80X2)
$6.20¢3 099
1
#4
47112-10L00
CUSHION,FRAME COVER NO.2
$1.13¢564
1
#5
47115-16G01
CUSHION,FRAME COVER UP
$3.81¢1 903
1
#6
47190-24F21
WASHER, UPPER REAR
$11.21¢5 606
1
#7
47191-24F00
CUSHION
$5.83¢2 915
1
#8
47191-24F20
SPACER, SIDE CENTER
$7.92¢3 962
1
#9
47191-24F30
CUSHION, UPPER REAR
$7.82¢3 910
1
#13
47300-10L00-QVP
COVER ASSY,FRAME REAR,R (GREE )
$170.31¢85 157
1
#15
47323-10L00
BOLT,FRAME COVER REAR
$3.93¢1 967
1
#18
47400-10L00-QVP
COVER ASSY,FRAME REAR,L (GREE )
$165.62¢82 812
1
#20
47411-10L00
LID,FRAME COVER
$26.83¢13 415
1
#21
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#22
94478-14J00
CUSHION
$6.49¢3 243
1
#23
09136-06126
SCREW (6X25)
$3.79¢1 897
1
#24
09180-06288
.SPACER (6.5X10X11)
$2.45¢1 225
1
#25
09409-06314
CLIP
$3.31¢1 656
1
#26
03541-0512A
SCREW
$1.64¢822
1
#3-1
47111-10L00-YKY
COVER,FRAME,R (BLUE) *{BODY COLOR:JWN}*
$116.58¢58 288
1
#3-2
47111-10L00-YMC
COVER,FRAME,R (SILVER) *{BODY COLOR:BLG}*
$152.28¢76 142
1
#3-3
47111-10L00-YVB
COVER,FRAME,R (BLACK) *{BODY COLOR:C0T}*
$152.28¢76 142
1
#10-1
47211-10L00-YKY
COVER,FRAME,L (BLUE) *{BODY COLOR:JWN}*
$158.30¢79 149
1
#10-2
47211-10L00-YMC
COVER,FRAME,L (SILVER) *{BODY COLOR:BLG}*
$152.28¢76 142
1
#10-3
47211-10L00-YVB
COVER,FRAME,L (BLACK) *{BODY COLOR:C0T}*
$152.28¢76 142
1
#11-1
47320-10L01-YMD
COVER,FRAME REAR,R (SILVER) *{BODY COLOR:ASU}*
$167.23¢83 616
1
#11-2
47320-10L01-YVB
COVER,FRAME REAR,R (BLACK) *{BODY COLOR:BLG}*
$151.42¢75 710
1
#12-1
68131-10L01-JRU
EMBLEM,FRAME COVER,R (SILVER BLACK) *{BODY COLOR:ASU}*
$11.94¢5 969
1
#12-2
68131-10L01-AA3
EMBLEM,FRAME COVER,R (GRAY,B ACK) *{BODY COLOR:BLG}*
$11.30¢5 652
1
#12-3
68131-10L01-C0T
EMBLEM,FRAME COVER,R (GREEN, LACK) *{BODY COLOR:C0T}*
$11.94¢5 969
1
#14-1
68131-10L01-JRU
EMBLEM,FRAME COVER,R (SILVER BLACK) *{BODY COLOR:ASU}*
$11.94¢5 969
1
#14-2
68131-10L01-AA3
EMBLEM,FRAME COVER,R (GRAY,B ACK) *{BODY COLOR:BLG}*
$11.30¢5 652
1
#14-3
68131-10L01-C0T
EMBLEM,FRAME COVER,R (GREEN, LACK) *{BODY COLOR:C0T}*
$11.94¢5 969
1
#16-1
47330-10L01-YMD
COVER,FRAME REAR,L (SILVER) *{BODY COLOR:ASU}*
$153.18¢76 590
1
#16-2
47330-10L01-YVB
COVER,FRAME REAR,L (BLACK) *{BODY COLOR:BLG}*
$145.11¢72 554
1
#17-1
68141-10L01-JRU
EMBLEM,FRAME COVER,L (SILVER BLACK) *{BODY COLOR:ASU}*
$11.94¢5 969
1
#17-2
68141-10L01-AA3
EMBLEM,FRAME COVER,L (GRAY,B ACK) *{BODY COLOR:BLG}*
$11.30¢5 652
1
#17-3
68141-10L01-C0T
EMBLEM,FRAME COVER,L (GREEN, LACK) *{BODY COLOR:C0T}*
$11.94¢5 969
1
#19-1
68141-10L01-JRU
EMBLEM,FRAME COVER,L (SILVER BLACK) *{BODY COLOR:ASU}*
$11.94¢5 969
1
#19-2
68141-10L01-AA3
EMBLEM,FRAME COVER,L (GRAY,B ACK) *{BODY COLOR:BLG}*
$11.30¢5 652
1
#19-3
68141-10L01-C0T
EMBLEM,FRAME COVER,L (GREEN, LACK) *{BODY COLOR:C0T}*
$11.94¢5 969
1
