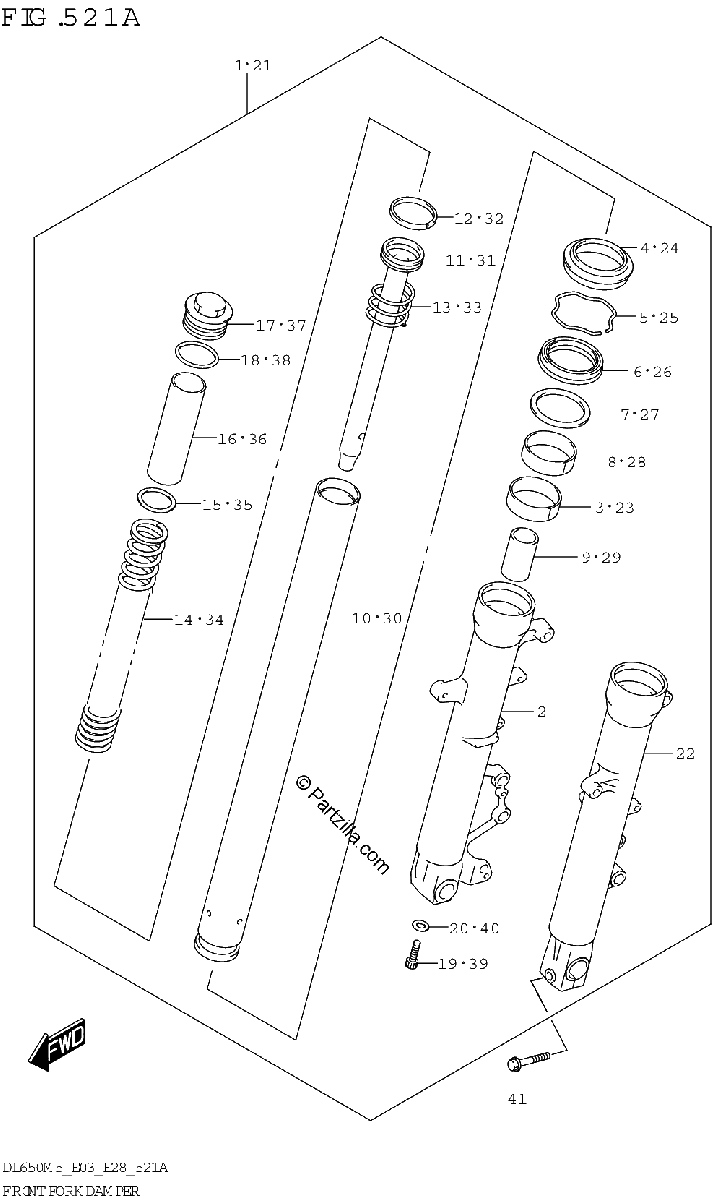

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FR FORK RH (BLACK)
$818.17¢409 084
#2
TUBE,OUTER RH (BLACK)
$645.23¢322 615
#3
BUSH, SLIDE
$23.15¢11 575
#4
.SEAL, DUST
$29.16¢14 582
#5
RING, STOPPER
$6.01¢3 007
#6
OIL SEAL
$27.14¢13 570
#7
SPACER, SEAL
$5.23¢2 616
#8
.BUSH, GUIDE
$15.58¢7 791
#9
PIECE, OIL LOCK
$15.49¢7 745
#10
PIPE, FORK
$329.68¢164 841
#11
PIPE, SEAT
$26.66¢13 328
#12
RING, PISTON
$7.27¢3 634
#13
SPRING, REBOUND
$8.07¢4 036
#14
SPRING,FR
$95.71¢47 857
#15
SEAT, SPRING LWR *{LOWER}*
$4.94¢2 472
#16
COLLAR, SPRING
$7.33¢3 663
#17
BOLT,FORK
$76.70¢38 353
#18
O RING
$4.94¢2 472
#19
BOLT
$3.13¢1 564
#20
GASKET
$5.08¢2 541
#21
DAMPER ASSY, FR FORK LH (BLACK)
$818.17¢409 084
#22
TUBE,OUTER LH (BLACK)
$645.23¢322 615
#23
BUSH, SLIDE
$23.15¢11 575
#24
.SEAL, DUST
$29.16¢14 582
#25
RING, STOPPER
$6.01¢3 007
#26
OIL SEAL
$27.14¢13 570
#27
SPACER, SEAL
$5.23¢2 616
#28
.BUSH, GUIDE
$15.58¢7 791
#29
PIECE, OIL LOCK
$15.49¢7 745
#30
PIPE, FORK
$329.68¢164 841
#31
PIPE, SEAT
$26.66¢13 328
#32
RING, PISTON
$7.27¢3 634
#33
SPRING, REBOUND
$8.07¢4 036
#34
SPRING,FR
$95.71¢47 857
#35
SEAT, SPRING LWR *{LOWER}*
$4.94¢2 472
#36
COLLAR, SPRING
$7.33¢3 663
#37
BOLT,FORK
$76.70¢38 353
#38
O RING
$4.94¢2 472
#39
BOLT
$3.13¢1 564
#40
GASKET
$5.08¢2 541
#41
BOLT | LH
$4.93¢2 467
