SIDE COVER DL1050RJ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

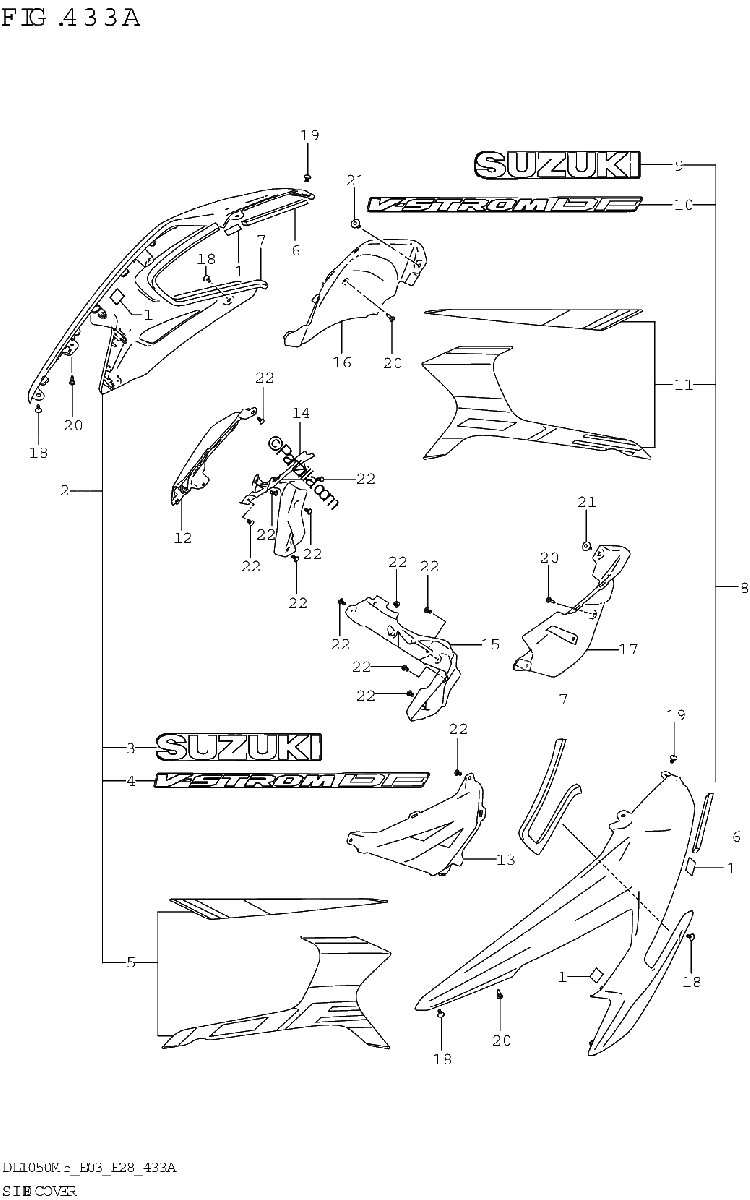

Diagrama de SIDE COVER DL1050RJ

Repuestos

#1
44572-13G10
.FASTENER,REAR COMB LAMP (33X 5)
$20.79¢10 394
1
#6
94425-06L00
CUSHION,SIDE COVER NO.1
$8.15¢4 075
1
#7
94426-06L00
CUSHION,SIDE COVER NO.2
$9.81¢4 906
1
#12
94441-06L00
COVER,SIDE NO.2 RH
$40.50¢20 250
1
#13
94451-06L00
COVER,SIDE NO.2 LH
$43.72¢21 862
1
#14
94463-06L00
COVER,SIDE INNER LWR RH
$60.91¢30 456
1
#15
94464-06L00
COVER,SIDE INNER LWR LH
$60.91¢30 456
1
#16
94471-06L00
COVER,SIDE INNER UPR RH
$29.21¢14 606
1
#17
94481-06L00
COVER,SIDE INNER UPR LH
$29.21¢14 606
1
#18
09139-05091
SCREW
$2.63¢1 313
1
#19
09139-06172
SCREW (6X10)
$3.65¢1 825
1
#20
09409-06314
CLIP
$3.60¢1 800
1
#2-1
94420-06L30-6UX
COVER,SIDE,R (BLACK) *{BODY COLOR:C4X}*
$276.40¢138 200
1
#21
09409-07333
CLIP
$2.99¢1 494
1
#2-2
94420-06L30-ZFX
COVER,SIDE,R (YELLOW) *{BODY COLOR:BT1}*
$276.40¢138 200
1
#22
03541-0512B
SCREW
$2.30¢1 150
1
#2-3
94420-06L30-QU2
COVER,SIDE,R (WHITE) *{BODY COLOR:CK6}*
$276.40¢138 200
1
#3-1
68181-06L00-BD7
.EMBLEM,"SUZUKI" RH (GRAY/BLA K) *{BODY COLOR:YVB}*
$22.65¢11 325
1
#3-2
68181-06L00-GY8
EMBLEM,"SUZUKI" (YELLOW,BLAC ) *{BODY COLOR:BT1}*
$26.50¢13 250
1
#3-3
68181-06L00-C1Q
EMBLEM,"SUZUKI" *{BODY COLOR:CK6}*
$26.50¢13 250
1
#4-1
68270-06L00-B4S
TAPE SET,SIDE COVER,R (RED,B ACK,GRAY) *{BODY COLOR:C4X}*
$97.09¢48 544
1
#4-2
68270-06L00-CL8
TAPE SET,SIDE COVER,R *{BODY COLOR:BT1}*
$97.09¢48 544
1
#4-3
68270-06L00-C1G
TAPE SET,SIDE COVER,R *{BODY COLOR:CK6}*
$97.09¢48 544
1
#5-1
68271-06L20-B4S
EMBLEM,SIDE COVER,R (RED,BLA K,GRAY) *{BODY COLOR:C4X}*
$30.75¢15 375
1
#5-2
68271-06L20-CL8
EMBLEM,SIDE COVER,R *{BODY COLOR:BT1}*
$30.75¢15 375
1
#5-3
68271-06L20-C1N
EMBLEM,SIDE COVER,R *{BODY COLOR:CK6}*
$30.75¢15 375
1
#8-1
94430-06L30-6UX
COVER,SIDE,L (BLACK) *{BODY COLOR:C4X}*
$284.25¢142 125
1
#8-2
94430-06L30-ZFX
COVER,SIDE,L (YELLOW) *{BODY COLOR:BT1}*
$284.25¢142 125
1
#8-3
94430-06L30-QU2
COVER,SIDE,L (WHITE) *{BODY COLOR:CK6}*
$284.25¢142 125
1
#9-1
68191-06L00-BD7
.EMBLEM,"SUZUKI" LH (GRAY/BLA K) *{BODY COLOR:YVB}*
$22.65¢11 325
1
#9-2
68191-06L00-GY8
EMBLEM,"SUZUKI",L (YELLOW,BL CK) *{BODY COLOR:BT1}*
$26.50¢13 250
1
#9-3
68191-06L00-C1Q
EMBLEM,"SUZUKI",L *{BODY COLOR:CK6}*
$26.50¢13 250
1
#10-1
68281-06L20-B4S
EMBLEM,SIDE COVER,L (RED,BLA K,GRAY) *{BODY COLOR:C4X}*
$30.75¢15 375
1
#10-2
68281-06L20-CL8
EMBLEM,SIDE COVER,L *{BODY COLOR:BT1}*
$30.75¢15 375
1
#10-3
68281-06L20-C1N
EMBLEM,SIDE COVER,L *{BODY COLOR:CK6}*
$30.75¢15 375
1
#11-1
68280-06L00-B4S
TAPE SET,SIDE COVER,L (RED,B ACK,GRAY) *{BODY COLOR:C4X}*
$97.09¢48 544
1
#11-2
68280-06L00-CL8
TAPE SET,SIDE COVER,L *{BODY COLOR:BT1}*
$97.09¢48 544
1
#11-3
68280-06L00-C1G
TAPE SET,SIDE COVER,L *{BODY COLOR:CK6}*
$97.09¢48 544
1
