COWLING BODY DL1050RJ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

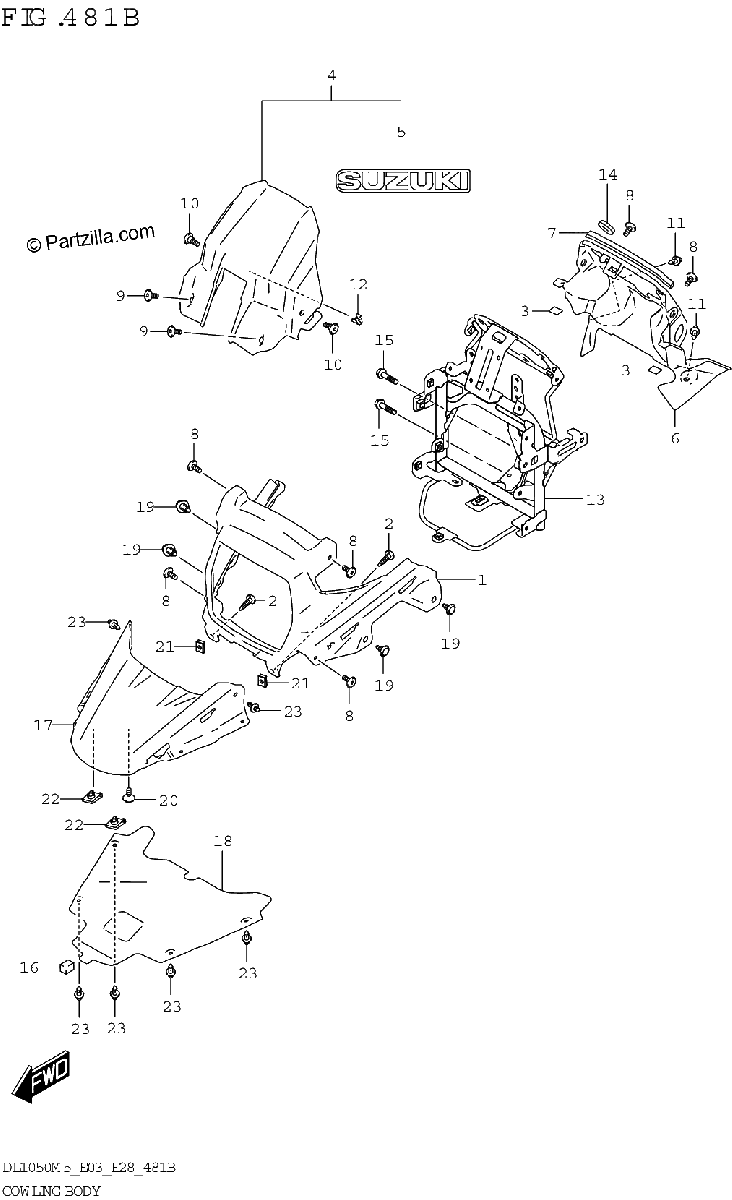

Diagrama de COWLING BODY DL1050RJ

Repuestos

#1
94411-06L00
COWLING,BODY
$201.75¢100 875
1
#2
03541-0516A
SCREW
$1.79¢894
1
#3
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#4
94630-06L00-B5J
PANEL,METER FRONT
$99.00¢49 500
1
#5
68721-13E00-B5J
.EMBLEM,"SUZUKI"
$14.59¢7 294
1
#6
94632-06L10
PANEL,METER REAR
$34.25¢17 125
1
#7
94633-06L00
CUSHION,METER PANEL REAR
$4.40¢2 200
1
#8
09139-05091
SCREW
$2.63¢1 313
1
#9
09139-05091
SCREW
$2.63¢1 313
1
#10
09139-05109
SCREW,METER PANEL
$2.38¢1 188
1
#11
09409-06314
CLIP
$3.60¢1 800
1
#12
09409-08326
CLIP
$3.19¢1 594
1
#13
94510-06L10
BRACE,COWLING
$299.44¢149 719
1
#14
09320-08018
CUSHION | LH
$3.65¢1 825
1
#15
01550-0820A
BOLT
$2.94¢1 469
1
#16
33652-05G20
CUSHION
$3.44¢1 719
1
#17
94413-06L00-YKV
COWLING,BODY CTR (BLACK)
$144.53¢72 263
1
#18
94414-06L00
COWLING,BODY CTR LWR
$31.81¢15 906
1
#19
94479-35F00
CLIP
$6.70¢3 350
1
#20
09139-05091
SCREW
$2.63¢1 313
1
#21
09148-05038
NUT
$2.56¢1 281
1
#22
09148-05052
NUT
$3.96¢1 981
1
#23
09409-06314
CLIP
$3.60¢1 800
1
