FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

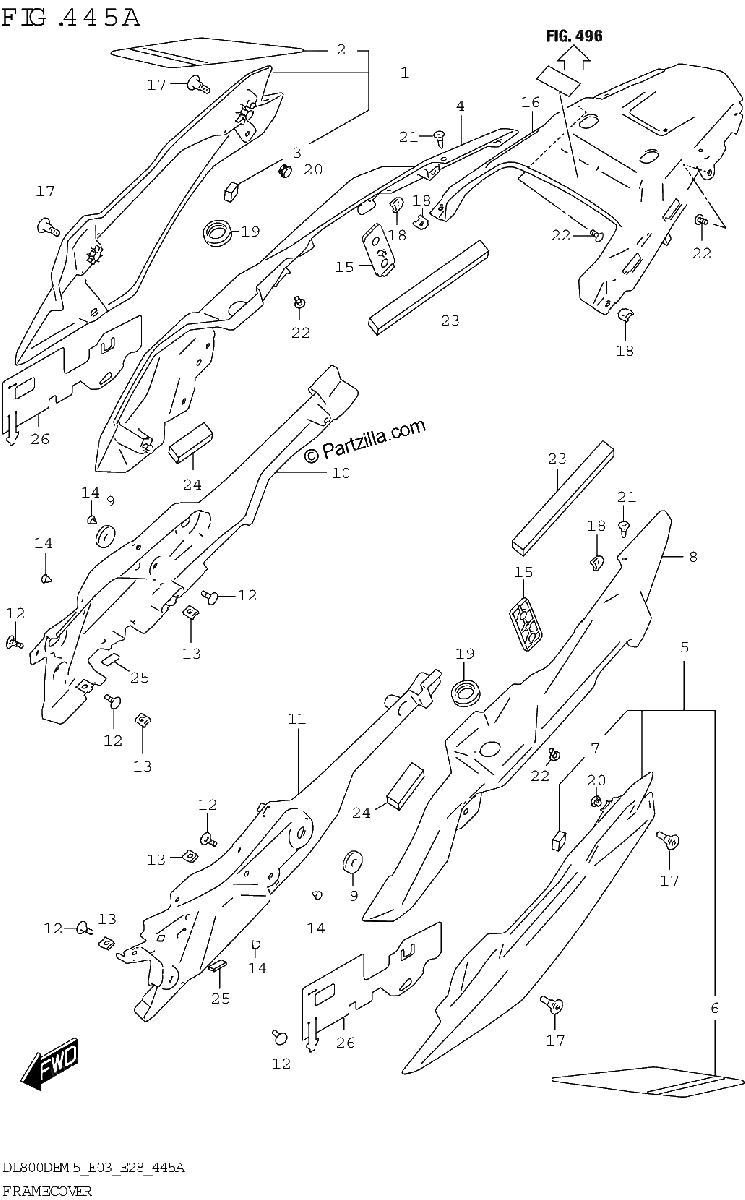

Diagrama de FRAME COVER

Repuestos

#3
47117-25LA0
CUSHION
$0.69¢345
1
#7
47117-25LA0
CUSHION
$0.69¢345
1
#9
09320-08018
CUSHION | LH
$3.36¢1 679
1
#10
47311-25LA0
COVER,FRAME INNER,R
$12.05¢6 026
1
#1-1
47410-25L00-02X
COVER,FRAME SIDE,R (BLACK) *{BODY COLOR:YU1}*
No Disponible
1
#11
47321-25LA0
COVER,FRAME INNER,L
$12.05¢6 026
1
#1-2
47410-25L00-14X
COVER,FRAME SIDE,R (BLACK) *{BODY COLOR:YVB}*
No Disponible
1
#12
94479-35F00
CLIP
$6.16¢3 082
1
#1-3
47410-25L00-DHX
COVER,FRAME SIDE,R *{BODY COLOR:QU2}*
No Disponible
1
#13
09148-05038
NUT
$2.36¢1 179
1
#14
09250-06017
PLUG,RR FENDER
$3.28¢1 639
1
#15
47510-28K00
SPACER,FRAME COVER
$22.00¢11 000
1
#17
47913-06L00
SCREW
$2.06¢1 029
1
#18
09148-05045
NUT
$2.92¢1 461
1
#19
09320-20011
CUSHION (20X32X9)
$3.24¢1 621
1
#20
09321-05023
CUSHION
$2.45¢1 225
1
#2-1
68135-25L00-C0Y
TAPE,FRAME COVER SIDE,R *{BODY COLOR:YU1}*
No Disponible
1
#21
09409-06314
CLIP
$3.31¢1 656
1
#2-2
68135-25L00-C0Z
TAPE,FRAME COVER SIDE,R *{BODY COLOR:YVB}*
No Disponible
1
#22
03541-0512A
SCREW
$1.64¢822
1
#2-3
68135-25L00-C06
TAPE,FRAME COVER SIDE,R *{BODY COLOR:QU2}*
No Disponible
1
#23
47213-25LA0
CUSHION,FRAME COVER REAR
$1.84¢920
1
#24
47215-25LA0
CUSHION,FRAME COVER REAR
$1.21¢604
1
#25
94413-08F00
CUSHION
$4.25¢2 128
1
#26
47166-25LA0
SHIELD,FRAME COVER
$13.63¢6 814
1
#4-1
47411-25LA0-YU1
COVER,FRAME REAR,R (YELLOW) *{BODY COLOR:YU1}*
$64.40¢32 200
1
#4-2
47411-25LA0-YVB
COVER,FRAME REAR,R (BLACK) *{BODY COLOR:YVB}*
$64.40¢32 200
1
#4-3
47411-25LA0-QU2
COVER,FRAME REAR,R (WHITE) *{BODY COLOR:QU2}*
$62.82¢31 412
1
#5-1
47510-25L00-02X
COVER,FRAME SIDE,L (BLACK) *{BODY COLOR:YU1}*
No Disponible
1
#5-2
47510-25L00-14X
COVER,FRAME SIDE,L (BLACK) *{BODY COLOR:YVB}*
No Disponible
1
#5-3
47510-25L00-DHX
COVER,FRAME SIDE,L *{BODY COLOR:QU2}*
No Disponible
1
#6-1
68145-25L00-C0Y
TAPE,FRAME COVER SIDE,L *{BODY COLOR:YU1}*
No Disponible
1
#6-2
68145-25L00-C0Z
TAPE,FRAME COVER SIDE,L *{BODY COLOR:YVB}*
No Disponible
1
#6-3
68145-25L00-C06
TAPE,FRAME COVER SIDE,L *{BODY COLOR:QU2}*
No Disponible
1
#8-1
47511-25LA0-YU1
COVER,FRAME REAR,L (YELLOW) *{BODY COLOR:YU1}*
$64.40¢32 200
1
#8-2
47511-25LA0-YVB
COVER,FRAME REAR,L (BLACK) *{BODY COLOR:YVB}*
$64.40¢32 200
1
#8-3
47511-25LA0-QU2
COVER,FRAME REAR,L (WHITE) *{BODY COLOR:QU2}*
$62.82¢31 412
1
#16-1
47711-25LA0-Y2W
COVER,FRAME REAR CTR (BLUE) *{BODY COLOR:YU1,YVB}*
$40.56¢20 280
1
#16-2
47711-25LA0-YUD
COVER,FRAME REAR CTR (GRAY) *{BODY COLOR:YVB}*
$44.27¢22 138
1
