REAR SWINGINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

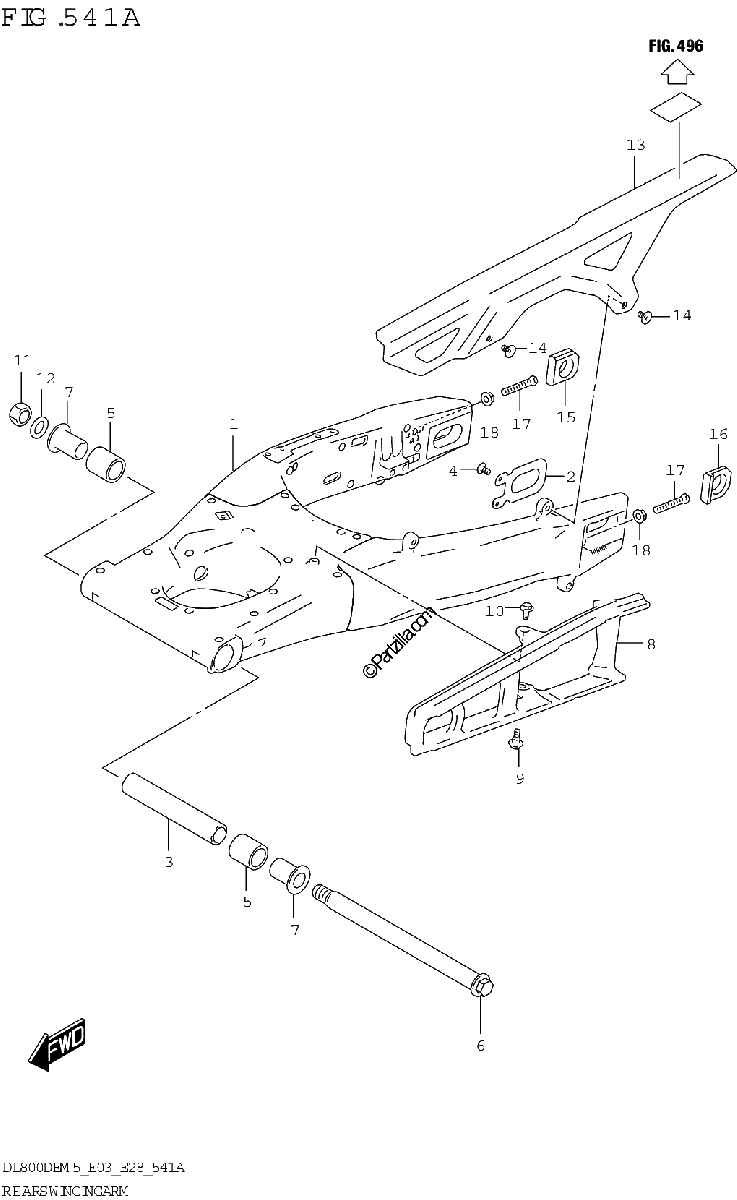

Diagrama de REAR SWINGINGARM

Repuestos

#1
61100-25LA0
SWINGINGARM,REAR
$1193.99¢596 994
1
#2
61124-44G00
PLATE, RR SWING ARM BRKT
$8.11¢4 054
1
#3
61282-25L00
SPACER, RR SWGARM PIVOT CTR
$32.28¢16 140
1
#4
09122-66010
SCREW (6X12)
$1.86¢932
1
#5
09263-25073
.BEARING (25X33X35)
$33.45¢16 727
1
#6
61211-31E00
SHAFT, PIVOT
$159.87¢79 937
1
#7
61251-31E00
SPACER, REAR SWGARM PIVOT
$73.58¢36 788
1
#8
61273-25LB0
BUFFER,CHAIN TOUCH DEFENSE
$71.59¢35 794
1
#9
09111-06072
BOLT (6X17.8)
$2.42¢1 208
1
#10
09116-06205
BOLT (6X16)
$3.25¢1 627
1
#11
09159-18007
NUT
$23.77¢11 885
1
#12
09160-18030
WASHER (18.5X28X2.6)
$3.09¢1 547
1
#13
61310-25L00
CASE, CHAIN
$80.79¢40 394
1
#14
09139-06225
BOLT,CHAIN CASE
$3.36¢1 679
1
#15
61445-28H11
WASHER, CHAIN ADJUSTER RH
$60.46¢30 228
1
#16
61446-35G01
WASHER, CHAIN ADJUSTER LH
$45.46¢22 730
1
#17
09100-08287
BOLT (8X50)
$3.36¢1 679
1
#18
08316-1008A
NUT
$2.96¢1 478
1
