OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

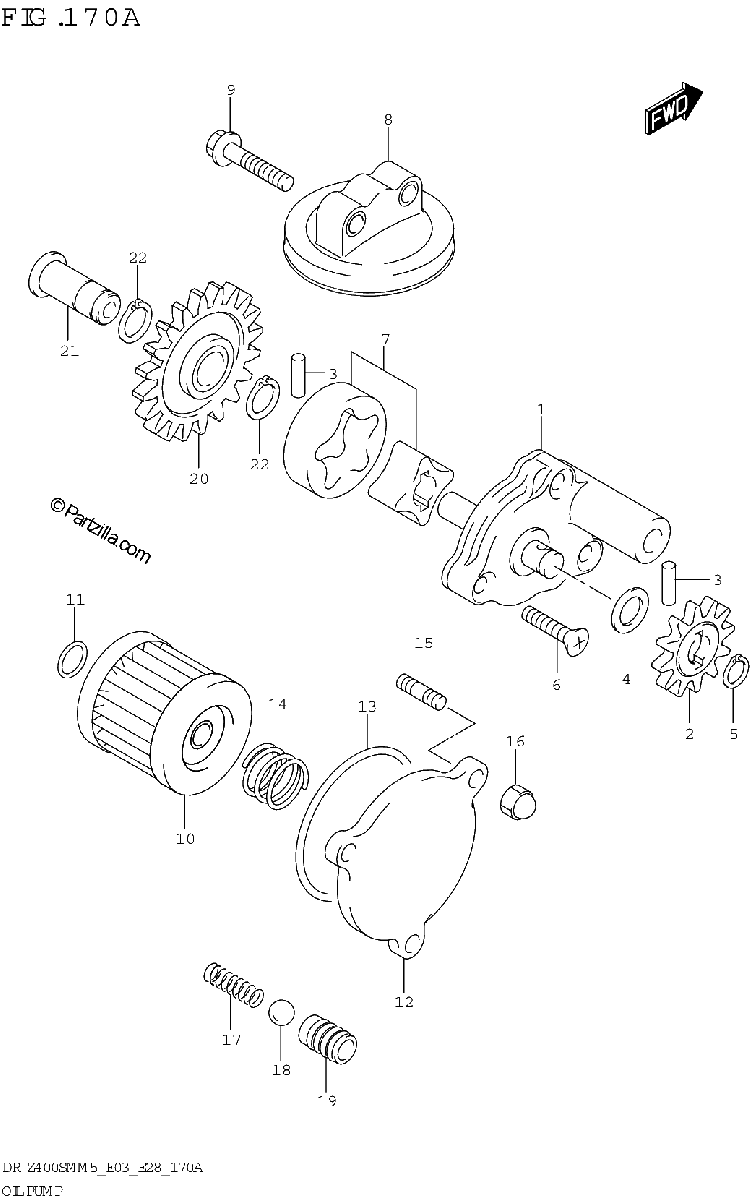

Diagrama de OIL PUMP

Repuestos

#1
16400-29F00
PUMP ASSY, ENGINE OIL NO.1
$186.49¢93 244
1
#2
16331-29F01
GEAR, OIL PUMP DRIVEN (NT:12)
$53.91¢26 956
1
#3
09261-04009
PIN (4X15.8)
$1.95¢975
1
#4
09181-10158
SHIM (10X18X0.5)
$2.56¢1 281
1
#5
08331-31109
CIRCLIP
$2.30¢1 150
1
#6
02122-0625A
SCREW
$1.94¢969
1
#7
16410-29F00
ROTOR SET, OIL PUMP NO.2
$52.67¢26 338
1
#8
16520-29F01
STRAINER, OIL PUMP NO.2
$29.47¢14 737
1
#9
01550-0625A
SCREW
$2.56¢1 281
1
#10
16510-29F00
FILTER, ENGINE OIL
$8.88¢4 438
1
#11
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#12
16512-47E00
CAP, OIL FILTER
$52.65¢26 325
1
#13
09280-54001
.O RING (D:2.4, ID:52.6) | NOT ILLUSTRATED
$4.40¢2 200
1
#14
09440-18002
SPRING
$1.42¢712
1
#15
09108-06123
STUD BOLT
$3.70¢1 850
1
#16
08313-1006A
NUT
$2.39¢1 194
1
#17
09440-07073
SPRING
$5.38¢2 688
1
#18
06111-12004
BALL
$2.54¢1 269
1
#19
16442-29F00
SEAT, OIL CHECK VALVE
$33.33¢16 663
1
#20
16321-29F00
GEAR, OIL PUMP IDLE (NT:20)
$31.61¢15 806
1
#21
16322-29F00
SHAFT, OIL PUMP IDLE GEAR
$26.81¢13 406
1
#22
08331-3112A
CIRCLIP
$2.30¢1 150
1
