CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

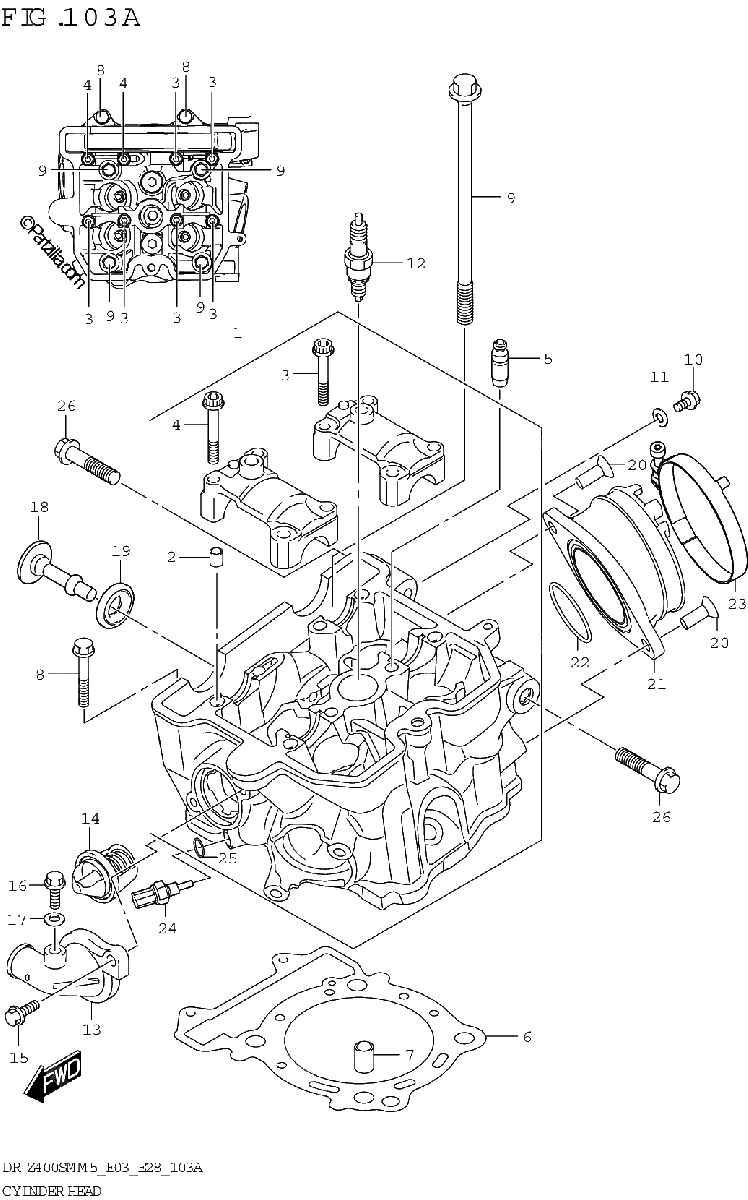

Diagrama de CYLINDER HEAD

Repuestos

#1
11100-37L00
HEAD ASSY,CYLINDER
$904.16¢452 081
1
#2
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#3
07120-0640A
BOLT
$4.00¢2 000
1
#4
07120-0645A
BOLT
$5.04¢2 519
1
#5
11115-45G70
GUIDE, VALVE (OS:0.3) | OPT
$39.56¢19 781
1
#6
11141-29F01
GASKET, CYLINDER HEAD
$49.46¢24 731
1
#7
04211-13189
PIN
$2.85¢1 425
1
#8
09103-06026
.BOLT (6X39)
$2.34¢1 169
1
#9
11117-33H00
BOLT (10X175)
$13.25¢6 625
1
#10
01550-0612A
BOLT
$2.56¢1 281
1
#11
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#13
17661-29F11
COVER,THERMOSTAT
$33.41¢16 706
1
#14
17670-37L00
THERMOSTAT,WATER
$44.79¢22 394
1
#15
01547-0620A
BOLT
$2.63¢1 313
1
#16
17568-50F00
BOLT, THERMOSTAT COVER AIR
$7.56¢3 781
1
#17
09168-06026
GASKET (6.4X11.5X0.8)
$3.65¢1 825
1
#18
11161-33E00
BOLT, CYL HEAD SIDE FACE
$12.14¢6 069
1
#19
11191-13E00
WASHER
$5.42¢2 713
1
#20
02122-0616A
SCREW
$1.86¢931
1
#21
13101-37L00
PIPE ASSY,INTAKE
No Disponible
1
#22
13127-37L00
O-RING,INTAKE PIPE
$6.46¢3 231
1
#23
13170-25L10
CLAMP, INTAKE PIPE
$11.63¢5 813
1
#24
13650-14G00
SENSOR, WATER TEMPERATURE
$63.80¢31 900
1
#25
13655-14G00
.O RING
$12.54¢6 269
1
#26
09103-10342
BOLT (10X32)
$5.91¢2 956
1
#12-1
09482-00556
SPARK PLUG (CR8EIA-9) | OPT
$12.58¢6 288
1
#12-2
09482-00554
SPARK PLUG (CR7EIA-9) | OPT
$13.86¢6 931
1
#12-3
09482-00558
SPARK PLUG (CR9EIA-9) | NGK
$14.06¢7 031
1
