MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

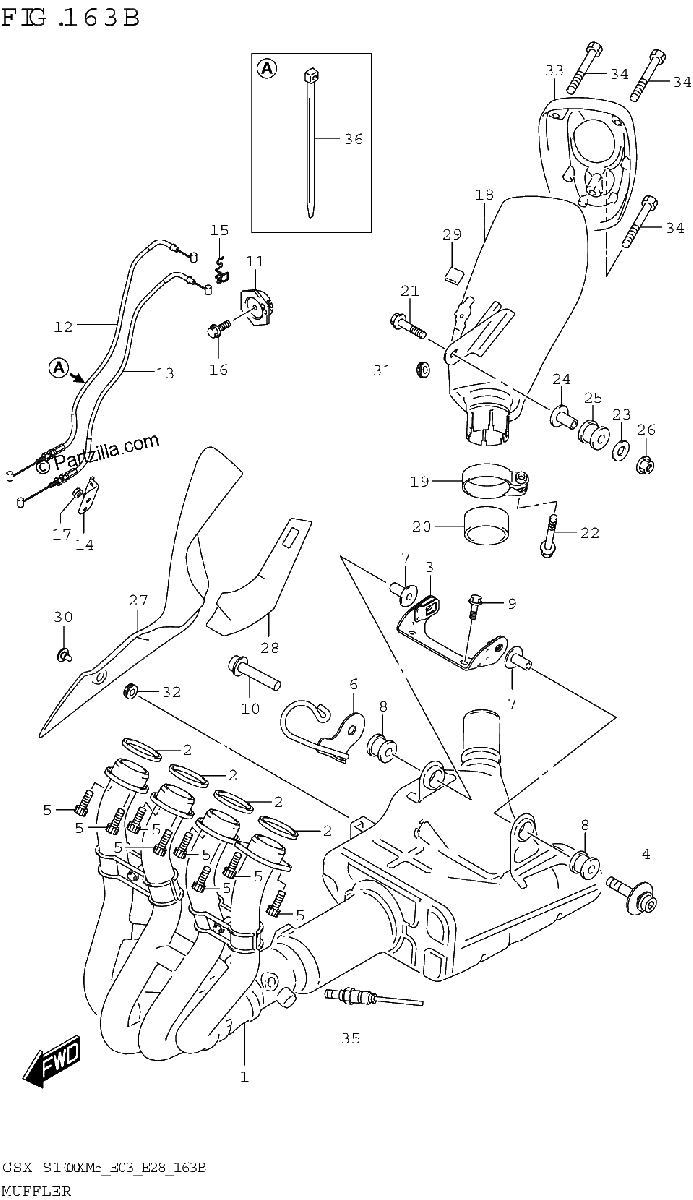

Diagrama de MUFFLER

Repuestos

#1
14100-48K30
EXHAUST
$3666.88¢1 833 438
1
#2
14181-04K00
GASKET, EXHAUST PIPE *{NOT ILLUSTRATED}*
$9.89¢4 944
1
#3
14770-48K00
BRACKET,EXH SPRT
$40.04¢20 019
1
#4
09116-08176
BOLT,EXH CTR SPRT
$9.54¢4 769
1
#5
09106-08178
BOLT (8X25)
$3.88¢1 938
1
#6
14250-48K00
GUIDE COMP,EXH VALVE CABLE
$33.96¢16 981
1
#7
09180-08152
SPACER (8.6X12X24.2)
$6.85¢3 425
1
#8
09320-12077
CUSHION
$14.05¢7 025
1
#9
09135-08007
BOLT
$3.84¢1 919
1
#10
09106-08162
BOLT (8X40)
$6.25¢3 125
1
#11
11269-18G01
PULLEY, CONTROLLER
$38.88¢19 438
1
#12
11276-48K10
CABLE,EXH VALVE NO.1
$57.02¢28 513
1
#13
11277-48K10
CABLE,EXH VALVE NO.2
$57.02¢28 513
1
#14
14250-21H00
BRACKET, EXHAUST VALVE CABLE
$13.38¢6 688
1
#15
14252-14J00
GUIDE, EXHAUST VALVE CABLE
$9.94¢4 969
1
#16
01547-0516A
BOLT
$2.04¢1 019
1
#17
08316-1006A
NUT
$2.85¢1 425
1
#18
14310-48K10-H01
BODY, MUFFLER
$534.09¢267 044
1
#19
14459-47H00
CLAMP
$32.90¢16 450
1
#20
14771-24F01
CONNECTOR
$40.75¢20 375
1
#21
09106-08195
BOLT (8X45)
$8.10¢4 050
1
#22
09106-08162
BOLT (8X40)
$6.25¢3 125
1
#23
09160-08503
WASHER (8.5X30X2.3)
$3.29¢1 644
1
#24
09180-08152
SPACER (8.6X12X24.2)
$6.85¢3 425
1
#25
09320-12048
CUSHION
$6.01¢3 006
1
#26
08316-1008A
NUT
$3.21¢1 606
1
#27
14780-48K50
COVER,MUF FR
$285.35¢142 675
1
#28
14784-48K00
SHIELD, MUF COVER HEAT FR
No Disponible
1
#29
14795-10FA0
.GROMMET
$6.85¢3 425
1
#30
09139-06128
SCREW (6X12)
$6.78¢3 388
1
#31
09320-04011
CUSHION,MUF COVER
$8.15¢4 075
1
#32
09320-08066
CUSHION
$9.69¢4 844
1
#33
14791-04K22
COVER, MUF RR
$116.04¢58 019
1
#34
09116-06528
BOLT
$6.38¢3 188
1
#35
18213-25L00
SENSOR,OXYGEN
$279.52¢139 763
1
#36
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
