WIRING HARNESS E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

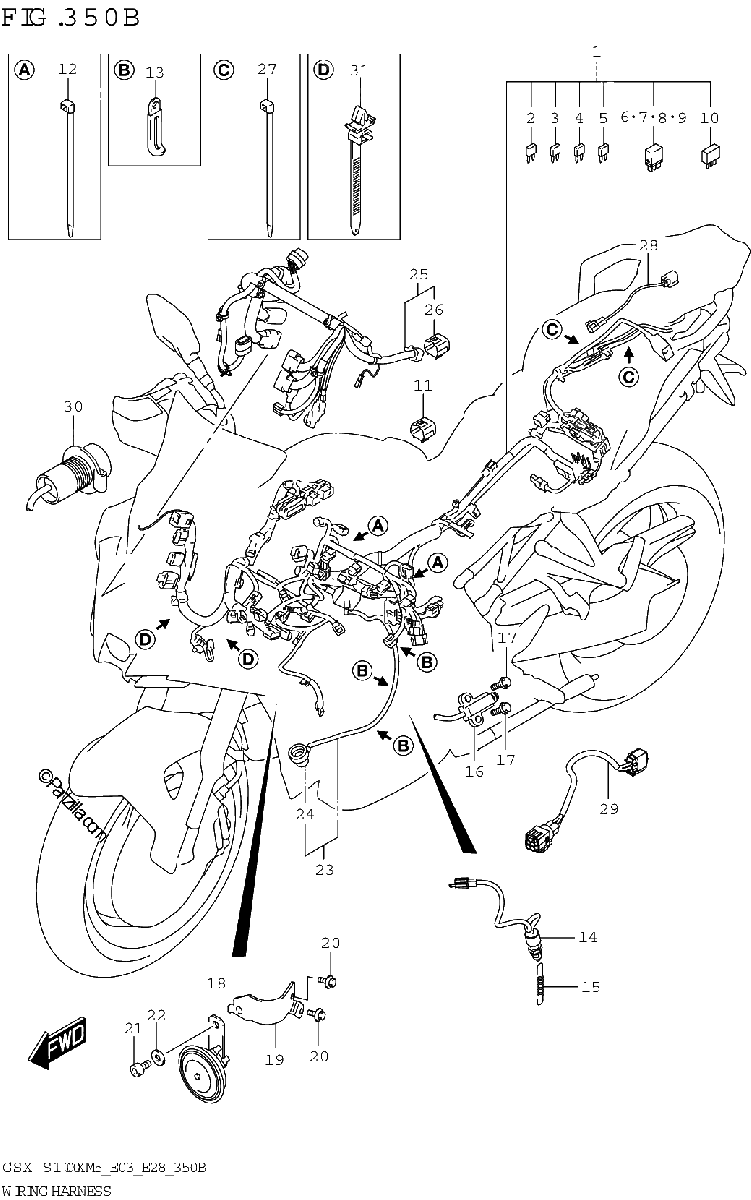

Diagrama de WIRING HARNESS E33

Repuestos

#1
36610-48KF0
HARNESS,WIRING
No Disponible
1
#2
09481-01501
FUSE
$4.46¢2 231
1
#3
09481-10504
.FUSE (10A)
$2.66¢1 331
1
#4
09481-15504
.FUSE (15A)
$3.10¢1 550
1
#5
09481-20504
.FUSE (20A)
$2.52¢1 263
1
#6
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#7
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#8
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#9
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#10
36611-38A10
.DIODE
$16.14¢8 069
1
#11
36654-28K00
CAP,OBD CONNECTOR
$11.78¢5 888
1
#12
09407-20405
CLAMP (L:202)
$5.46¢2 731
1
#13
36651-07L00
CLAMP,OIL PRESS LEAD
$18.79¢9 394
1
#14
37740-48K01
SWITCH ASSY,STOP LAMP
$102.03¢51 013
1
#15
43232-48K00
SPRING, BRAKE LAMP SWITCH
$2.84¢1 419
1
#16
37840-48K00
SWITCH ASSY,SIDE STAND
$135.04¢67 519
1
#17
01550-0620A
BOLT
$2.56¢1 281
1
#18
38500-48K00
HORN ASSY
$53.40¢26 700
1
#19
38590-04K10
PLATE, HORN
$18.06¢9 031
1
#20
09116-06006
BOLT (6X16)
$2.45¢1 225
1
#21
07130-0812A
BOLT
$4.88¢2 438
1
#22
09160-08127
WASHER
$2.78¢1 388
1
#23
36851-48K00
WIRE,OIL PRESSURE SWITCH LEAD
$21.52¢10 763
1
#24
36618-31J00
.CAP, OIL PRESSURE SWITCH
No Disponible
1
#25
36620-48KC0
HARNESS,WIRING NO.2
$416.88¢208 438
1
#26
36654-06J01
CAP,TS
$18.69¢9 344
1
#27
09407-19401
CLAMP (L:190)
$4.00¢2 000
1
#28
36853-48KA0
WIRE,REAR COMB LAMP LEAD
$26.81¢13 406
1
#29
36854-48KA0
WIRE,INERTIAL SENSOR LEAD
$40.38¢20 188
1
#30
39105-48K00
SOCKET,USB
$129.21¢64 606
1
#31
09407-11402
CLAMP (L:90)
$2.36¢1 181
1
