FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

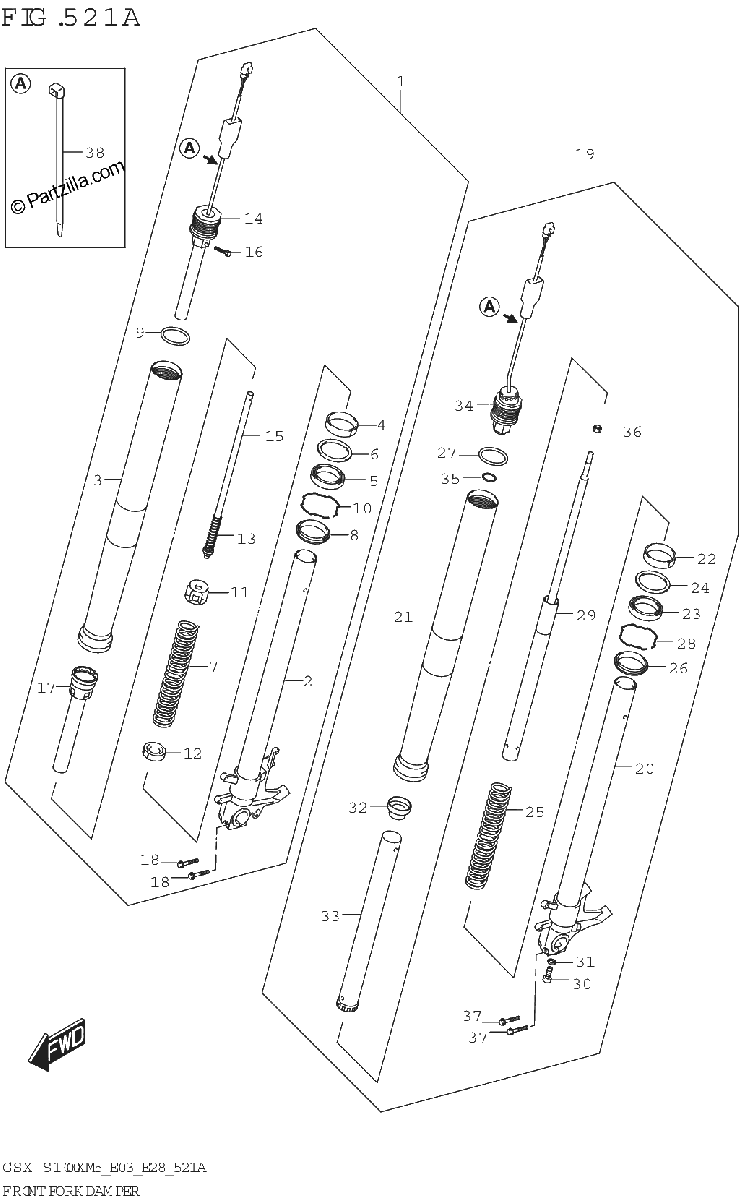

Diagrama de FRONT FORK DAMPER

Repuestos

#1
51103-48KE0
DAMPER ASSY,R
$1814.85¢907 425
1
#2
51110-48KE0
TUBE,INNER,R
$630.14¢315 071
1
#3
51131-48KE0
TUBE,OUTER
$543.34¢271 670
1
#4
51152-47H00
.BUSH, GUIDE
$15.58¢7 791
1
#5
51153-27G00
.OIL SEAL
$25.31¢12 656
1
#6
51168-29G00
.SPACER, SEAL
$9.52¢4 761
1
#7
51171-48KE0
SPRING,FR
$56.66¢28 330
1
#8
51173-48KE0
SEAL DUST
$22.14¢11 069
1
#9
51187-47H00
..O RING
$7.81¢3 904
1
#10
51556-38B00
.RING
$7.92¢3 962
1
#11
51175-48KE0
SPRING SEAT
$3.71¢1 857
1
#12
51176-48KE0
COLLAR SPRING
$16.53¢8 263
1
#13
51177-48KE0
REBOUND SPRING
$8.05¢4 025
1
#14
51790-48KE0
BOLT,FORK R
$443.99¢221 996
1
#15
51791-48KE0
ROD
$92.44¢46 218
1
#16
51792-48KE0
BOLT
$33.38¢16 692
1
#17
51793-48KE0
ROD COVER
$185.53¢92 765
1
#18
51328-44HB0
BOLT,BRACKET UPPER
$5.52¢2 760
1
#19
51104-48KE0
DAMPER ASSY,L
$2460.05¢1 230 023
1
#20
51120-48KE0
TUBE,INNER,L
$603.73¢301 864
1
#21
51131-48KE0
TUBE,OUTER
$543.34¢271 670
1
#22
51152-47H00
.BUSH, GUIDE
$15.58¢7 791
1
#23
51153-27G00
.OIL SEAL
$25.31¢12 656
1
#24
51168-29G00
.SPACER, SEAL
$9.52¢4 761
1
#25
51171-48KE0
SPRING,FR
$56.66¢28 330
1
#26
51173-48KE0
SEAL DUST
$22.14¢11 069
1
#27
51187-47H00
..O RING
$7.81¢3 904
1
#28
51556-38B00
.RING
$7.92¢3 962
1
#29
51128-48KE0
DAMPER SUB
$514.22¢257 111
1
#30
51147-06F10
.BOLT
$7.44¢3 720
1
#31
51148-31030
.GASKET
$3.91¢1 955
1
#32
51178-48KE0
SPRING SEAT STOPPER
$45.06¢22 528
1
#33
51198-48KE0
COLLAR SPRING
$37.87¢18 935
1
#34
51700-48810
SOLENOID SET,FR FORK
$879.21¢439 605
1
#35
51774-48KE0
O-RING
$2.56¢1 282
1
#36
51827-27E00
.NUT
No Disponible
1
#37
51328-44HB0
BOLT,BRACKET UPPER
$5.52¢2 760
1
#38
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
