FRAME BODY COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

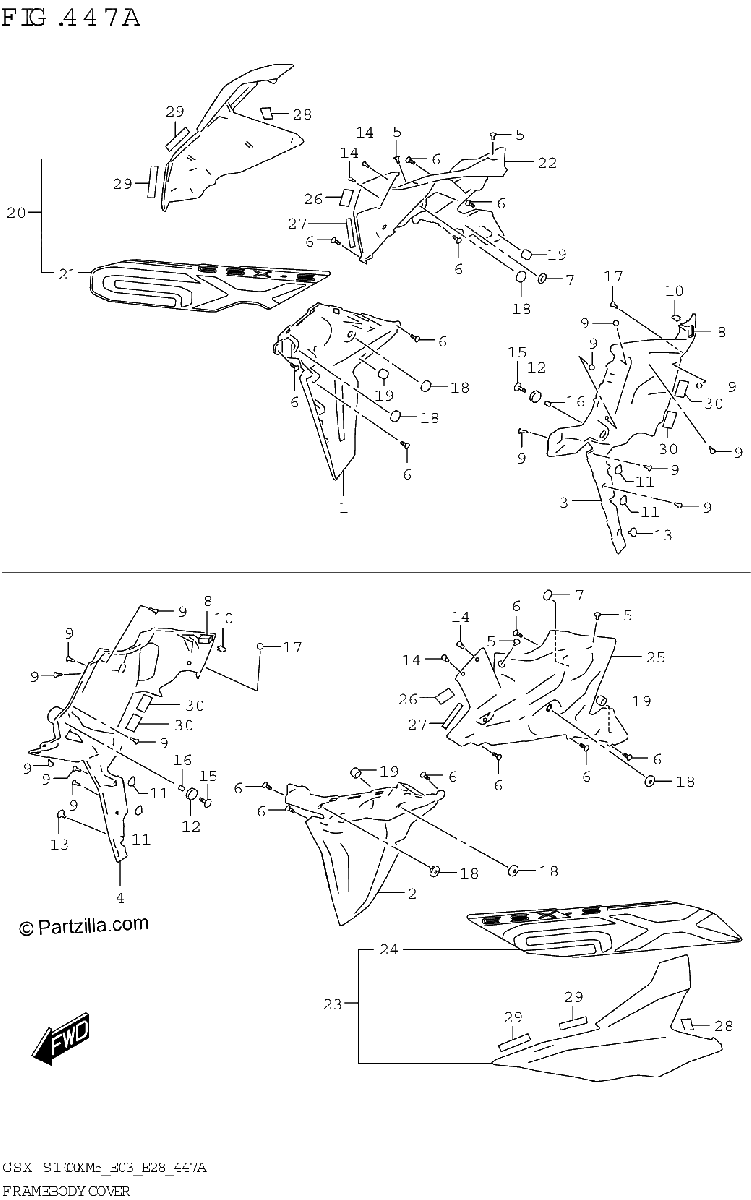

Diagrama de FRAME BODY COVER

Repuestos

#1
94472-48K20
COWLING,SIDE LOWER,R
$97.46¢48 731
1
#2
94482-48K20
COWLING,SIDE LOWER,L
$97.46¢48 731
1
#3
94461-48K20
COWLING,SIDE INNER,R
$101.66¢50 830
1
#4
94462-48K20
COWLING,SIDE INNER,L
$101.66¢50 830
1
#5
09139-05108
SCREW,KNUCKLE COVER
$1.17¢586
1
#6
03541-0516A
SCREW
$1.64¢822
1
#7
09320-06026
CUSHION
$4.94¢2 472
1
#8
36652-04K00
CUSHION
$3.24¢1 621
1
#9
09409-06314
CLIP
$3.31¢1 656
1
#10
09148-05052
NUT
$3.65¢1 823
1
#11
09329-18001
CUSHION
$2.27¢1 133
1
#12
45148-04K00
.CUSHION
$8.03¢4 013
1
#13
94479-35F00
CLIP
$6.16¢3 082
1
#14
09139-05103
SCREW
$3.28¢1 639
1
#15
09136-06159
SCREW
$2.21¢1 104
1
#16
09180-06264
SPACER (6.5X9X10.5)
$3.16¢1 581
1
#17
09136-06002
SCREW (6X12)
$2.64¢1 322
1
#18
09320-08028
CUSHION
$3.36¢1 679
1
#19
09329-12006
CUSHION
$2.30¢1 150
1
#22
94471-48K20-YKV
COWLING,SIDE UPPER,R (BLACK)
$264.70¢132 348
1
#25
94481-48K20-YKV
COWLING,SIDE UPPER,L (BLACK)
$264.70¢132 348
1
#26
45516-01H00
.CUSHION
$6.59¢3 295
1
#27
53112-06L00
CUSHION,SIDE COWL UPR NO.2
$4.14¢2 070
1
#28
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.09¢2 047
1
#29
94675-07L10
CUSHION (6X25X1)
$2.44¢1 219
1
#30
44894-24A00
.CUSHION
$2.13¢1 064
1
#20-1
94470-48K10-QKA
COWLING,SIDE OUTER,R (SILVER) *{BODY COLOR:YSF}*
$232.16¢116 081
1
#20-2
94470-48K10-YLF
COWLING,SIDE OUTER,R (GRAY) *{BODY COLOR:YVB}*
$232.16¢116 081
1
#20-3
94470-48K10-QEB
COWLING,SIDE OUTER,R (GRAY) *{BODY COLOR:YYG}*
$246.62¢123 309
1
#21-1
68131-48K20-CJJ
EMBLEM,SIDE COWLING OUTER,R BLACK,ORANGE,SILVER) *{BODY COLOR:YSF}*
$25.84¢12 920
1
#21-2
68131-48K20-CJK
EMBLEM,SIDE COWLING OUTER,R SILVER,RED,GRAY) *{BODY COLOR:YVB}*
$25.84¢12 920
1
#21-3
68131-48K20-CJM
EMBLEM,SIDE COWLING OUTER,R *{BODY COLOR:YYG}*
$27.46¢13 731
1
#23-1
94480-48K10-QKA
COWLING,SIDE OUTER,L (SILVER) *{BODY COLOR:YSF}*
$259.42¢129 708
1
#23-2
94480-48K10-YLF
COWLING,SIDE OUTER,L (GRAY) *{BODY COLOR:YVB}*
$232.16¢116 081
1
#23-3
94480-48K10-QEB
COWLING,SIDE OUTER,L (GRAY) *{BODY COLOR:YYG}*
$246.62¢123 309
1
#24-1
68141-48K20-CJJ
EMBLEM,SIDE COWLING OUTER,L BLACK,ORANGE,SILVER) *{BODY COLOR:YSF}*
$25.84¢12 920
1
#24-2
68141-48K20-CJK
EMBLEM,SIDE COWLING OUTER,L SILVER,RED,GRAY) *{BODY COLOR:YVB}*
$25.84¢12 920
1
#24-3
68141-48K20-CJM
EMBLEM,SIDE COWLING OUTER,L *{BODY COLOR:YYG}*
$27.46¢13 731
1
