FUEL TANK VL800

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

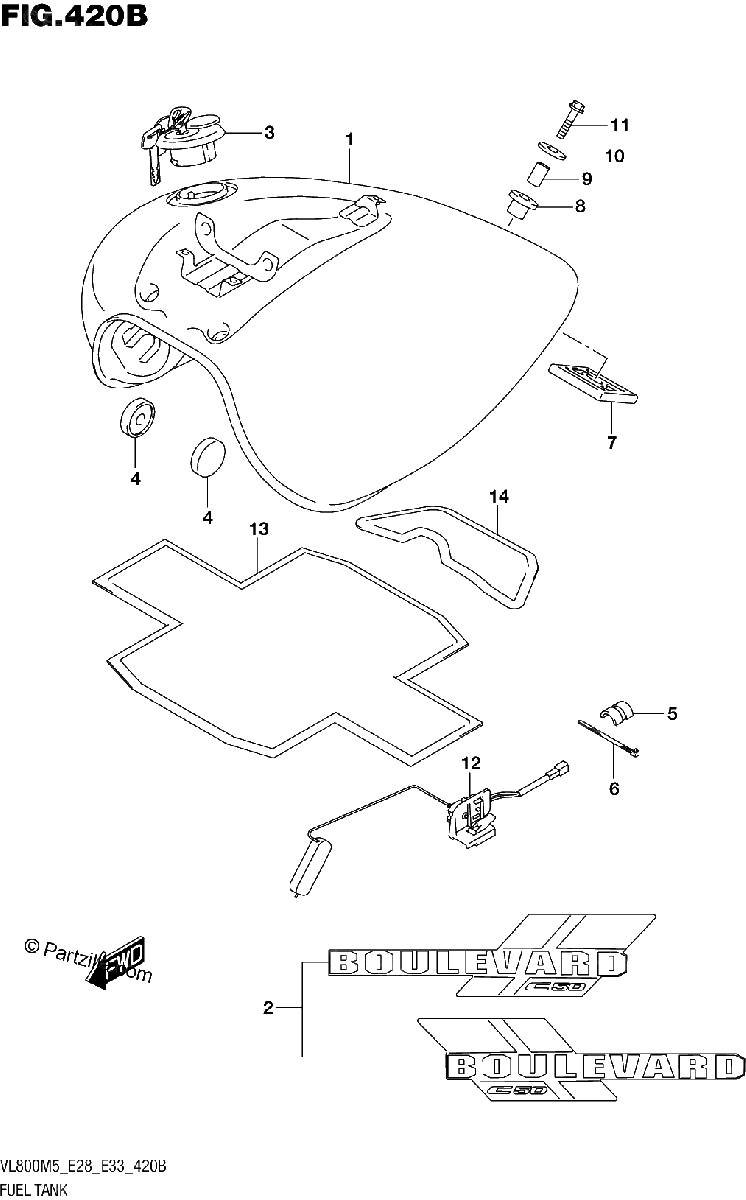

Diagrama de FUEL TANK VL800

Repuestos

#3
44200-41841
CAP SET,FUEL TANK FILLER
$149.21¢74 606
1
#4
09329-10026
CUSHION
$2.49¢1 244
1
#5
44541-14F11
CUSHION,FUEL TANK LWR
$5.65¢2 825
1
#6
09407-20405
CLAMP (L:202)
$5.46¢2 731
1
#7
44542-41F01
CUSHION,FUEL TANK RR LWR
$10.45¢5 225
1
#8
44541-41F02
CUSHION,FUEL TANK REAR UPPER
$6.47¢3 238
1
#9
09180-08227
MUFF CUSHION SP
$2.70¢1 350
1
#10
09160-08140
WASHER (8.5X33X1.6)
$1.36¢681
1
#1-1
44100-43H50-YUD
TANK ASSY,FUEL (GRAY) *{BODY COLOR:YUD}*
$1322.04¢661 019
1
#11
01550-0835A
BOLT
$3.65¢1 825
1
#1-2
44100-43H50-YYG
TANK ASSY,FUEL (RED) *{BODY COLOR:YYG}*
$1299.66¢649 831
1
#12
34810-41F11
GUAGE ASSY, FUEL TANK
$145.78¢72 888
1
#13
44192-39G00
SHIELD, HEAT NO.1
$200.65¢100 325
1
#14
44191-43H00
SHIELD, HEAT NO.2
$118.41¢59 206
1
#2-1
68110-43H10-B89
.EMBLEM SET,FUEL TANK *{BODY COLOR:YUD}*
$63.35¢31 675
1
#2-2
68110-43H10-B9A
.EMBLEM SET,FUEL TANK *{BODY COLOR:YYG}*
$63.35¢31 675
1
