CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

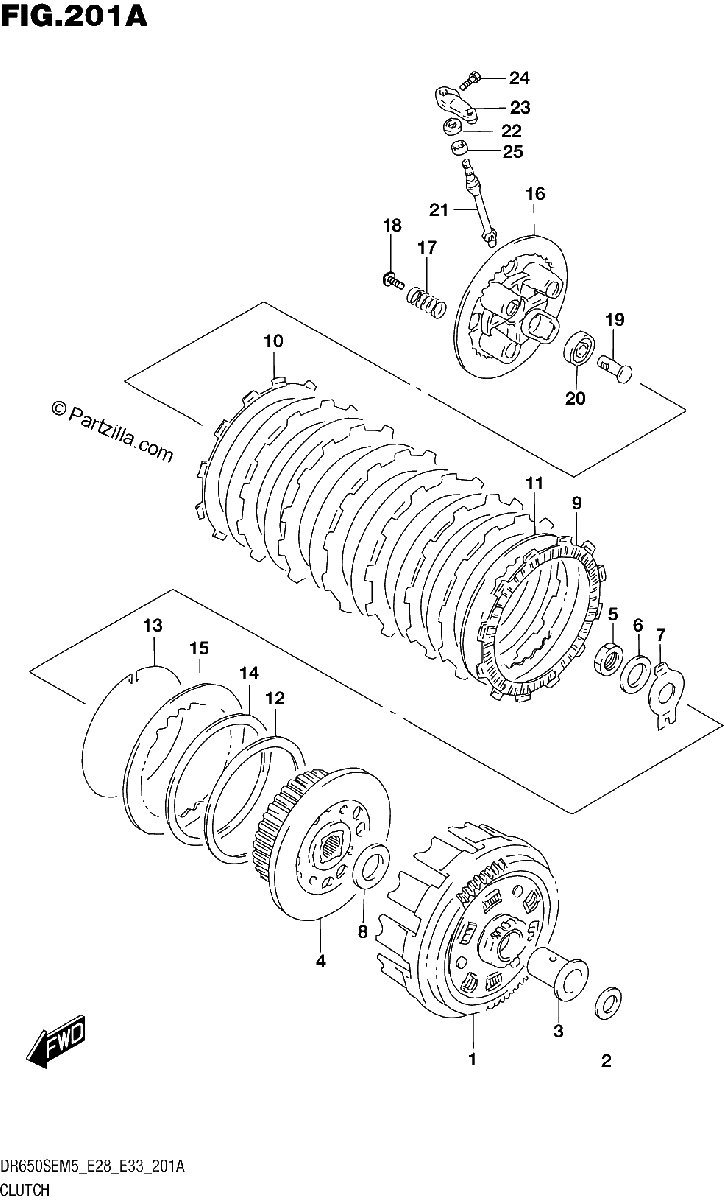

Diagrama de CLUTCH

Repuestos

#1
21200-44B21
GEAR, PRIMARY (NT:20/61)
$512.78¢256 392
1
#2
09160-22032
WASHER (22X32X3)
$6.44¢3 220
1
#3
21251-32E00
SPACER
$32.74¢16 370
1
#4
21410-44B00
HUB, SLEEVE
$178.74¢89 372
1
#5
09140-20001
NUT
$3.65¢1 823
1
#6
09164-20002
WASHER
$3.99¢1 995
1
#7
09169-20005
WASHER
$3.27¢1 633
1
#8
09160-22068
WASHER (22X44X2)
$11.78¢5 888
1
#9
21441-31D00
PLATE, DRIVE (T:3.0)
$29.49¢14 743
1
#10
21441-44B01
PLATE, DRIVE (T:3.0)
$24.71¢12 357
1
#11
21451-44B00
PLATE, DRIVEN, NO.1 (T:1.6)
$11.73¢5 865
1
#12
21471-49100
SEAT, WAVE WASHER
$10.73¢5 365
1
#13
21481-45100
RING, WAVE WASHER STOPPER
$6.35¢3 174
1
#14
09164-00003
WASHER
$13.90¢6 952
1
#15
21451-49200
PLATE, DRIVEN NO.2 (T:2.0)
$10.75¢5 376
1
#16
21462-31D00
DISC, PRESSURE
$71.28¢35 638
1
#17
09440-20016
SPRING
$5.67¢2 835
1
#18
09116-06168
BOLT (6X16)
$2.99¢1 495
1
#19
23165-31D00
RACK, RELEASE
$31.99¢15 997
1
#20
08150-62007
BEARING
$23.92¢11 960
1
#21
23261-32E00
PINION, RELEASE
$71.62¢35 811
1
#22
09285-10004
OIL SEAL (10X17X5)
$3.65¢1 823
1
#23
23271-31D00
ARM, RELEASE
$52.73¢26 364
1
#24
01500-0616A
BOLT
$2.12¢1 058
1
#25
09263-12024
BEARING (12X16X10)
$13.71¢6 854
1
