ENGINE COVER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

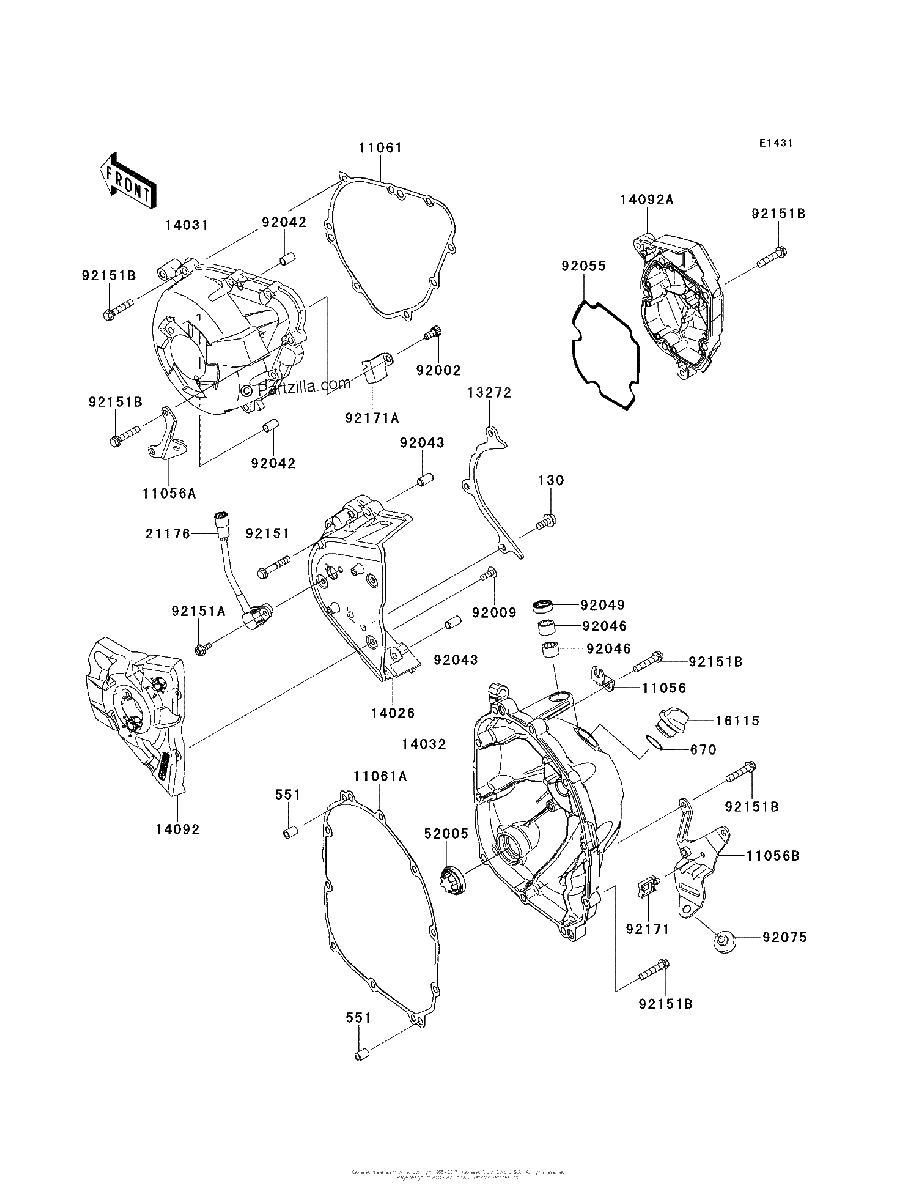

Diagrama de ENGINE COVER S

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#551
551A0814
PIN-DOWEL,8X14
$1.21¢606
1
#670
670B2020
O RING,20MM
$1.26¢631
1
#11056A
11056-0788
BRACKET
$6.99¢3 494
1
#11056
11056-0787
BRACKET
$4.09¢2 044
1
#11056B
11056-1091
BRACKET
$13.85¢6 925
1
#11061A
11061-0404
GASKET,CLUTCH COVER
$26.21¢13 106
1
#11061
11061-0403
GASKET,GENERATOR COVER
$17.31¢8 656
1
#13272
13272-0859
PLATE
$17.30¢8 650
1
#14026
14026-0080
COVER CHAIN
$214.77¢107 387
1
#14031
14031-0131
COVER-GENERATOR
$277.80¢138 900
1
#14032
14032-0140
COVER-CLUTCH
No Disponible
1
#14092A
14092-0175
COVER,PULSER
$70.85¢35 425
1
#14092
14092-0032
COVER,OUTER
$17.14¢8 569
1
#16115
16115-1053
CAP OIL FILLER
$12.09¢6 044
1
#21176
21176-0045
SENSOR,SPEED
$167.85¢83 925
1
#52005
52005-1120
GAUGE
$23.99¢11 994
1
#92002
92002-1796
BOLT,SOCKET,6X12
$4.65¢2 325
1
#92009
92009-1197
SCREW,TAPPING,5X14
$3.90¢1 950
1
#92042
92042-007
PIN,DOWEL,6.3X8X14
$5.61¢2 806
1
#92043
92043-1263
PIN,6.2X8X14
$0.60¢300
1
#92046
92046-0034
BEARING-NEEDLE,HK1210FM
$15.46¢7 731
1
#92049
92049-1475
SEAL-OIL,CLUTCH RELEASE
$4.16¢2 081
1
#92055
92055-0199
RING-O,PULSER COVER
$9.50¢4 750
1
#92075
92075-005
DAMPER
$4.29¢2 144
1
#92151B
92151-1873
BOLT,6X30
$4.63¢2 313
1
#92151A
92151-1305
BOLT,FLANGED,5X12
$1.56¢781
1
#92151
92151-1135
BOLT,6X35
$4.16¢2 081
1
#92171A
92171-0708
CLAMP
$4.29¢2 144
1
#92171
92171-0290
CLAMP
$3.85¢1 925
1
