ELECTRICAL E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

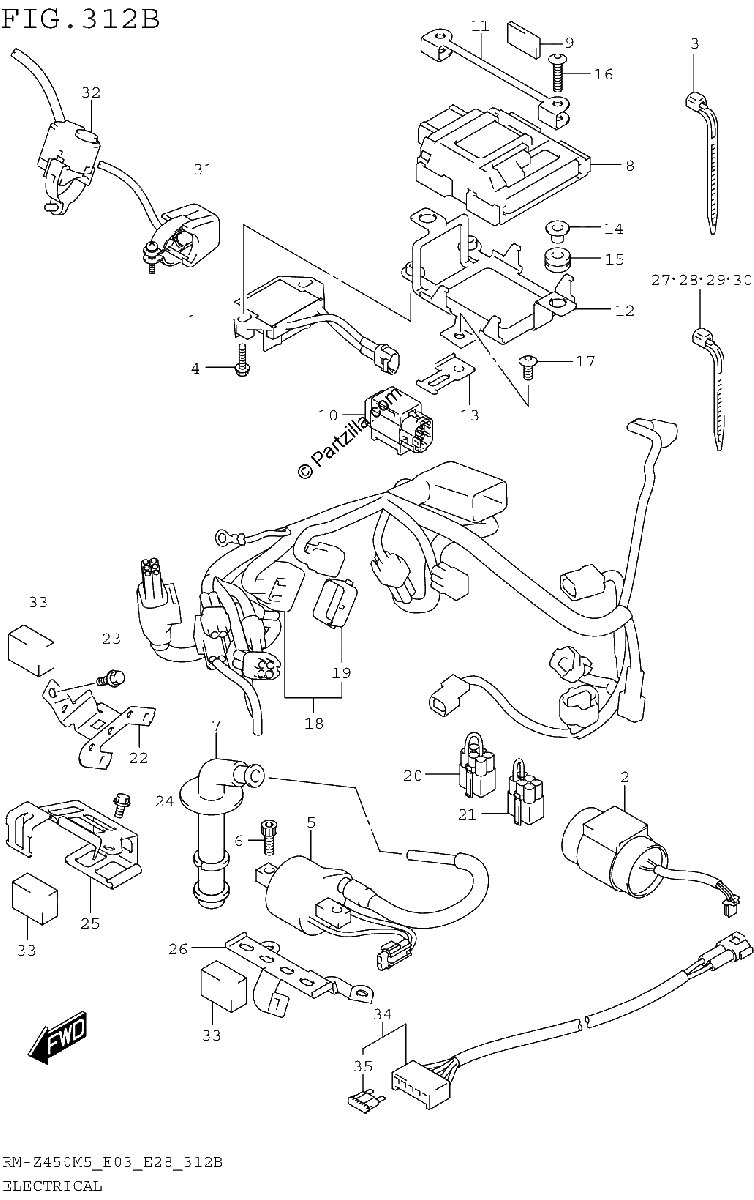

Diagrama de ELECTRICAL E28

Repuestos

#1
32800-28H00
RECTIFIER ASSY
$243.50¢121 750
1
#2
33640-28H00
CONDENSER ASSY
$191.36¢95 681
1
#3
09407-19401
CLAMP (L:190)
$4.00¢2 000
1
#4
01547-0620A
BOLT
$2.63¢1 313
1
#5
33410-28H00
COIL ASSY, IGNITION
$118.01¢59 006
1
#6
09106-06141
BOLT
$3.90¢1 950
1
#7
33510-28H00
CAP ASSY, SPARK PLUG
$80.72¢40 363
1
#8
32920-37K20
CONTROL UNIT,FI
$590.29¢295 144
1
#9
32980-37K00
CUSHION
$5.19¢2 594
1
#10
33960-06G10
SENSOR ASSY, FUEL CUT
$107.21¢53 606
1
#11
32931-37K00
BRACKET, FI CONTROL UNIT UPPE
$51.60¢25 800
1
#12
32932-37K00
BRACKET, FI CONTROL UNIT LOWE
$84.10¢42 050
1
#13
33961-37K00
BRACKET, FUEL CUT SENSOR
$20.50¢10 250
1
#14
09180-06331
.SPACER (6.2X8.4X10.9)
$6.25¢3 125
1
#15
09320-08501
CUSHION
$3.85¢1 925
1
#16
09139-06196
BOLT (6X25)
$2.96¢1 481
1
#17
09139-06215
SCREW
$3.56¢1 781
1
#18
36610-37K10
HARNESS,WIRING
$395.21¢197 606
1
#19
36852-46K00
CAP,TS
No Disponible
1
#20
36852-28H01
WIRE,SHORT
$17.79¢8 894
1
#21
36852-49H01
WIRE,SHORT
$13.67¢6 837
1
#22
36670-37K10
BRACKET, COUPLER
$26.40¢13 200
1
#23
01547-0610A
BOLT
$1.77¢888
1
#24
01547-0612A
BOLT
$2.63¢1 313
1
#25
36672-37K00
BRACKET,COUPLER
$18.71¢9 356
1
#26
36672-37K30
BRACKET, COUPLER
$17.56¢8 781
1
#27
09407-11401
CLAMP (L:95)
$3.46¢1 731
1
#28
09407-10404
CLAMP (L:100)
$3.40¢1 700
1
#29
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#30
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#31
37820-36E00
SWITCH ASSY, ENGINE STOP
$28.91¢14 456
1
#32
37820-37K00
SWITCH ASSY, LAUNCH CONTROL
$179.63¢89 813
1
#33
36652-37K00
CUSHION,HARNESS WIRING
$3.28¢1 638
1
#34
36890-28H00
WIRE, BATTERY | OPT
$62.13¢31 063
1
#35
09481-10101
.FUSE (10A) | OPT
$2.71¢1 356
1
