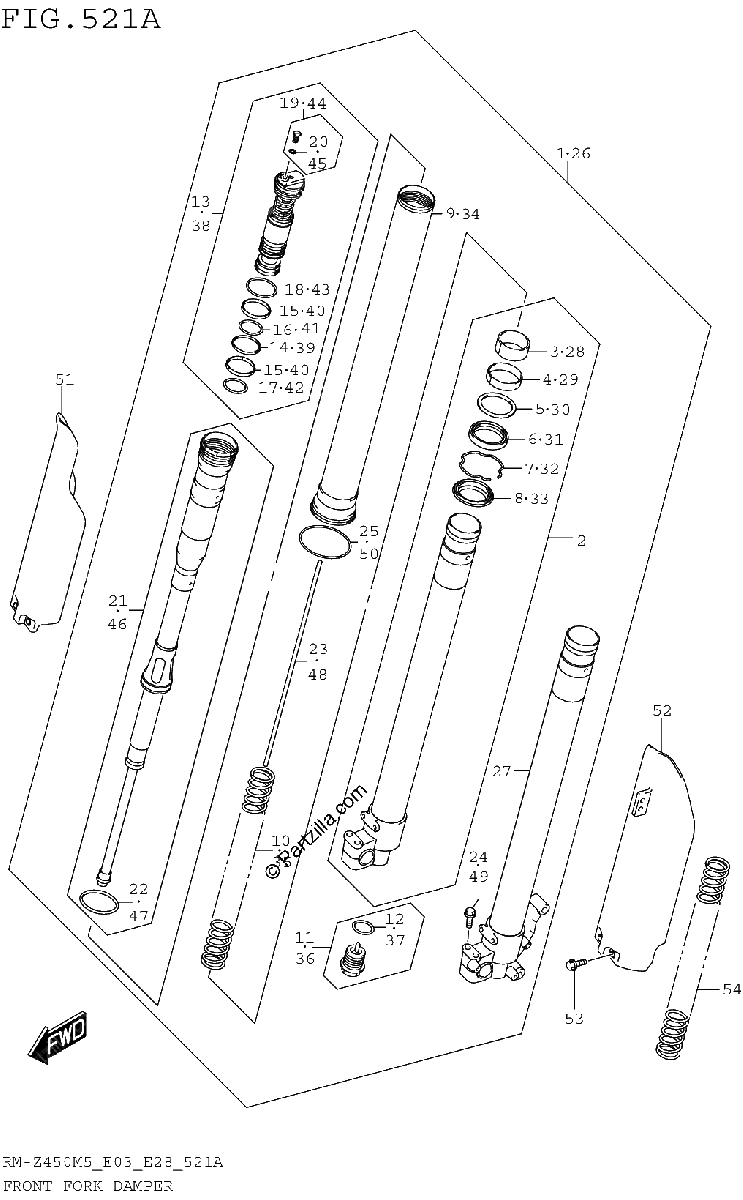

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1817.29¢908 644
#2
.TUBE, INNER RH
$463.52¢231 763
#3
..BUSH, SLIDE
$38.46¢19 231
#4
..BUSH, GUIDE
$37.63¢18 813
#5
..SPACER, SEAL
$12.66¢6 331
#6
..SEAL, OIL
$48.85¢24 425
#7
..RING, OIL SEAL STOPPER
$11.40¢5 700
#8
..SEAL, DUST
$38.69¢19 344
#9
.TUBE, OUTER
$745.69¢372 844
#10
.SPRING, FRONT
$174.48¢87 238
#11
.BOLT, CENTER
$141.40¢70 700
#12
..O RING
$5.27¢2 637
#13
.BOLT, FORK
$663.66¢331 831
#14
..PISTON RING
$6.81¢3 406
#15
..BUSH, FORK BOLT SLIDE
$18.35¢9 175
#16
..O RING
$6.35¢3 175
#17
..O RING
$6.78¢3 388
#18
..O RING
$8.49¢4 244
#19
..BOLT, PLUG
$18.88¢9 438
#20
...O RING
$5.79¢2 894
#21
.DAMPER
$1096.28¢548 138
#22
..O RING
$6.54¢3 269
#23
.ROD, PUSH
$18.35¢9 175
#24
.BOLT
$8.65¢4 325
#25
.RING, STOPPER
$19.03¢9 513
#26
DAMPER ASSY, FRONT FORK LH
$1817.29¢908 644
#27
.TUBE, INNER LH
$454.94¢227 469
#28
..BUSH, SLIDE
$38.46¢19 231
#29
..BUSH, GUIDE
$37.63¢18 813
#30
..SPACER, SEAL
$12.66¢6 331
#31
..SEAL, OIL
$48.85¢24 425
#32
..RING, OIL SEAL STOPPER
$11.40¢5 700
#33
..SEAL, DUST
$38.69¢19 344
#34
.TUBE, OUTER
$745.69¢372 844
#35
.SPRING, FRONT
$174.48¢87 238
#36
.BOLT, CENTER
$141.40¢70 700
#37
..O RING
$5.27¢2 637
#38
.BOLT, FORK
$663.66¢331 831
#39
..PISTON RING
$6.81¢3 406
#40
..BUSH, FORK BOLT SLIDE
$18.35¢9 175
#41
..O RING
$6.35¢3 175
#42
..O RING
$6.78¢3 388
#43
..O RING
$8.49¢4 244
#44
..BOLT, PLUG
$18.88¢9 438
#45
...O RING
$5.79¢2 894
#46
.DAMPER
$1096.28¢548 138
#47
..O RING
$6.54¢3 269
#48
.ROD, PUSH
$18.35¢9 175
#49
.BOLT
$8.65¢4 325
#50
.RING, STOPPER
$19.03¢9 513
#51
PROTECTOR, FRONT FORK RH
$78.40¢39 200
#52
PROTECTOR, FRONT FORK LH
$140.04¢70 019
#53
BOLT (6X10)
$3.98¢1 988
#54-1
.SPRING, FRONT
$174.48¢87 238
#54-2
SPRING, FRONT
$174.48¢87 238
#54-3
SPRING, FRONT
$174.48¢87 238
