REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

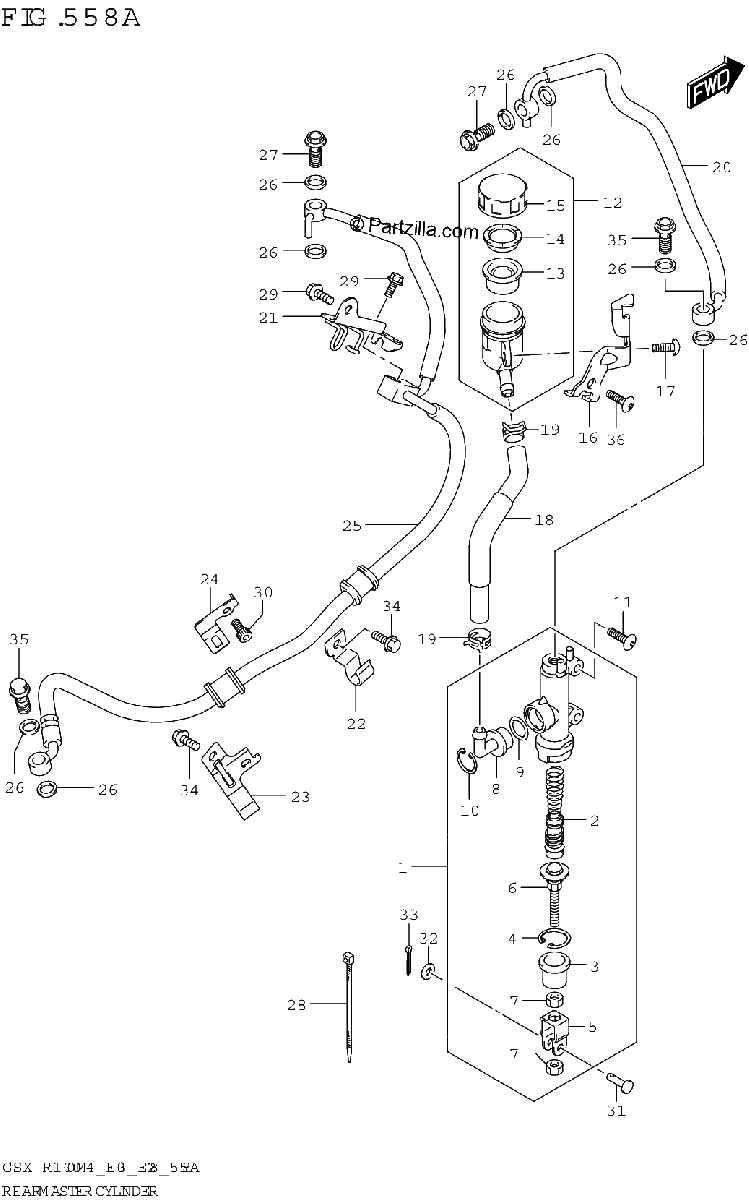

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-47H31
CYLINDER ASSY,REAR MASTER
$297.56¢148 781
1
#2
69600-34810
.PISTON/CAP SET
$76.28¢38 138
1
#3
69691-04A00
BOOT
$6.97¢3 488
1
#4
69665-47H00
.CIRCLIP
$6.78¢3 388
1
#5
69692-47H00
.YOKE
$18.84¢9 419
1
#6
69670-17K00
ROD,PUSH
$23.40¢11 700
1
#7
69693-47H00
.NUT
$3.35¢1 675
1
#8
69672-00B20
.CONNECTOR
$8.36¢4 181
1
#9
69686-34200
.O RING
$3.65¢1 825
1
#10
69674-00B20
.CIRCLIP
$4.86¢2 431
1
#11
09139-06224
BOLT,REAR MASTER CYLINDER
$4.85¢2 425
1
#12
69740-17K00
TANK ASSY, REAR RESERVOIR
$42.88¢21 438
1
#13
59667-33J00
DIAPHRAGM
$7.39¢3 694
1
#14
59668-33J00
PLATE
$4.45¢2 225
1
#15
69669-17K00
CAP
$9.86¢4 931
1
#16
69750-17K00
BRACKET, RR RESERVOIR TANK
$23.91¢11 956
1
#17
09139-06139
SCREW (6X16)
$3.80¢1 900
1
#18
69730-17K00
HOSE, RR RESERVOIR TANK
$20.75¢10 375
1
#19
09401-12412
CLIP
No Disponible
1
#20
69240-17K21
HOSE
$78.25¢39 125
1
#21
69260-17K00
CLAMP, REAR BRAKE HOSE
$27.09¢13 544
1
#22
69268-17K00
CLAMP, REAR BRAKE HOSE
$10.84¢5 419
1
#23
69270-17K00
CLAMP, REAR BRAKE HOSE
$15.31¢7 656
1
#24
69272-17K00
CLAMP, REAR BRAKE HOSE
$6.15¢3 075
1
#25
69480-17K31
HOSE
$154.10¢77 050
1
#26
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#27
09360-10062
UNION
$7.57¢3 787
1
#28
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#29
01547-0612A
BOLT
$2.63¢1 313
1
#30
01547-0612B
BOLT
$1.59¢794
1
#31
09200-06037
PIN
$4.84¢2 419
1
#32
08322-0106A
WASHER
$2.39¢1 194
1
#33
04111-2015A
COTTER PIN
$1.59¢794
1
#34
01547-0612B
BOLT
$1.59¢794
1
#35
09360-10042
UNION
$7.57¢3 787
1
#36
09139-06214
SCREW (6X16)
$3.41¢1 706
1
