WIRING HARNESS GSX S1000RQM4 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

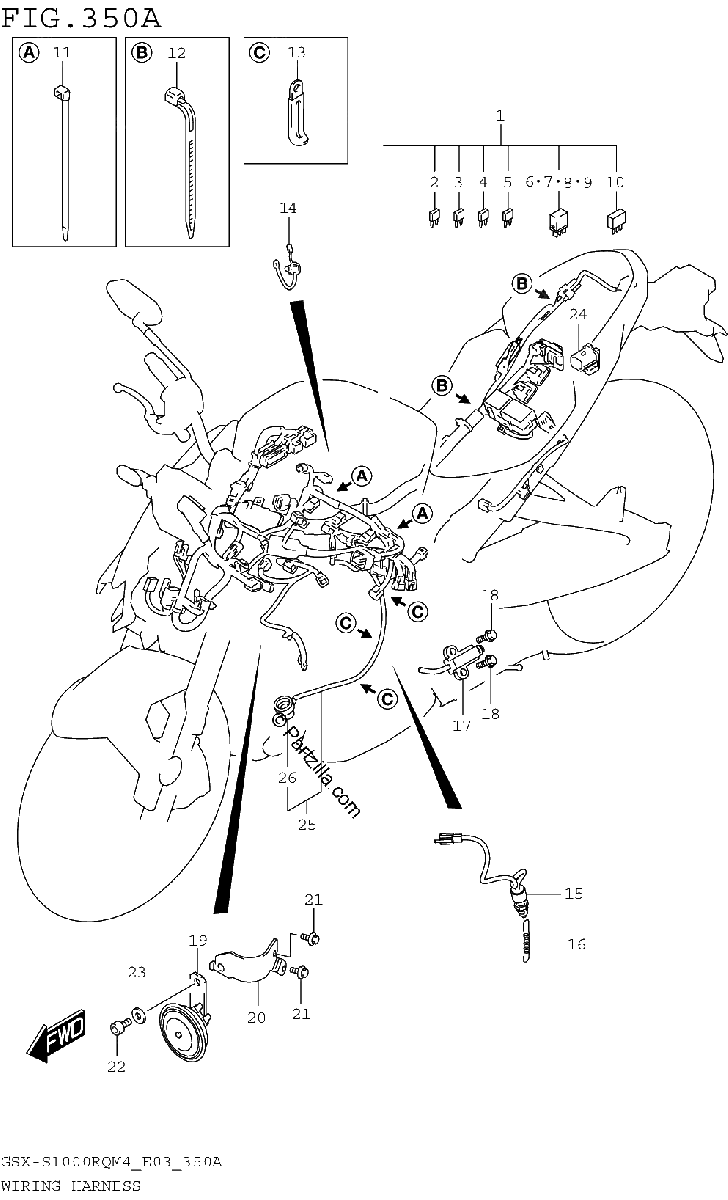

Diagrama de WIRING HARNESS GSX S1000RQM4 E03

Repuestos

#1
36610-48KL0
HARNESS,WIRING
$1126.03¢563 013
1
#2
09481-03501
.FUSE (3A)
$2.96¢1 481
1
#3
09481-10504
.FUSE (10A)
$2.66¢1 331
1
#4
09481-15504
.FUSE (15A)
$3.10¢1 550
1
#5
09481-20504
.FUSE (20A)
$2.52¢1 263
1
#6
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#7
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#8
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#9
38860-76F01
.RELAY ASSY | FOR SIDE STAND
$40.40¢20 200
1
#10
36611-38A10
.DIODE
$16.14¢8 069
1
#11
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#12
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#13
36651-07L00
CLAMP,OIL PRESS LEAD
$18.79¢9 394
1
#14
36852-10L00
WIRE,FAN MOTOR LEAD
$41.46¢20 731
1
#15
37740-31D10
SWITCH ASSY,STOP LAMP
$28.03¢14 013
1
#16
09443-06054
SPRING
$5.04¢2 519
1
#17
37840-48K00
SWITCH ASSY,SIDE STAND
$135.04¢67 519
1
#18
01550-0620A
BOLT
$2.56¢1 281
1
#19
38500-48K00
HORN ASSY
$53.40¢26 700
1
#20
38590-04K10
PLATE, HORN
$18.06¢9 031
1
#21
09116-06006
BOLT (6X16)
$2.45¢1 225
1
#22
07130-0812A
BOLT
$4.88¢2 438
1
#23
09160-08127
WASHER
$2.78¢1 388
1
#24
36654-28K00
CAP,OBD CONNECTOR
$11.78¢5 888
1
#25
36851-48K00
WIRE,OIL PRESSURE SWITCH LEAD
$21.52¢10 763
1
#26
36618-31J00
.CAP, OIL PRESSURE SWITCH
No Disponible
1
