RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

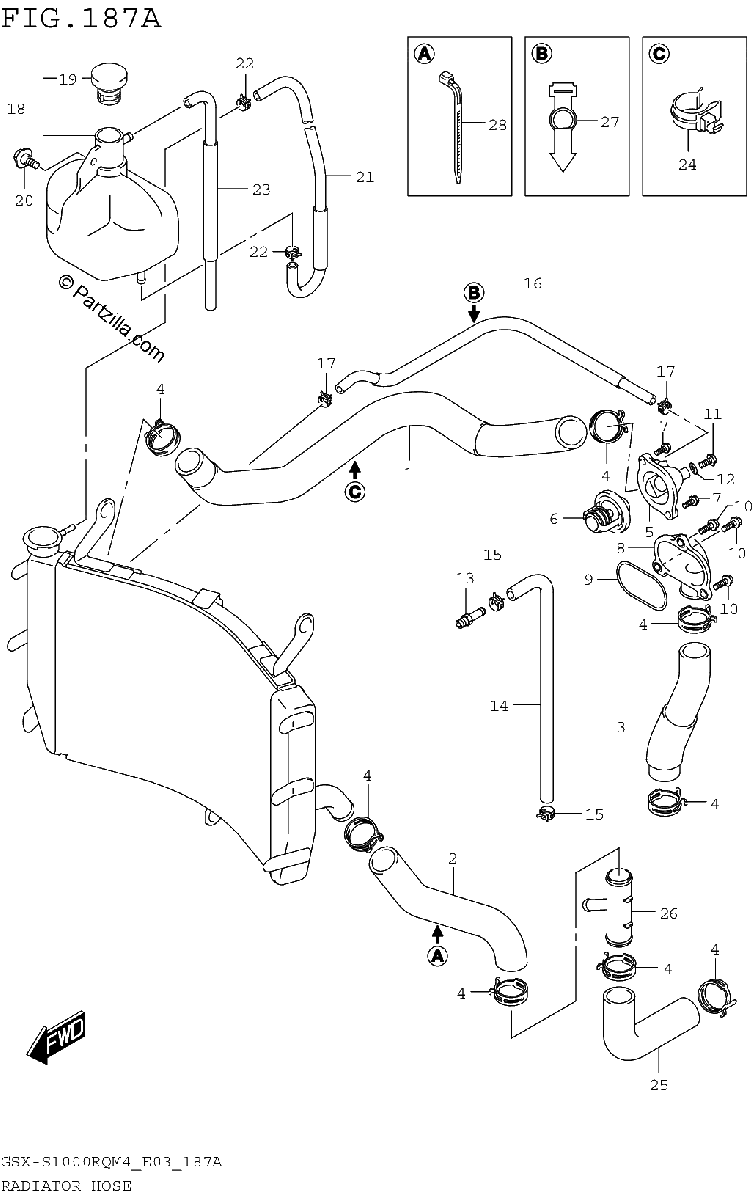

Diagrama de RADIATOR HOSE

Repuestos

#1
17851-04K10
HOSE, RADIATOR INLET
$44.25¢22 125
1
#2
17852-04K00
HOSE, RADIATOR OUTLET
$30.31¢15 156
1
#3
17853-40F10
HOSE, CYLINDER INLET
$28.66¢14 331
1
#4
09401-29001
CLAMP,WATER HOSE
$3.65¢1 825
1
#5
17661-35F00
COVER, THERMOSTAT
$68.44¢34 219
1
#6
17670-06G61
THERMOSTAT,WATER
$30.72¢15 362
1
#7
01547-0620A
BOLT
$2.63¢1 313
1
#8
17861-33E20
CONNECTOR
$26.90¢13 450
1
#9
17863-33E00
O RING
$4.80¢2 400
1
#10
01547-0620A
BOLT
$2.63¢1 313
1
#11
17568-50F00
BOLT, THERMOSTAT COVER AIR
$7.56¢3 781
1
#12
09168-06026
GASKET (6.4X11.5X0.8)
$3.65¢1 825
1
#13
09362-09011
UNION
$9.86¢4 931
1
#14
17854-04K10
HOSE, WATER BYPASS
$17.41¢8 706
1
#15
09401-12414
CLAMP
$3.89¢1 944
1
#16
17857-04K10
HOSE,WATER AIR BLEED
No Disponible
1
#17
09401-10409
CLIP
$2.97¢1 487
1
#18
17910-04K00
TANK ASSY, RESERVOIR
$80.72¢40 363
1
#19
17931-31J00
.CAP
$9.72¢4 863
1
#20
09111-06085
BOLT (6X12)
$5.42¢2 713
1
#21
17981-04K10
HOSE,RSVR TANK INLET
$13.22¢6 613
1
#22
09401-08411
CLIP
$2.30¢1 150
1
#23
17982-04K00
HOSE, RESERVOIR TANK OVER FLO
No Disponible
1
#24
09408-00321
CLAMP
No Disponible
1
#25
17855-04K00
HOSE, RADIATOR OUTLET NO.2
$27.71¢13 856
1
#26
17881-04K00
PIPE, WATER HOSE JOINT
$5.81¢2 906
1
#27
17891-04K00
BAND, WATER HOSE
No Disponible
1
#28
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
