FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

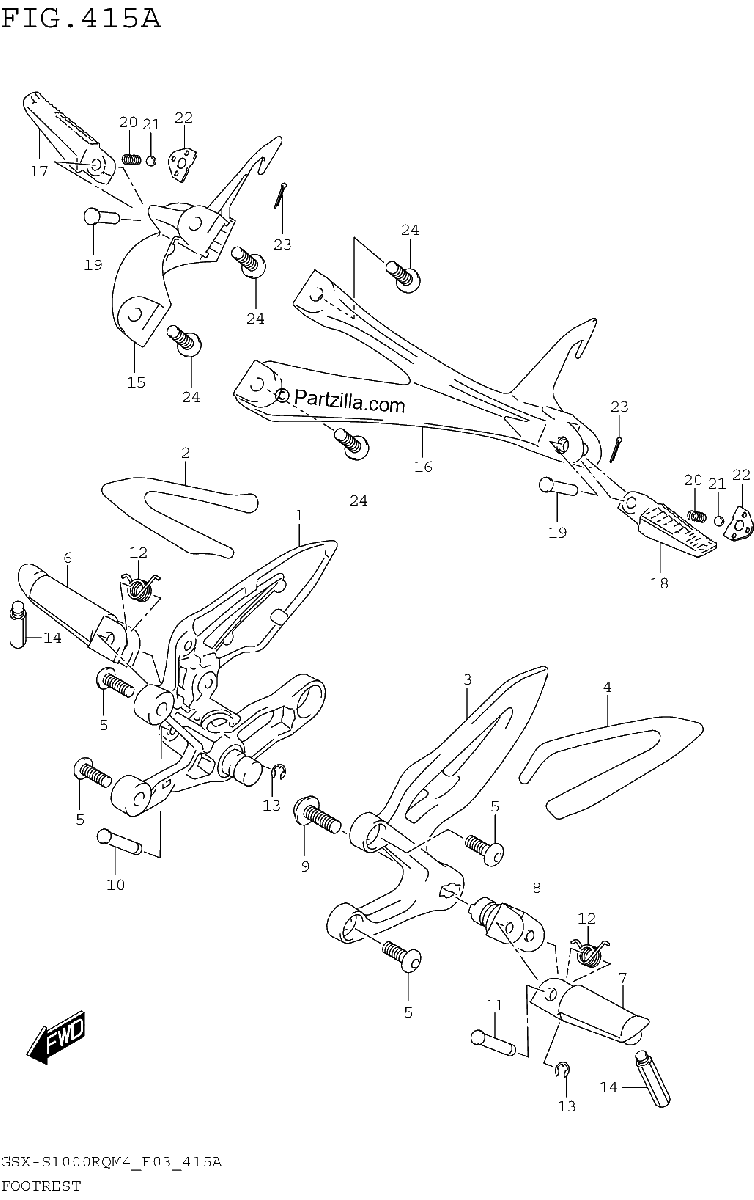

Diagrama de FOOTREST

Repuestos

#1
43510-48K10
BRACKET,FR FOOTREST,R
$149.04¢74 519
1
#2
43571-04K10
TAPE, FRONT FOOTREST RH
$37.00¢18 500
1
#3
43521-04K10
BRACKET, FRONT FOOTREST LH
$153.66¢76 831
1
#4
43572-04K10
TAPE, FRONT FOOTREST LH
$37.75¢18 875
1
#5
09106-08209
BOLT
$3.65¢1 825
1
#6
43516-35F20
BAR, FRONT FOOTREST RH
$56.69¢28 344
1
#7
43526-35F20
BAR, FRONT FOOTREST LH
$56.69¢28 344
1
#8
43540-04K10
HOLDER,FOOTREST,L
$56.10¢28 050
1
#9
09106-10064
BOLT (10X28)
$5.75¢2 875
1
#10
09208-08019
PIN
$3.61¢1 806
1
#11
09208-08018
PIN
$3.61¢1 806
1
#12
43581-48K00
SPRING,FRONT FOOTREST
$4.76¢2 381
1
#13
08332-1106A
.E RING
$1.86¢931
1
#14
43576-48B50
BOLT, BANK SENSOR
$19.16¢9 581
1
#15
43811-04K00
BRACKET ,PILLION FOOTREST RH
$188.28¢94 138
1
#16
43821-04K00
BRACKET ,PILLION FOOTREST LH
$181.38¢90 688
1
#17
43611-37H50
BAR,PILLION FOOTREST,R
$50.10¢25 050
1
#18
43621-37H50
BAR,PILLION FOOTREST,L
$50.10¢25 050
1
#19
09200-08002
PIN
$2.56¢1 281
1
#20
09440-05003
SPRING
$1.93¢963
1
#21
06111-07004
.BALL
$1.59¢794
1
#22
43816-01H30
PLATE,PILLION FOOTREST
$8.28¢4 138
1
#23
04111-2015A
COTTER PIN
$1.59¢794
1
#24
09106-08151
BOLT (8X25)
$4.85¢2 425
1
