AIR CLEANER GSX S1000RQM4 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

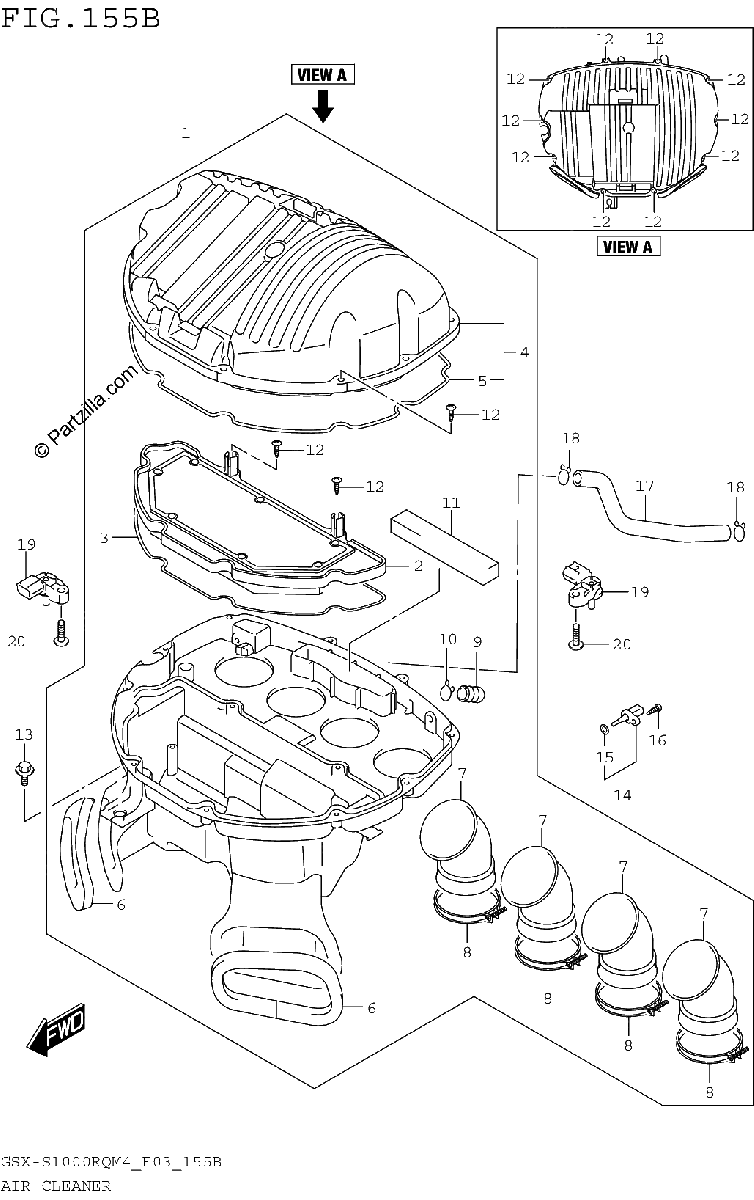

Diagrama de AIR CLEANER GSX S1000RQM4 E28

Repuestos

#1
13700-48K00
CLEANER ASSY,AIR
$366.29¢183 144
1
#2
13780-48K00
.FILTER ASSY
$72.69¢36 344
1
#3
13756-48K00
GASKET FILTER
$20.10¢10 050
1
#4
13740-48K00
CAP,AIR CLEANER
$77.04¢38 519
1
#5
13746-48K00
GASKET,CAP
$23.56¢11 781
1
#6
13736-48K00
CUSHION,DUCT
$11.25¢5 625
1
#7
13881-48K00
.TUBE,OUTLET
$24.96¢12 481
1
#8
13827-40H01
CLAMP, INTAKE PIPE
$20.75¢10 375
1
#9
13878-10G01
PLUG
$4.30¢2 150
1
#10
09401-14301
.CLIP
$2.74¢1 369
1
#11
13788-48K00
FILTER BREATHER
$6.16¢3 081
1
#12
03541-0520A
SCREW
$2.36¢1 181
1
#13
09111-06089
BOLT (6X16)
$3.40¢1 700
1
#14
13650-41F10
SENSOR, AIR TEMP
$85.40¢42 700
1
#15
13655-41F10
.O RING
No Disponible
1
#16
03511-0516A
SCREW
$2.45¢1 225
1
#17
13853-04K01
HOSE,BREATHER
$18.40¢9 200
1
#18
09401-14101
.CLIP
$3.09¢1 544
1
#19
18590-18K10
SENSOR, BOOST
$282.38¢141 188
1
#20
03541-0520A
SCREW
$2.36¢1 181
1
