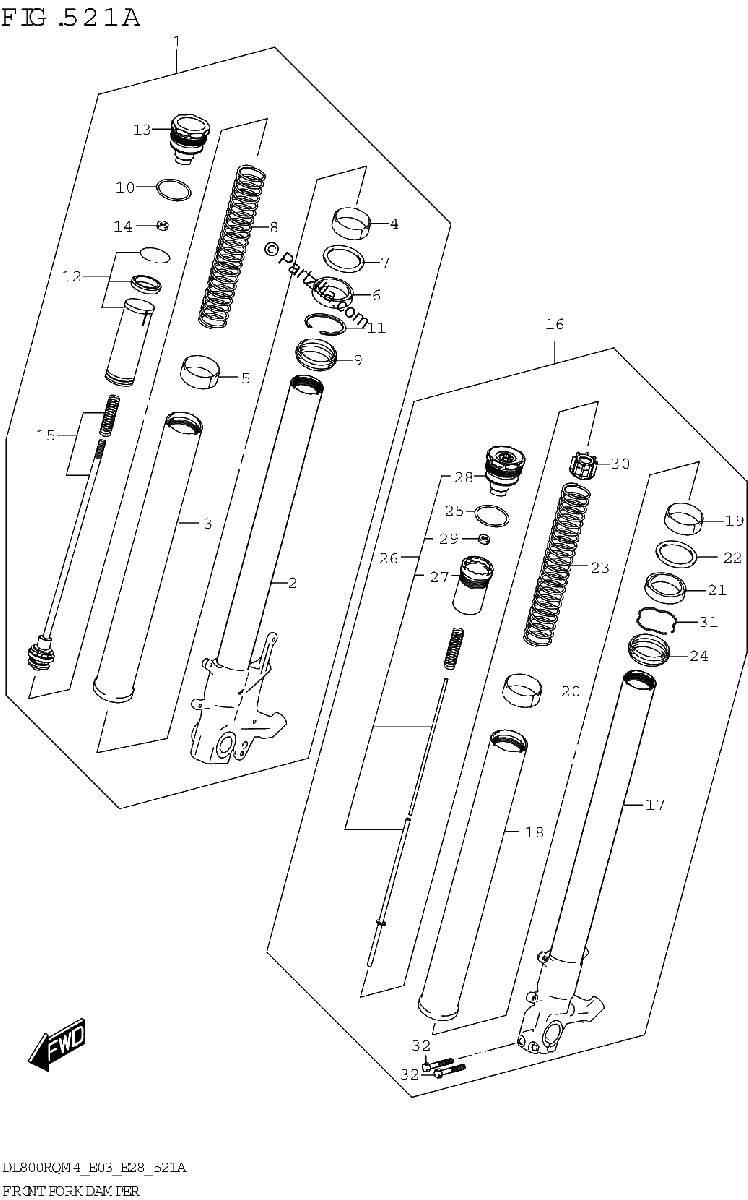

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY,R (BLACK)
$1071.57¢535 785
#2
TUBE,INNER,R (BLACK)
$543.34¢271 670
#3
TUBE,OUTER
$581.07¢290 536
#4
.BUSH, GUIDE
$20.01¢10 005
#5
.BUSH, SLIDE
$15.58¢7 791
#6
.OIL SEAL
$29.52¢14 760
#7
.SPACER, SEAL
$7.34¢3 669
#8
SPRING,FR
$55.64¢27 819
#9
DUST SEAL
$26.16¢13 081
#10
O-RING,JACK
$5.66¢2 829
#11
INTERNAL CIRCLIP
$4.86¢2 432
#12
ROD GUIDE CASE
$85.48¢42 740
#13
BOLT,FORK
$100.20¢50 100
#14
NUT
$4.92¢2 461
#15
PISTON ROD
$156.75¢78 373
#16
DAMPER ASSY,L (BLACK)
$1071.57¢535 785
#17
TUBE,INNER,L (BLACK)
$543.34¢271 670
#18
TUBE,OUTER
$581.07¢290 536
#19
.BUSH, GUIDE
$20.01¢10 005
#20
.BUSH, SLIDE
$15.58¢7 791
#21
.OIL SEAL
$29.52¢14 760
#22
.SPACER, SEAL
$7.34¢3 669
#23
SPRING,FR
$55.64¢27 819
#24
DUST SEAL
$26.16¢13 081
#25
O-RING,JACK
$5.66¢2 829
#26
JOINT ROD
$281.00¢140 501
#27
INNER FORK BOLT
$58.02¢29 009
#28
BOLT,FORK
$177.08¢88 538
#29
..NUT
No Disponible
#30
SPRING SEAT
$25.84¢12 920
#31
.RING
$7.92¢3 962
#32
BOLT,BRACKET UPPER
$5.52¢2 760
