THROTTLE BODY E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

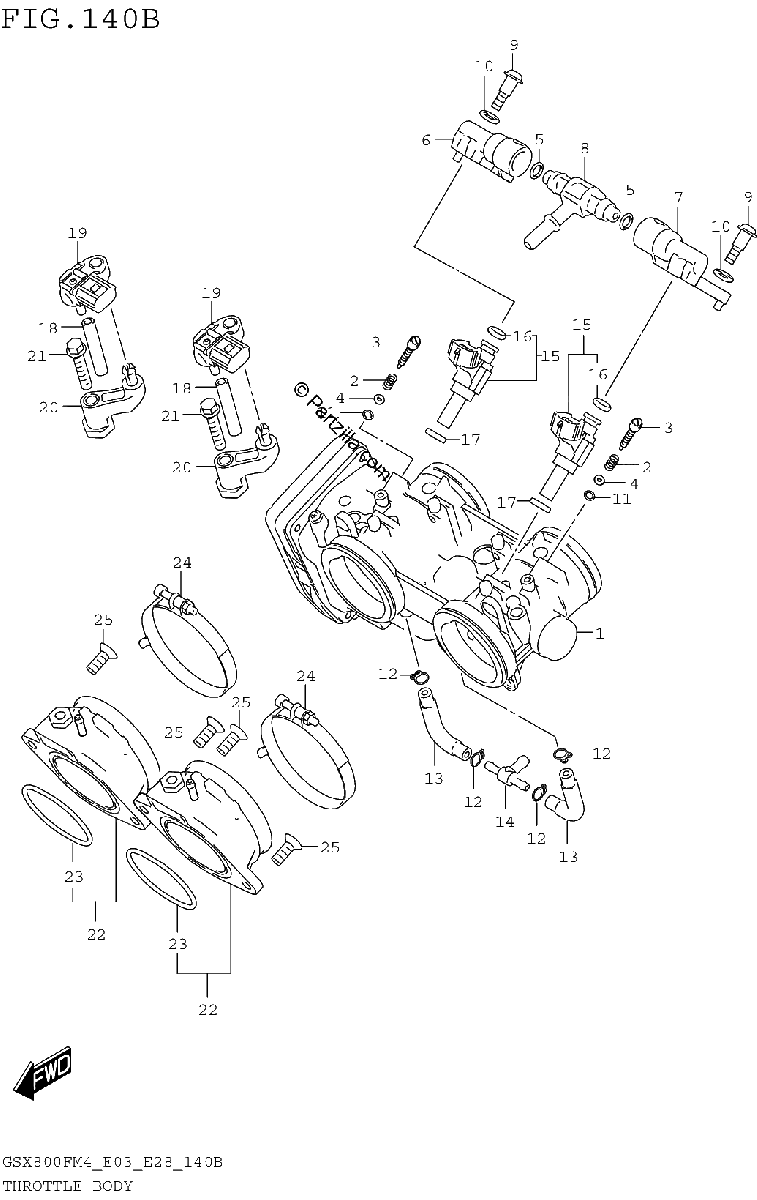

Diagrama de THROTTLE BODY E33

Repuestos

#1
13405-25L00
MIXER ASSY
$511.26¢255 628
1
#2
13268-48700
.SPRING
$4.76¢2 380
1
#3
13269-33E00
.SCREW
$12.52¢6 262
1
#4
13295-29901
O RING
$4.76¢2 380
1
#5
13374-32G00
.O RING
$8.97¢4 485
1
#6
13471-25L00
DELIVERY PIPE
$31.08¢15 542
1
#7
13472-25L00
DELIVERY PIPE
$31.08¢15 542
1
#8
13473-25L00
NIPPLE
$37.28¢18 642
1
#9
13601-11J00
SCREW, DELIVERY PIPE
$5.40¢2 702
1
#10
13602-29G01
PACKING
$3.01¢1 507
1
#11
13606-47A00
.WASHER
$4.08¢2 041
1
#12
13671-12C00
CLIP
$2.47¢1 236
1
#13
13682-25L00
HOSE
$26.42¢13 208
1
#14
13685-04F10
NIPPLE
$13.74¢6 871
1
#15
15710-17K00
INJECTOR ASSY
$216.43¢108 215
1
#16
15717-58B00
.O RING
$10.91¢5 457
1
#17
15722-14J00
SEAL
$12.82¢6 411
1
#18
09355-35007-030
HOSE
$1.61¢805
1
#19
18590-18K10
SENSOR, BOOST
$259.78¢129 892
1
#20
18596-25L00
BRACKET, AIR PRESSURE SENSOR
$15.39¢7 694
1
#21
01547-0630A
BOLT
$2.77¢1 386
1
#22
13101-25L00
PIPE ASSY, INTAKE
$62.79¢31 395
1
#23
13127-25L00
O RING, INTAKE PIPE
$5.95¢2 973
1
#24
13170-25L00
CLAMP,INTAKE PIPE
$11.59¢5 796
1
#25
02122-0616A
SCREW
$1.71¢857
1
