SIDE REAR COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

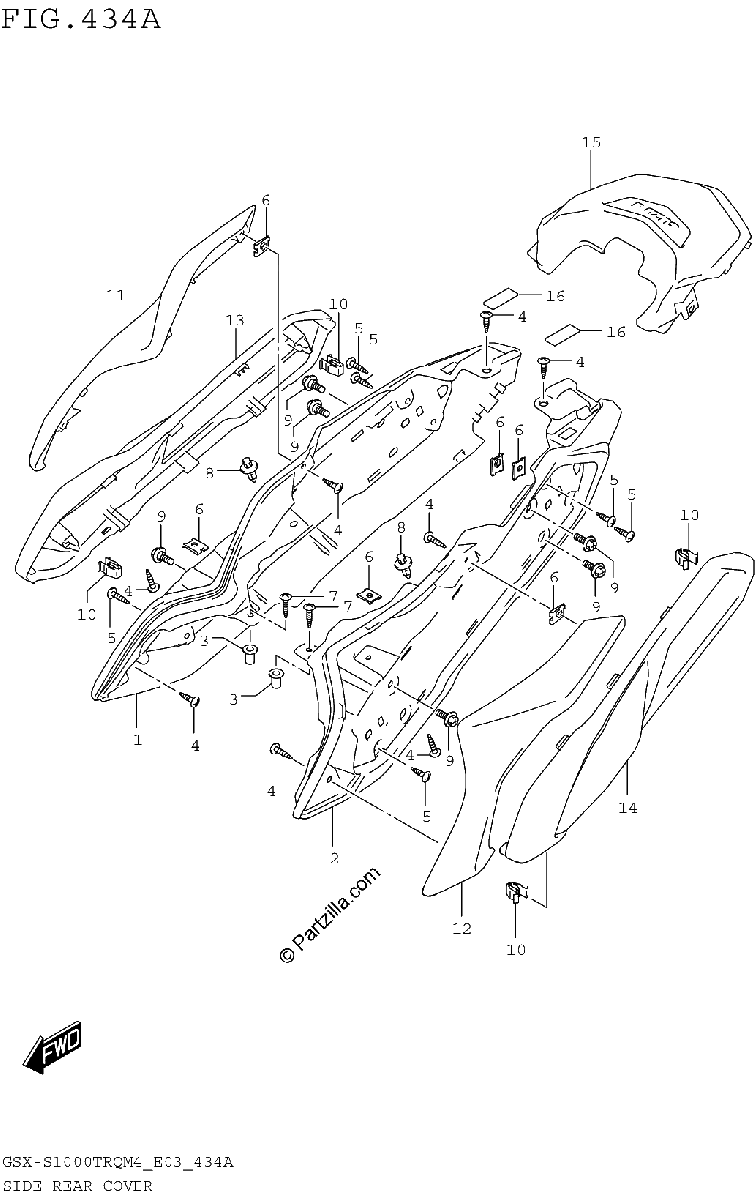

Diagrama de SIDE REAR COVER

Repuestos

#1
47131-48K10
COVER,FRAME RR LWR,R
$64.29¢32 144
1
#2
47231-48K10
COVER,FRAME RR LWR,L
$64.29¢32 144
1
#3
09159-05019
NUT
$8.39¢4 194
1
#4
03541-0512B
SCREW
$2.30¢1 150
1
#5
03541-0516A
SCREW
$1.79¢894
1
#6
09148-05038
NUT
$2.56¢1 281
1
#7
02142-1520B
SCREW
$3.05¢1 525
1
#8
09409-08308
CLIP (7.6X25.7)
$2.56¢1 281
1
#9
09111-06262
BOLT (6X13.5)
$1.57¢788
1
#10
09409-08326
CLIP
$3.19¢1 594
1
#13
47511-48K00
COVER,FRAME REAR R
$38.31¢19 156
1
#14
47611-48K00
COVER,FRAME REAR L
$38.31¢19 156
1
#15
47311-48K10
COVER,FRAME CENTER
$37.75¢18 875
1
#16
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#11-1
47121-48K10-YSF
COVER,FRAME,R (BLUE) *{BODY COLOR:YSF}*
$188.19¢94 094
1
#11-2
47121-48K10-YVB
COVER,FRAME,R (BLACK) *{BODY COLOR:YVB}*
$188.19¢94 094
1
#11-3
47121-48K10-YYG
COVER, FRAME RH (RED)
$161.02¢80 512
1
#12-1
47221-48K10-YSF
COVER,FRAME,L (BLUE) *{BODY COLOR:YSF}*
$188.19¢94 094
1
#12-2
47221-48K10-YVB
COVER,FRAME,L (BLACK) *{BODY COLOR:YVB}*
$188.19¢94 094
1
#12-3
47221-48K10-YYG
COVER, FRAME LH (RED)
$161.02¢80 512
1
