CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

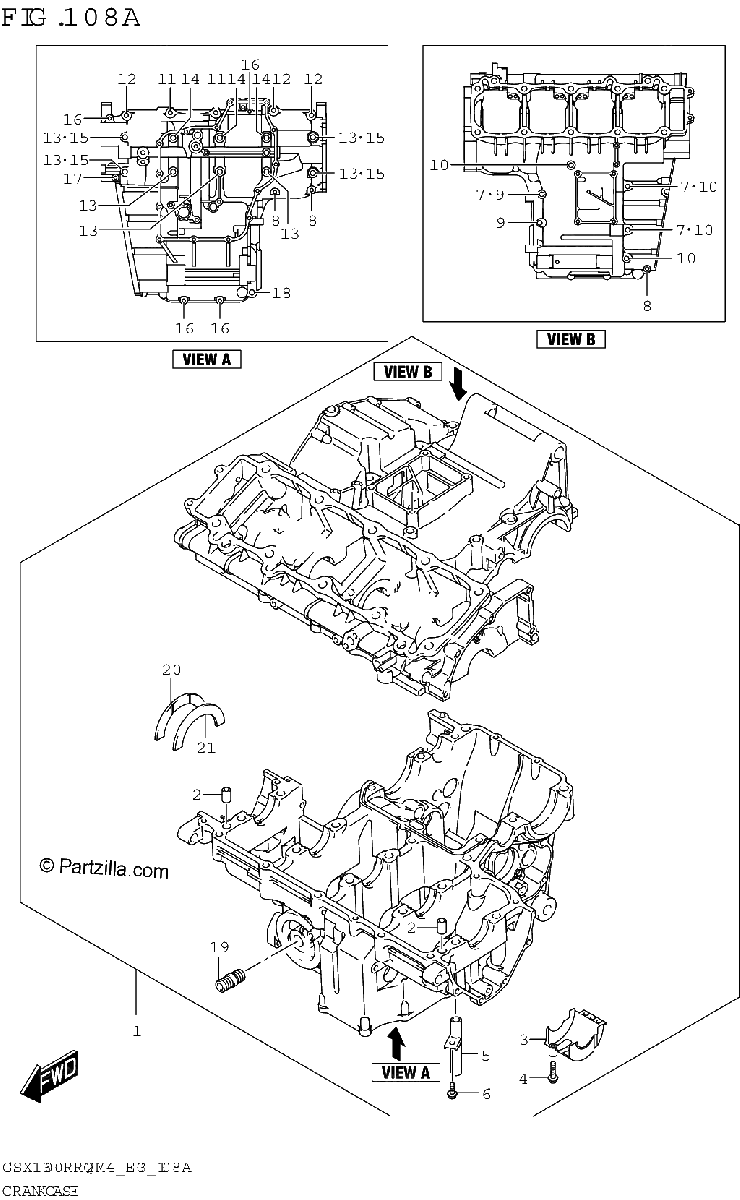

Diagrama de CRANKCASE

Repuestos

#1
11300-10810
CRANKCASE SET
$3142.26¢1 571 130
1
#2
11319-33E50
.PIN, CRANKCASE
$6.00¢3 001
1
#3
11323-24F10
.SEPARATOR, OIL
No Disponible
1
#4
01547-0625A
BOLT
$2.42¢1 208
1
#5
11328-24F00
.UNION, BREATHER OIL
$23.20¢11 598
1
#6
01547-0612A
BOLT
$2.42¢1 208
1
#7
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#8
01547-0650A
.BOLT
$2.90¢1 449
1
#9
01550-0865A
.BOLT
$3.85¢1 926
1
#10
01550-0880A
.BOLT
$5.14¢2 570
1
#11
09103-08155
.BOLT (8X60)
No Disponible
1
#12
09103-08355
.BOLT (8X50)
$5.14¢2 570
1
#13
09103-09008
.BOLT (9X95)
$8.34¢4 169
1
#14
09103-09010
.BOLT (9X115)
$11.96¢5 980
1
#15
09168-10031
.GASKET (10.2X20X2.3)
$2.42¢1 208
1
#16
01547-0640A
.BOLT
$2.77¢1 386
1
#17
01547-0660A
.BOLT
$3.36¢1 679
1
#18
01550-1060A
.BOLT
$5.08¢2 541
1
#19
16591-06B01
.UNION, OIL FILTER STAND
$7.73¢3 864
1
#20
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$12.20¢6 101
1
#21-1
12228-24F00-0A0
.BEARING, CRANK THRUST (RED) | LH
$15.90¢7 952
1
#21-2
12228-24F00-0B0
.BEARING, CRANK THRUST (BLACK
$15.79¢7 895
1
#21-3
12228-24F00-0C0
.BEARING, CRANK THRUST (BLUE)
$15.79¢7 895
1
#21-4
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$12.20¢6 101
1
#21-5
12228-24F00-0E0
.BEARING, CRANK THRUST
$16.50¢8 251
1
#21-6
12228-24F00-0F0
.BEARING, CRANK THRUST (WHITE
$16.50¢8 251
1
