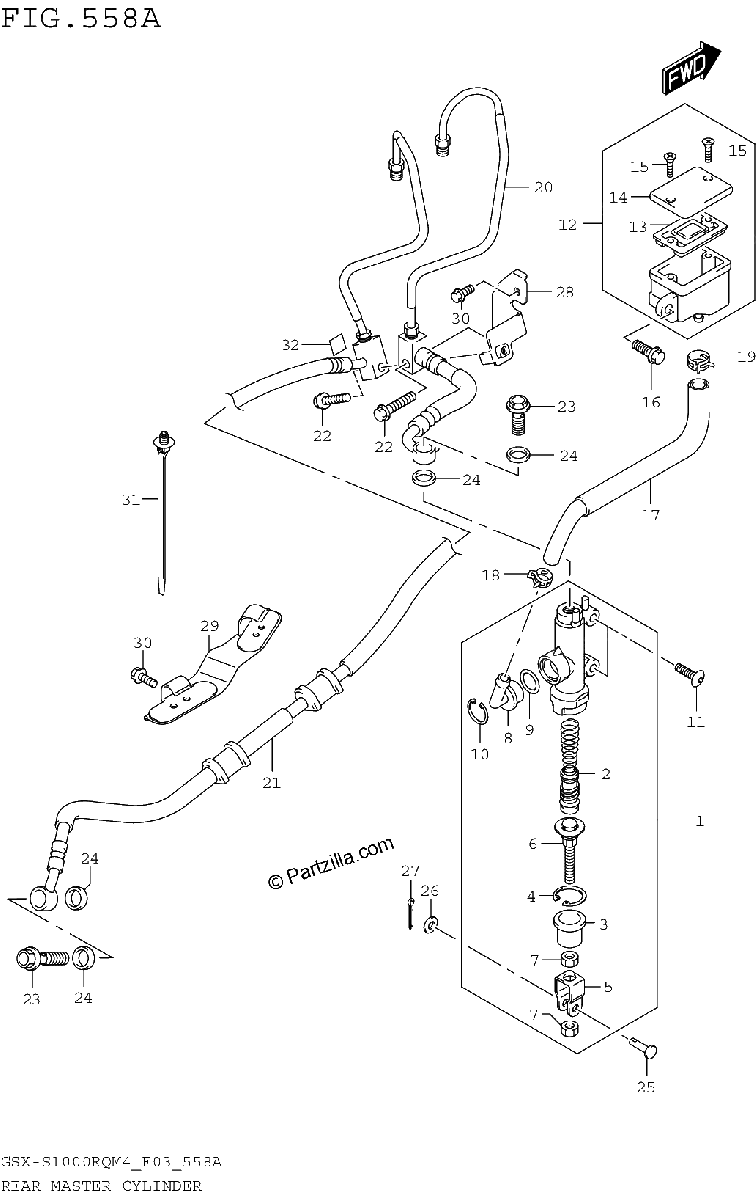

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CYLINDER ASSY,REAR MASTER
$273.76¢136 879
#2
.PISTON/CAP SET
$70.17¢35 087
#3
BOOT
$6.42¢3 209
#4
.CIRCLIP
$6.23¢3 117
#5
.YOKE
$17.33¢8 665
#6
ROD,PUSH
$21.53¢10 764
#7
.NUT
$3.08¢1 541
#8
.CONNECTOR
$7.69¢3 847
#9
.O RING
$3.36¢1 679
#10
.CIRCLIP
$4.47¢2 237
#11
BOLT,REAR MASTER CYLINDER
$4.46¢2 231
#12
TANK ASSY, REAR RESERVOIR
$71.97¢35 984
#13
.DIAPHRAGM
$10.73¢5 365
#14
.CAP
$18.91¢9 453
#15
.SCREW
$2.21¢1 104
#16
BOLT (6X12) *{(E28,E33)}*
$1.78¢891
#17
HOSE,RR RESERVOIR TANK
$15.67¢7 837
#18
CLIP
$2.84¢1 420
#19
CLIP
$3.43¢1 713
#20
HOSE ASSY,RR BK MASTER TO UNI
$83.12¢41 561
#21
HOSE ASSY,UNIT TO RR BK CLPR
$143.09¢71 547
#22
BOLT
$2.42¢1 208
#23
UNION (10X1.25X22)
$10.78¢5 388
#24
WASHER (10X15X1.5)
$2.20¢1 098
#25
PIN
$4.45¢2 225
#26
WASHER
$2.20¢1 098
#27
COTTER PIN
$1.46¢730
#28
CLAMP, RR BRAKE HOSE
$11.90¢5 951
#29
GUIDE, RR BRAKE HOSE
$24.15¢12 075
#30
BOLT
$2.42¢1 208
#31
CLAMP (L:154)
$5.54¢2 772
#32
PROTECTOR,BRAKE HOSE
$2.97¢1 483
