AIR CLEANER GSX S1000RQM4 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

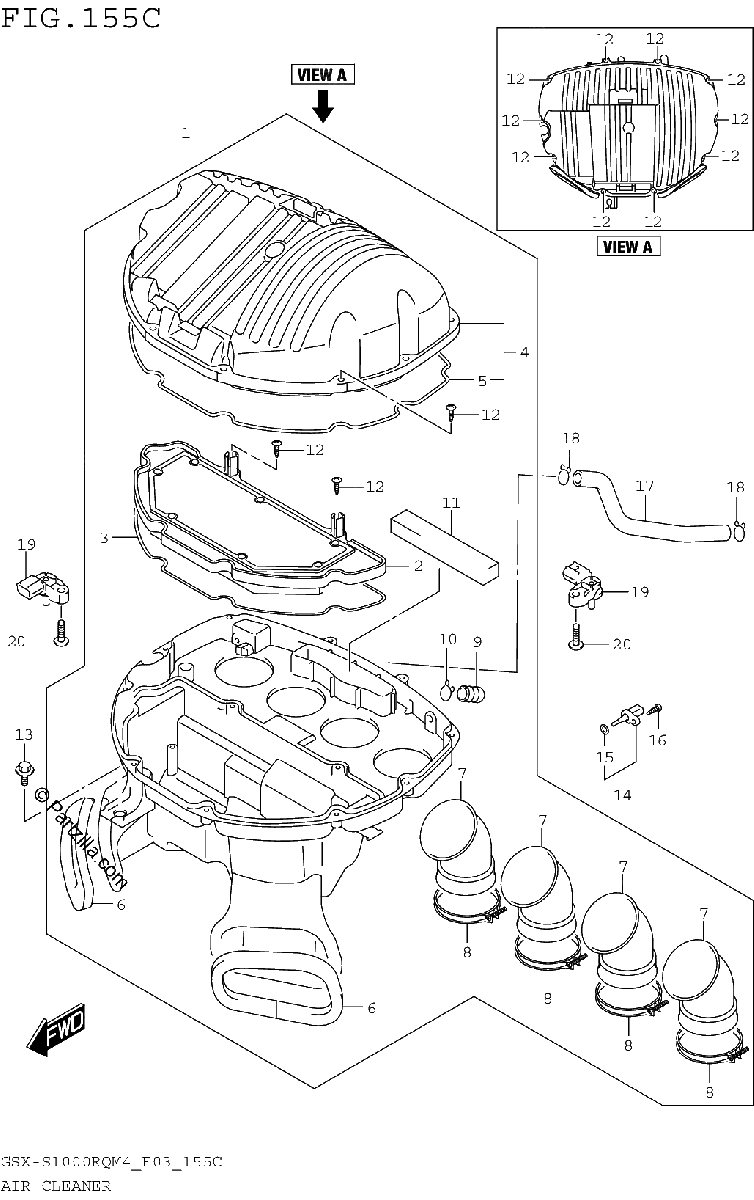

Diagrama de AIR CLEANER GSX S1000RQM4 E33

Repuestos

#1
13700-48K00
CLEANER ASSY,AIR
$336.98¢168 492
1
#2
13780-48K00
.FILTER ASSY
$66.87¢33 436
1
#3
13756-48K00
GASKET FILTER
$18.49¢9 246
1
#4
13740-48K00
CAP,AIR CLEANER
$70.87¢35 437
1
#5
13746-48K00
GASKET,CAP
$21.68¢10 839
1
#6
13736-48K00
CUSHION,DUCT
$10.35¢5 175
1
#7
13881-48K00
.TUBE,OUTLET
$22.97¢11 483
1
#8
13827-40H01
CLAMP, INTAKE PIPE
$19.09¢9 545
1
#9
13878-10G01
PLUG
$3.96¢1 978
1
#10
09401-14301
.CLIP
$2.52¢1 259
1
#11
13788-48K00
FILTER BREATHER
$5.67¢2 835
1
#12
03541-0520A
SCREW
$2.17¢1 087
1
#13
09111-06089
BOLT (6X16)
$3.13¢1 564
1
#14
13650-41F10
SENSOR, AIR TEMP
$78.57¢39 284
1
#15
13655-41F10
.O RING
No Disponible
1
#16
03511-0516A
SCREW
$2.25¢1 127
1
#17
13853-04K01
HOSE,BREATHER
$16.93¢8 464
1
#18
09401-14101
.CLIP
$2.84¢1 420
1
#19
18590-18K10
SENSOR, BOOST
$259.78¢129 892
1
#20
03541-0520A
SCREW
$2.17¢1 087
1
