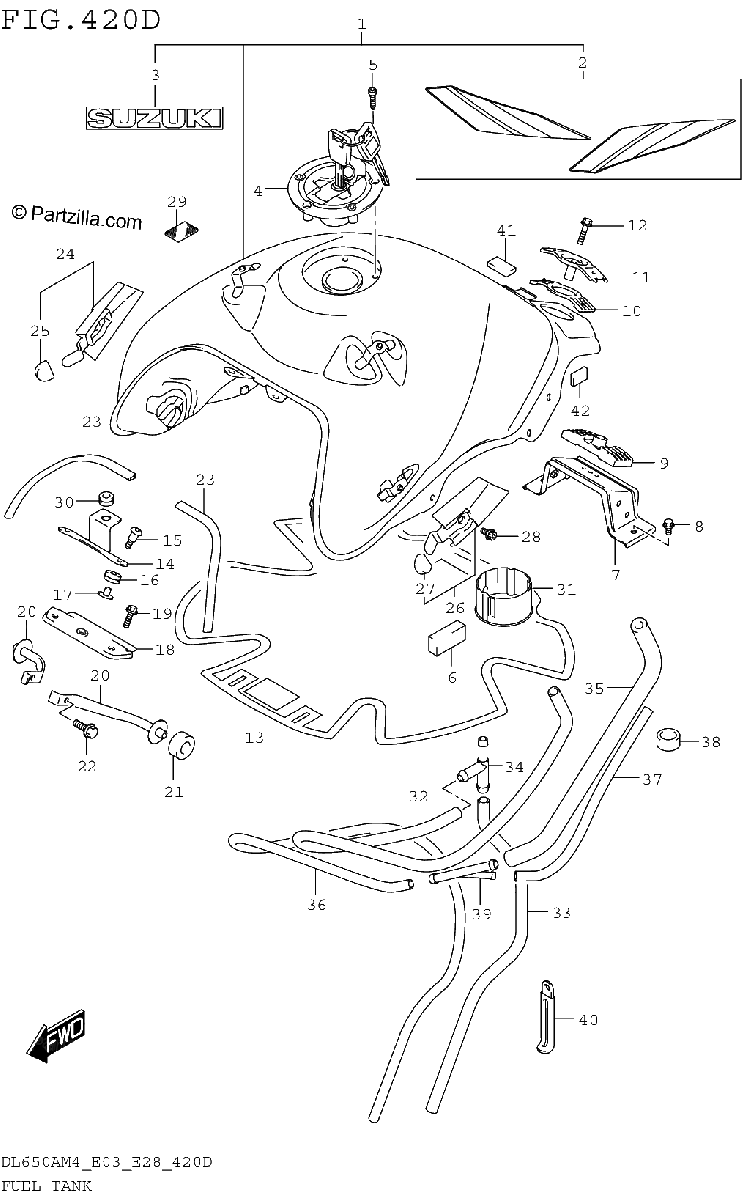

FUEL TANK DL650XAM4 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#4
CAP SET,FUEL TANK FILLER
$204.81¢102 407
#5
BOLT
$4.51¢2 254
#6
CUSHION,FUEL TANK SIDE
$14.63¢7 314
#7
BRACKET, REAR LOWER
No Disponible
#8
BOLT
$2.77¢1 386
#9
CUSHION, LOWER
$22.65¢11 327
#10
CUSHION, UPPER
$20.84¢10 419
#1-1
TANK ASSY, FUEL (WHITE) *{FOR JWN}*
$1157.19¢578 594
#11
BRACKET, UPPER
No Disponible
#1-2
TANK ASSY, FUEL (YELLOW) *{FOR YU1}*
$1157.19¢578 594
#12
BOLT
$3.36¢1 679
#1-3
TANK ASSY, FUEL (BLACK) *{FOR YVB}*
$1157.19¢578 594
#13
SHIELD, TANK CENTER
$100.48¢50 238
#14
BRACKET, FRONT COVER
$13.65¢6 825
#15
SCREW (6X25)
$3.50¢1 748
#16
CUSHION,FUEL TANK FRONT
$4.52¢2 260
#17
SPACER, FUEL TANK FRONT
$8.15¢4 077
#18
BRACKET, FUEL TANK FRONT
No Disponible
#19
BOLT (6X20)
$2.85¢1 426
#20
BRACKET, FRONT SIDE
No Disponible
#2-1
TAPE SET, FUEL TANK *{FOR JWN}*
$50.91¢25 455
#21
CUSHION,FRONT SIDE BRKT
$6.21¢3 105
#2-2
TAPE SET, FUEL TANK (BLUE/YELLOW) *{FOR YU1}*
$50.91¢25 455
#22
BOLT
$2.36¢1 179
#2-3
TAPE SET, FUEL TANK *{FOR YVB}*
$50.91¢25 455
#23
MOLDING, FUEL TANK
$22.29¢11 143
#24
BRACKET,FUEL TANK COVER RH
$15.15¢7 573
#25
CUSHION
$2.27¢1 133
#26
BRACKET,FUEL TANK COVER LH
$15.15¢7 573
#27
CUSHION
$2.27¢1 133
#28
.BOLT
$2.88¢1 438
#29
.FASTENER, COWLING
$10.80¢5 399
#30
CUSHION
$5.36¢2 680
#3-1
.EMBLEM, "SUZUKI" (GRAY)
$19.09¢9 545
#31
VESSEL,FUEL TANK INNER
$14.78¢7 389
#3-2
.EMBLEM, "SUZUKI" (BLACK)
$25.43¢12 713
#32
HOSE,FUEL TANK DRAIN NO.1
$22.20¢11 098
#33
HOSE,FUEL TANK DRAIN NO.2
$5.81¢2 904
#34
3 WAY
$5.84¢2 921
#35
HOSE,FUEL TANK BRTHR NO.1
$14.09¢7 044
#36
HOSE,FUEL TANK BRTHR NO.2
No Disponible
#37
HOSE,FUEL TANK BRTHR NO.3
$4.14¢2 070
#38
HOSE (13.5X16.5X10)
No Disponible
#39
3 WAY
$3.81¢1 903
#40
CLAMP (L:80)
No Disponible
#41
.CUSHION
$6.59¢3 295
#42
CUSHION,FRAME COVER FRONT RR
$7.13¢3 565
