SIDE COWLING DL650XAM4 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

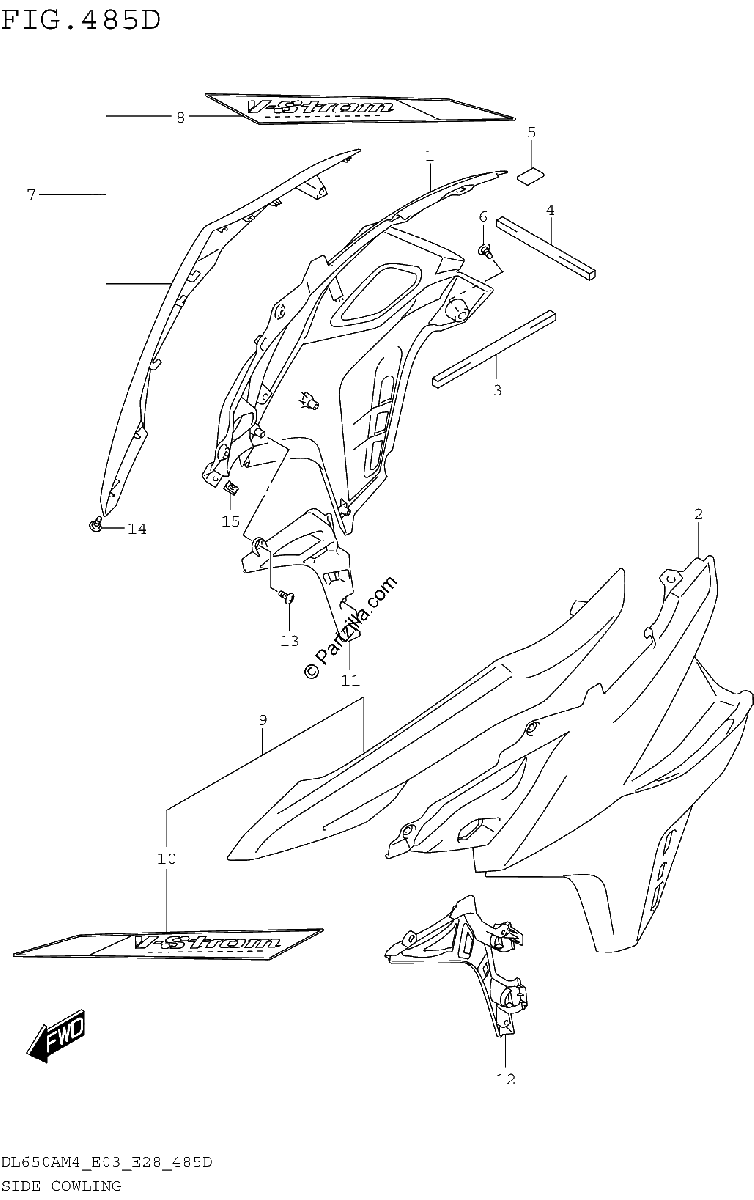

Diagrama de SIDE COWLING DL650XAM4 E03

Repuestos

#1
94413-28K00
COVER,SIDE COWL RH
$119.91¢59 955
1
#2
94414-28K00
COVER,SIDE COWL LH
$125.69¢62 848
1
#3
44176-31J00
CUSHION, TANK COVER SIDE NO.1
$3.42¢1 708
1
#4
44178-31J00
CUSHION, TANK COVER SIDE NO.3
$3.56¢1 783
1
#5
47829-10F00
CUSHION,METER COVER REAR (10X 0X4)
$5.78¢2 892
1
#6
47913-31J00
SCREW
$2.71¢1 357
1
#11
94461-28K00
COVER,SIDE COWL INNER RH
$17.94¢8 970
1
#12
94462-28K00
COVER,SIDE COWL INNER LH
$17.62¢8 809
1
#13
03541-0512A
SCREW
$1.64¢822
1
#14
09139-05091
SCREW
$2.42¢1 208
1
#15
09148-05052
NUT
$3.65¢1 823
1
#7-1
94420-28K90-YKY
COVER, SIDE COWL RH (BLUE) *{FOR JWN}*
$104.80¢52 400
1
#7-2
94420-28K90-YU1
COVER, SIDE COWL RH (YELLOW) *{FOR YU1}*
$104.80¢52 400
1
#7-3
94420-28K90-YVB
COVER, SIDE COWL RH (BLACK) *{FOR YVB}*
$104.80¢52 400
1
#8-1
68275-28K90-CGN
TAPE, COVER SIDE RH *{FOR JWN}*
$26.74¢13 369
1
#8-2
68275-28K90-CQP
TAPE, COVER SIDE RH (BLUE/YELLOW) *{FOR YU1}*
$26.74¢13 369
1
#8-3
68275-28K90-CQQ
TAPE, COVER SIDE RH *{FOR YVB}*
$26.74¢13 369
1
#9-1
94430-28K90-YKY
COVER, SIDE COWL LH (BLUE) *{FOR JWN}*
$106.80¢53 400
1
#9-2
94430-28K90-YU1
COVER, SIDE COWL LH (YELLOW) *{FOR YU1}*
$106.80¢53 400
1
#9-3
94430-28K90-YVB
COVER, SIDE COWL LH (BLACK) *{FOR YVB}*
$106.80¢53 400
1
#10-1
68285-28K90-CGN
TAPE, COVER SIDE LH *{FOR JWN}*
$26.74¢13 369
1
#10-2
68285-28K90-CQP
TAPE, COVER SIDE LH (BLUE/YELLOW) *{FOR YU1}*
$26.74¢13 369
1
#10-3
68285-28K90-CQQ
TAPE, COVER SIDE LH *{FOR YVB}*
$26.74¢13 369
1
