TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

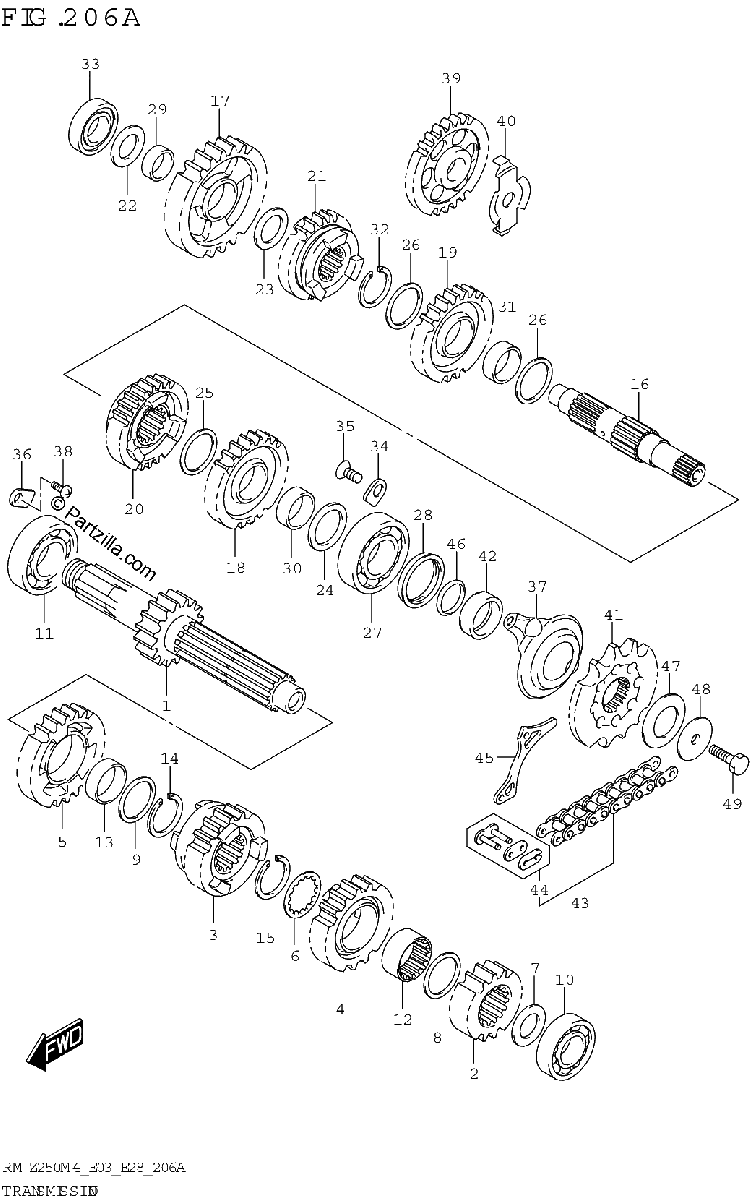

Diagrama de TRANSMISSION

Repuestos

#1
24120-49H20
SHAFT,COUNTER
$242.68¢121 342
1
#2
24221-46K00
GEAR,2ND DRIVE
$106.47¢53 233
1
#3
24231-49H10
GEAR, 3RD DRIVE (NT:17)
$133.34¢66 671
1
#4
24241-49H10
GEAR, 4TH DRIVE (NT:21)
$111.70¢55 850
1
#5
24251-49H10
GEAR, 5TH DRIVE (NT:22)
$122.30¢61 151
1
#6
24243-49H00
WASHER, 4TH DRIVE GEAR
$8.95¢4 474
1
#7
09181-17195
SHIM (17X28X1)
$3.37¢1 685
1
#8
09181-24008
SHIM (24X30X1)
$4.94¢2 472
1
#9
09181-24008
SHIM (24X30X1)
$4.94¢2 472
1
#10
09262-17040
BEARING (17X40X9.5) | LH
$22.94¢11 471
1
#11
09262-22018
BEARING (22X50X14) | RH
$30.91¢15 456
1
#12
24242-49H00
BUSH, 4TH DRIVE GEAR
$39.12¢19 562
1
#13
24252-49H00
BUSH, 5TH DRIVE GEAR
$32.05¢16 025
1
#14
09380-24007
CIRCLIP
$4.58¢2 289
1
#15
09380-24007
CIRCLIP
$4.58¢2 289
1
#16
24131-49H10
SHAFT, DRIVE
$203.07¢101 534
1
#17
24311-49H10
GEAR, 1ST DRIVEN (NT:28)
$136.53¢68 264
1
#18
24321-46K00
GEAR,2ND DRIVEN
$127.42¢63 710
1
#19
24331-49H10
GEAR, 3RD DRIVEN (NT:25)
$136.53¢68 264
1
#20
24341-49H10
GEAR, 4TH DRIVEN (NT:26)
$143.32¢71 662
1
#21
24351-49H10
GEAR, 5TH DRIVEN (NT:24)
$144.50¢72 249
1
#22
09181-17195
SHIM (17X28X1)
$3.37¢1 685
1
#23
09181-20167
SHIM (20X28X1)
$3.16¢1 581
1
#24
09181-22167
SHIM (22X30X1)
$3.36¢1 679
1
#25
09181-24008
SHIM (24X30X1)
$4.94¢2 472
1
#26
09181-24008
SHIM (24X30X1)
$4.94¢2 472
1
#27
09262-22040
BEARING (22X52X15) | LH
$91.17¢45 586
1
#28
09289-28012
OIL SEAL (28X38X7.5)
$10.48¢5 238
1
#29
09300-20037
BUSH (20X24X10)
$21.62¢10 810
1
#30
24323-49H00
BUSH, 2ND DRIVEN GEAR
$39.12¢19 562
1
#31
24323-49H00
BUSH, 2ND DRIVEN GEAR
$39.12¢19 562
1
#32
09380-24007
CIRCLIP
$4.58¢2 289
1
#33
08113-6203A
BEARING
$14.98¢7 492
1
#34
24741-20A00
RETAINER, BEARING
$3.36¢1 679
1
#35
09126-06011
SCREW (6X12)
$2.42¢1 208
1
#36
24741-21A00
RETAINER, BEARING
$3.36¢1 679
1
#37
24751-49H00
RETAINER, DRIVE SHAFT OIL SEA
$19.01¢9 505
1
#38
09125-06122
SCREW (6X12)
$2.64¢1 322
1
#39
26260-49H10
GEAR, KICK STARTER IDLE
$114.56¢57 282
1
#40
27516-28H00
WASHER, ENG SPROCKET BOLT LOC
$15.62¢7 809
1
#41
27511-49H10
SPROCKET, ENGINE (NT:13)
$41.14¢20 568
1
#42
27531-49H00
SPACER, ENGINE SPROCKET
$35.97¢17 986
1
#43
27600-46K00-114
CHAIN ASSY,DRIVE
$174.97¢87 486
1
#44
27620-46K00
.JOINT SET,CHAIN
$11.88¢5 940
1
#45
27641-28H00
PLATE, FRONT CHAIN GUIDE
$13.65¢6 825
1
#46
27515-49H00
D RING, SPROCKET SPACER
$7.59¢3 795
1
#47
27514-49H00
WASHER, ENGINE SPROCKET WAVE
$8.34¢4 169
1
#48
27513-49H00
WASHER, ENGINE SPROCKET
$18.86¢9 430
1
#49
27517-28H00
BOLT, ENGINE SPROCKET
$8.52¢4 261
1
