FUEL TANK DR Z400S E03 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

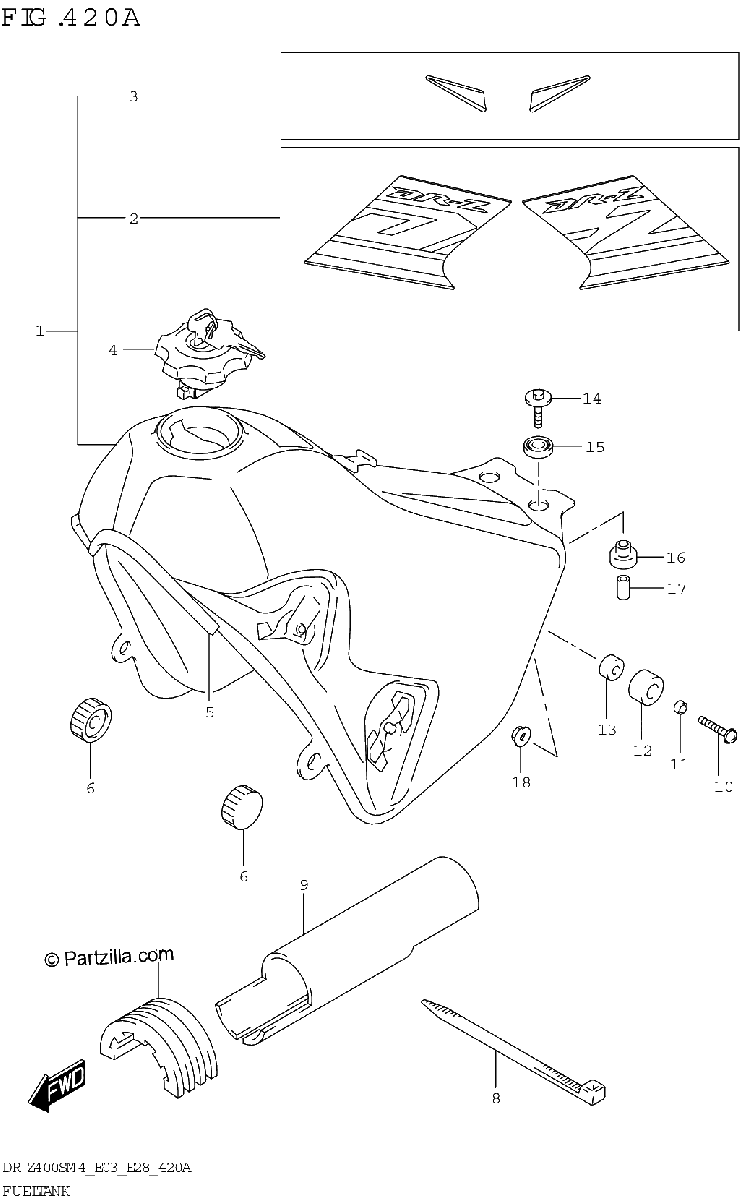

Diagrama de FUEL TANK DR Z400S E03 E28

Repuestos

#4
44200-29821
CAP SET,FUEL TANK FILLER
$138.50¢69 250
1
#5
68241-40A10
MOLDING,FUEL TANK
$33.49¢16 744
1
#6
09329-10016
CUSHION
$3.65¢1 825
1
#7
44541-29F00
CUSHION, UPPER
$46.65¢23 325
1
#8
09407-30402
CLAMP (L:300)
$4.90¢2 450
1
#9
44194-29F00
SHIELD, FUEL TANK
No Disponible
1
#10
02112-1630B
SCREW
$4.06¢2 031
1
#1-1
49200-33K20-019
TANK ASSY FUEL (BLACK) *{BODY COLOR:019}*
$805.16¢402 581
1
#11
09180-06215
SPACER (6.5X20X9)
$10.44¢5 219
1
#1-2
49200-33K20-YU1
TANK ASSY FUEL (YELLOW) *{BODY COLOR:YU1}*
$805.16¢402 581
1
#12
45149-14D00
CUSHION, SIDE
$8.96¢4 481
1
#13
09180-06306
SPACER (6.5X9X5)
$2.69¢1 344
1
#14
09116-06214
BOLT (6X30)
$3.25¢1 625
1
#15
09320-14022
CUSHION
$4.28¢2 138
1
#16
09320-10071
CUSHION (9X24X18)
$3.40¢1 700
1
#17
09180-06271
SPACER (6.5X9X18)
$2.74¢1 369
1
#18
08319-3106B
NUT
$3.21¢1 606
1
#2-1
68120-29FF0-CSH
TAPE SET FUEL TANK *{BODY COLOR:019}*
$50.56¢25 281
1
#2-2
68120-29FF0-CSJ
TAPE SET FUEL TANK *{BODY COLOR:YU1}*
$50.56¢25 281
1
#3-1
68120-29FG0-HGU
TAPE SET FUEL TANK (BLACK GR Y) *{BODY COLOR:019}*
$24.66¢12 331
1
#3-2
68120-29FG0-CDZ
TAPE SET FUEL TANK *{BODY COLOR:YU1}*
$24.66¢12 331
1
