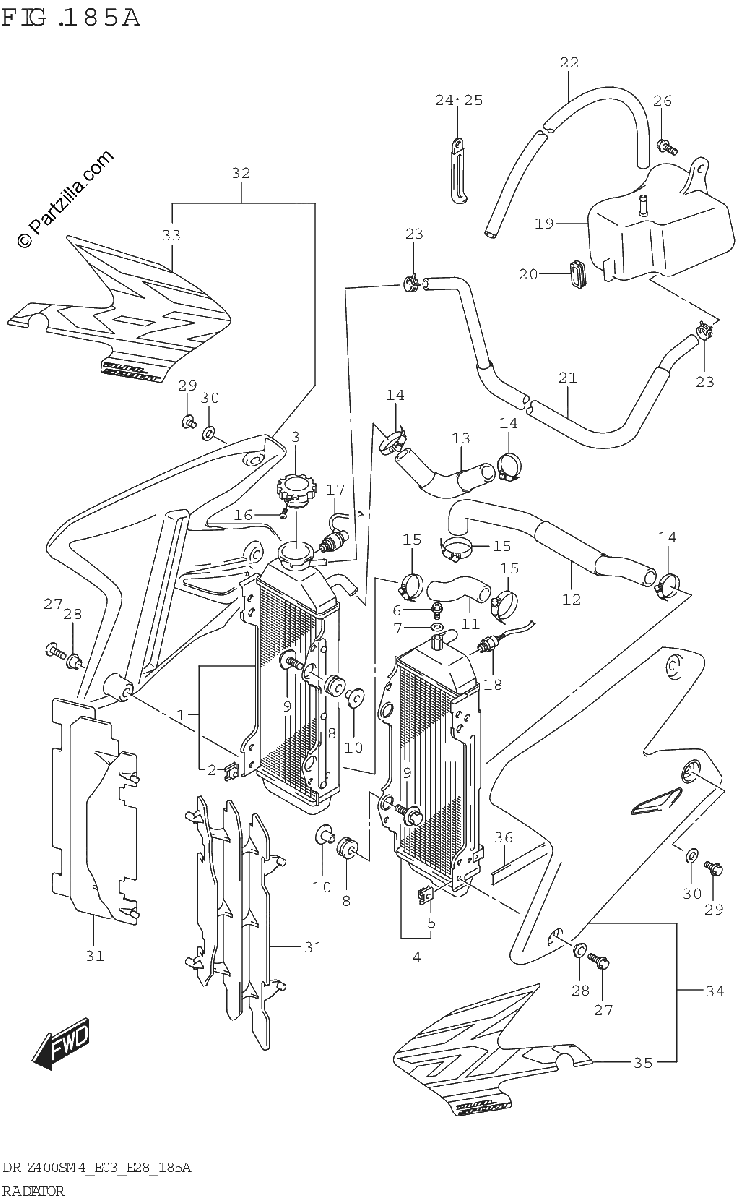

RADIATOR DR Z400S
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RADIATOR, WATER RH
$788.04¢394 019
#2
.NUT
$3.81¢1 906
#3
CAP, RADIATOR (1.1)
$50.46¢25 231
#4
RADIATOR, WATER LH
$819.16¢409 581
#5
.NUT
$3.81¢1 906
#6
BOLT, THERMOSTAT COVER AIR
$7.56¢3 781
#7
GASKET (6.4X11.5X0.8)
$3.65¢1 825
#8
CUSHION, RADIATOR SUPPORT
$4.25¢2 125
#9
BOLT (6X25)
$3.81¢1 906
#10
SPACER (6.5X10.5X14.1)
$6.41¢3 206
#11
HOSE, RADIATOR INLET
$21.94¢10 969
#12
HOSE, RADIATOR OUTLET
$67.91¢33 956
#13
HOSE, RADIATOR JOINT
$36.02¢18 013
#14
CLAMP
$8.21¢4 106
#15
CLAMP
$16.85¢8 425
#16
SCREW, RADIATOR CAP
$3.54¢1 769
#17
SWITCH ASSY, WATER TEMP
$167.78¢83 888
#18
SWITCH, FAN
$167.38¢83 688
#19
TANK, RESERVOIR
$59.49¢29 744
#20
CUSHION, RESERVOIR TANK
$5.98¢2 988
#21
HOSE, RESERVOIR TANK INLET
$28.40¢14 200
#22
HOSE (5X9X2000) | L:2000-700
$41.60¢20 800
#23
CLIP
$2.30¢1 150
#24
CLAMP
$2.94¢1 469
#25
CLAMP (L:45)
$2.33¢1 163
#26
BOLT
$2.56¢1 281
#27
BOLT (6X16)
$2.63¢1 313
#28
.WASHER
$1.44¢719
#29
BOLT (6X8)
$2.79¢1 394
#30
WASHER
$2.46¢1 231
#31
LOUVER, RADIATOR
$22.75¢11 375
#36
CUSHION, TOOL HOLDER
$5.98¢2 988
#32-1
COVER COMP RADIATOR R (BLACK) *{FOR 019}*
$179.65¢89 825
#32-2
COVER COMP RADIATOR R (YELLOW *{FOR YU1}*
$179.65¢89 825
#33-1
TAPE RADIATOR COVER R
$93.79¢46 894
#33-2
TAPE RADIATOR COVER R
$93.79¢46 894
#34-1
COVER COMP RADIATOR L (BLACK) *{FOR 019}*
$177.13¢88 563
#34-2
COVER COMP RADIATOR L (YELLOW *{FOR YU1}*
$177.13¢88 563
#35-1
TAPE RADIATOR COVER L
$93.79¢46 894
#35-2
TAPE RADIATOR COVER L
$93.79¢46 894
