TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

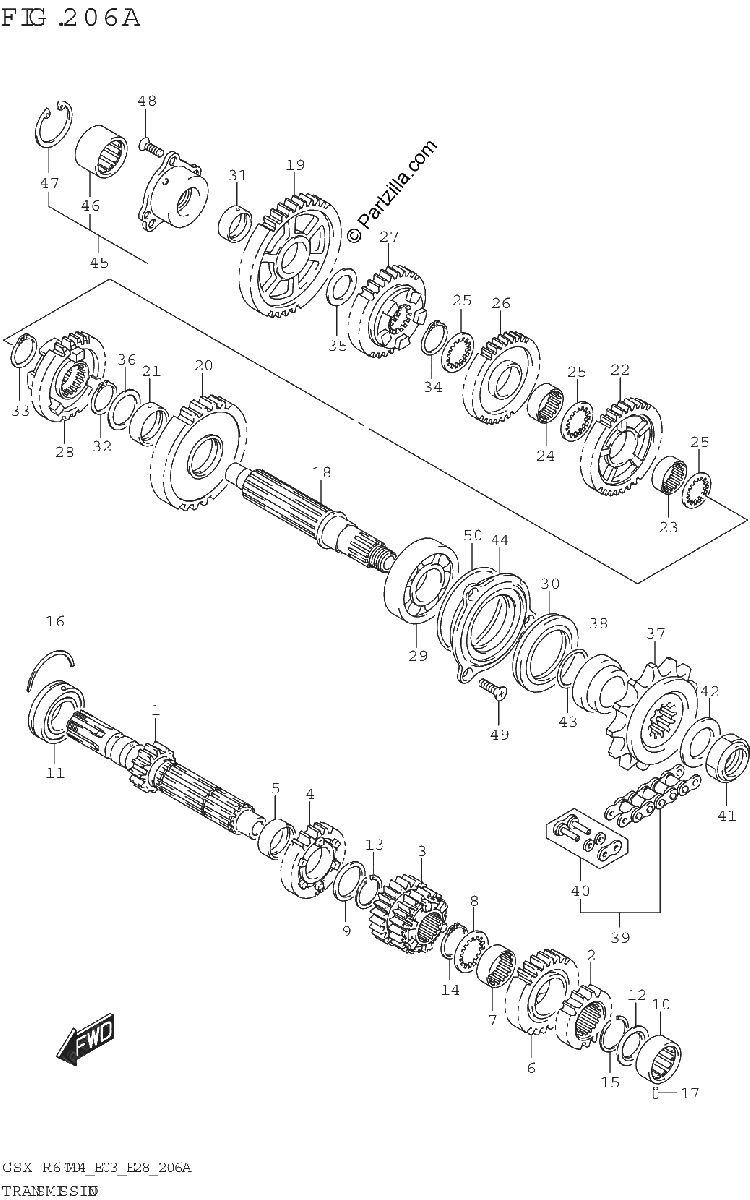

Diagrama de TRANSMISSION

Repuestos

#1
24120-14J00
SHAFT, COUNTER (NT:16)
$406.55¢203 274
1
#2
24221-14J00
GEAR, 2ND DRIVE (NT:19)
No Disponible
1
#3
24231-14J00
GEAR, 3RD 4TH (NT:21/23)
$260.51¢130 255
1
#4
24251-01H00
GEAR, 5TH DRIVE (NT:23)
$209.33¢104 667
1
#5
24252-35F00
BUSH 5TH DRIVE GEAR
$30.68¢15 341
1
#6
24261-14J00
GEAR, 6TH DRIVE (NT:26)
No Disponible
1
#7
24262-35F10
BUSH, 6TH DRIVE GEAR
$35.65¢17 825
1
#8
09167-27001
LOCK WASHER
$2.84¢1 420
1
#9
09160-27008
WASHER (27X36X1)
$4.45¢2 225
1
#10
09263-20087
BEARING (20X34X13.5)
$60.58¢30 291
1
#11
09262-25150
BEARING (25X62X17) | RH
$99.76¢49 881
1
#12
09285-20006
OIL SEAL (20X31.2X2.7)
$7.05¢3 525
1
#13
09380-27006
CIRCLIP
$3.27¢1 633
1
#14
09380-27006
CIRCLIP
$3.27¢1 633
1
#15
09380-27004
CIRCLIP
$3.99¢1 995
1
#16
09390-62012
C RING
$8.02¢4 008
1
#17
09261-06003
PIN (6X10)
$1.78¢891
1
#18
24131-14J00
SHAFT, DRIVE
$401.46¢200 733
1
#19
24311-14J00
GEAR, 1ST DRIVEN (NT:43)
$207.29¢103 644
1
#20
24321-14J00
GEAR, 2ND DRIVEN (NT40)
$207.29¢103 644
1
#21
24322-35F00
BUSH, 2ND DRIVEN GEAR
$25.62¢12 811
1
#22
24331-14J00
GEAR, 3RD DRIVEN (NT:37)
$212.38¢106 191
1
#23
24332-46H00
BUSH, 4TH DRIVEN
$48.38¢24 190
1
#24
24332-46H00
BUSH, 4TH DRIVEN
$48.38¢24 190
1
#25
24333-02F00
WASHER, 3RD 4TH DRIVEN GEAR
$5.63¢2 818
1
#26
24341-14J00
GEAR, 4TH DRIVEN (NT:35)
$217.56¢108 779
1
#27
24351-01H01
GEAR, 5TH DRIVEN (NT:31)
No Disponible
1
#28
24361-14J00
GEAR, 6TH DRIVEN (NT:32)
$200.25¢100 125
1
#29
09262-28045
BEARING (28X68X18) | LH
$125.87¢62 934
1
#30
09283-42018
OIL SEAL (42X62X7)
$39.34¢19 671
1
#31
09300-22008
BUSH (22X26X9)
$17.91¢8 953
1
#32
09380-27006
CIRCLIP
$3.27¢1 633
1
#33
09380-27006
CIRCLIP
$3.27¢1 633
1
#34
09380-27006
CIRCLIP
$3.27¢1 633
1
#35
09181-22223
SHIM (22X34X1)
$3.42¢1 708
1
#36
09160-27008
WASHER (27X36X1)
$4.45¢2 225
1
#37
27510-20A10
SPROCKET, ENGINE (NT:16)
$90.31¢45 155
1
#38
27531-14J00
SPACER, ENGINE SPROCKET
$51.50¢25 749
1
#39
27600-06G40-114
CHAIN ASSY (RK525SM0Z8)
$247.36¢123 682
1
#40
27620-06G40
JOINT SET, CHAIN
$26.22¢13 110
1
#41
09159-20004
NUT
$16.95¢8 476
1
#42
09160-25009
WASHER (25X41X3)
$5.80¢2 898
1
#43
09280-24010
O RING (D:2.4,ID:23.7)
$6.11¢3 053
1
#44
24751-14J00
RETAINER, DRIVE SHAFT LH
$148.04¢74 020
1
#45
24771-01810
HOUSING, DRIVE SHAFT SET
$207.29¢103 644
1
#46
09263-20069
.BEARING (20X34X17.5)
$62.93¢31 464
1
#47
08331-41349
.CIRCLIP
$3.39¢1 696
1
#48
09139-06159
SCREW (6X20)
$4.94¢2 472
1
#49
09139-06159
SCREW (6X20)
$4.94¢2 472
1
#50
09280-68010
O RING (D:1.8,ID:67.5)
$16.88¢8 441
1
