MUFFLER GSX S1000TRQM4 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

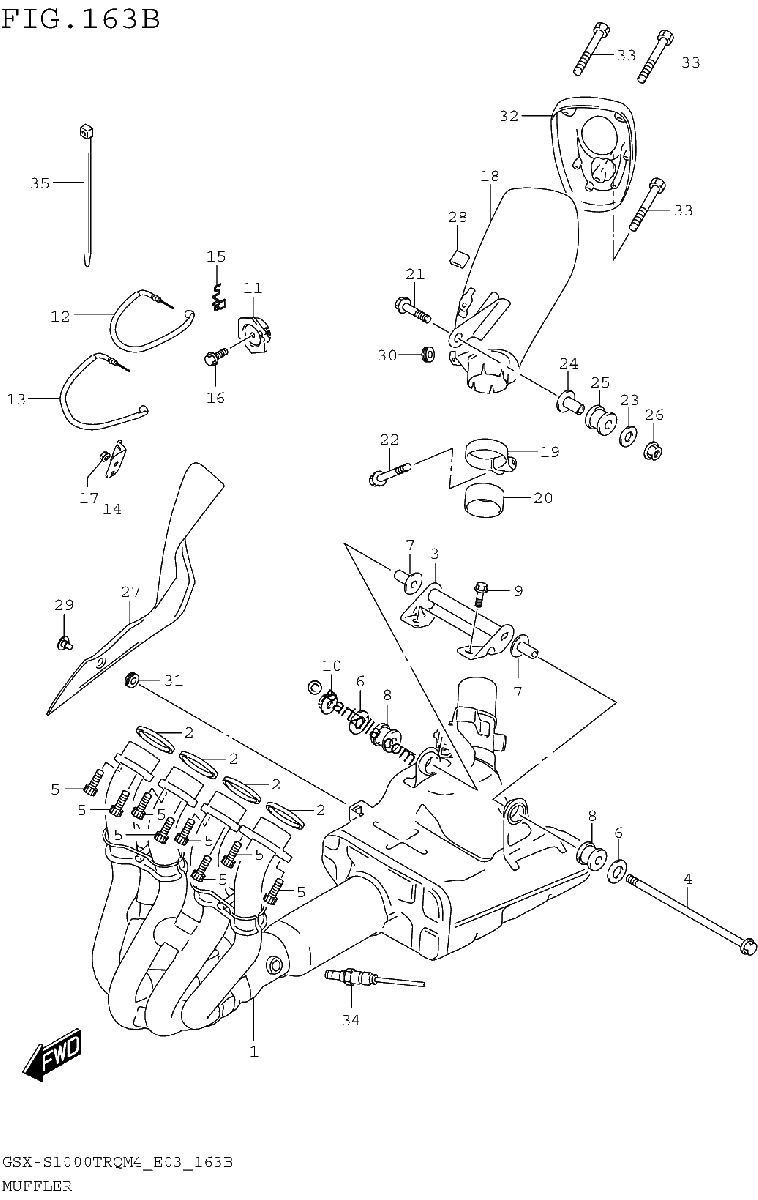

Diagrama de MUFFLER GSX S1000TRQM4 E28

Repuestos

#1
14100-48K30
EXHAUST
$3373.52¢1 686 762
1
#2
14181-04K00
GASKET, EXHAUST PIPE *{NOT ILLUSTRATED}*
$9.10¢4 548
1
#3
14770-04K00
BRACKET, EXH SPRT
$32.46¢16 232
1
#4
09103-08464
BOLT (8X200)
$13.49¢6 745
1
#5
09106-08178
BOLT (8X25)
$3.56¢1 783
1
#6
09160-08503
WASHER (8.5X30X2.3)
$3.02¢1 512
1
#7
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#8
09320-12077
CUSHION
$12.93¢6 463
1
#9
09135-08007
BOLT
$3.53¢1 765
1
#10
08316-1008A
NUT
$2.96¢1 478
1
#11
11269-18G01
PULLEY, CONTROLLER
$35.77¢17 883
1
#12
11276-48K00
CABLE,EXH VALVE NO.1
$58.17¢29 083
1
#13
11277-48K00
CABLE,EXH VALVE NO.2
$59.42¢29 710
1
#14
14250-21H00
BRACKET, EXHAUST VALVE CABLE
$12.30¢6 152
1
#15
14252-14J00
GUIDE, EXHAUST VALVE CABLE
$9.14¢4 571
1
#16
01547-0516A
BOLT
$1.87¢937
1
#17
08316-1006A
NUT
$2.62¢1 311
1
#18
14310-48K00-H01
BODY,MUFFLER
$599.17¢299 586
1
#19
14459-47H00
CLAMP
$30.27¢15 134
1
#20
14771-24F01
CONNECTOR
$37.49¢18 745
1
#21
09106-08164
BOLT (8X45)
$7.73¢3 864
1
#22
09106-08162
BOLT (8X40)
$5.75¢2 875
1
#23
09160-08503
WASHER (8.5X30X2.3)
$3.02¢1 512
1
#24
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#25
09320-12048
CUSHION
$5.53¢2 766
1
#26
08316-1008A
NUT
$2.96¢1 478
1
#27
14780-48K00
COVER,MUF FR
$312.71¢156 354
1
#28
14795-10FA0
.GROMMET
$6.30¢3 151
1
#29
09139-06124
SCREW (6X12)
$5.46¢2 731
1
#30
09320-04011
CUSHION,MUF COVER
$7.50¢3 749
1
#31
09320-08066
CUSHION
$8.91¢4 456
1
#32
14791-04K12
COVER,MUF RR
$106.75¢53 377
1
#33
09116-06528
BOLT
$5.86¢2 932
1
#34
18213-04K00
SENSOR, OXYGEN
$388.44¢194 218
1
#35
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
