CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

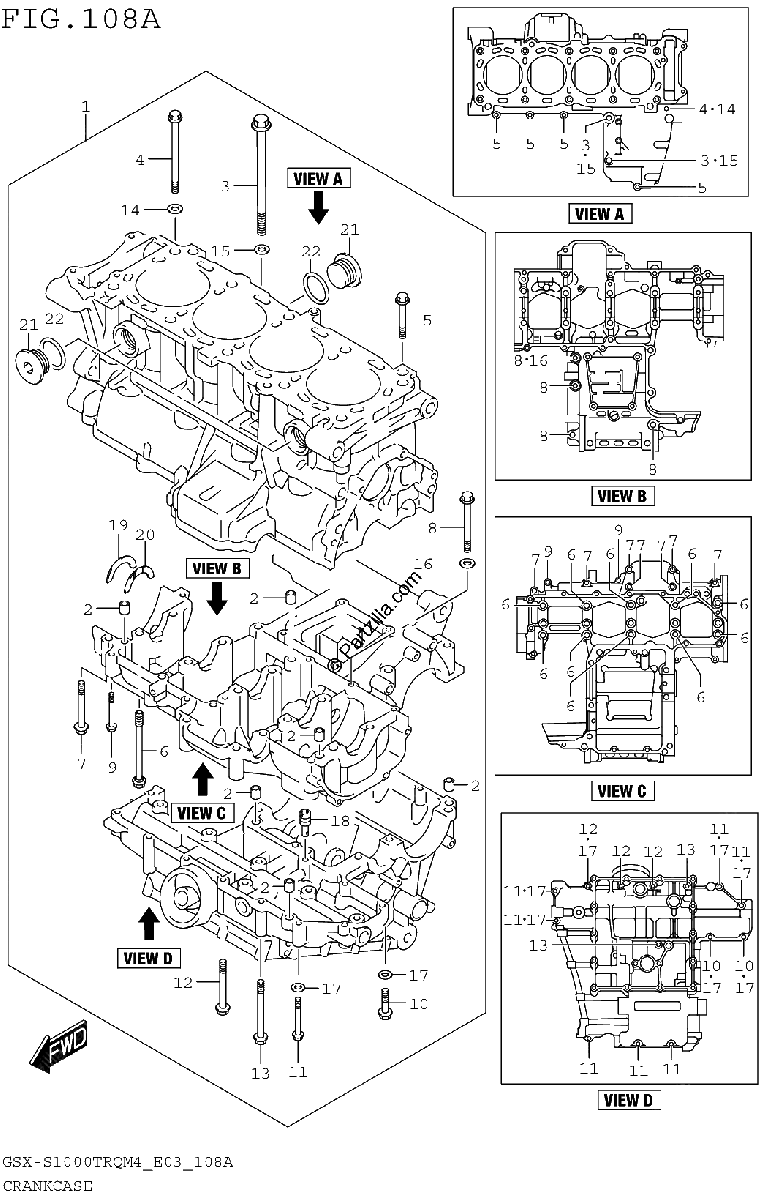

Diagrama de CRANKCASE

Repuestos

#1
11301-04860
CRANKCASE SET
$4067.15¢2 033 574
1
#2
11319-33E50
.PIN, CRANKCASE
$6.00¢3 001
1
#3
09106-08198
BOLT (8X120)
No Disponible
1
#4
01547-0680A
.BOLT
$3.97¢1 984
1
#5
01547-0640A
.BOLT
$2.77¢1 386
1
#6
09103-09012
.BOLT (9X95)
$9.48¢4 738
1
#7
09103-08027
BOLT
$3.83¢1 915
1
#8
07120-0865A
.BOLT
$5.75¢2 875
1
#9
01547-0640A
.BOLT
$2.77¢1 386
1
#10
01547-0630A
BOLT
$2.77¢1 386
1
#11
01547-0640A
.BOLT
$2.77¢1 386
1
#12
01547-0660A
.BOLT
$3.36¢1 679
1
#13
01547-0670A
.BOLT
$3.36¢1 679
1
#14
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#15
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#16
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#17
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#18
09493-28012
JET (140)
$20.38¢10 189
1
#19
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$10.55¢5 273
1
#21
11318-35F00
.PLUG, WATER JACKET
$20.84¢10 419
1
#22
09280-20002
.O RING (D:3.1,ID:19.4)
$2.29¢1 144
1
#20-1
12228-48B00-0B0
.BEARING, THRUST LH (BROWN)
$14.35¢7 176
1
#20-2
12228-48B00-0C0
BEARING, THRUST LH (RED)
$14.11¢7 055
1
#20-3
12228-48B00-0D0
.BEARING, THRUST LH (YELLOW)
$14.63¢7 314
1
#20-4
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$10.55¢5 273
1
#20-5
12228-48B00-0F0
BEARING, THRUST LH (BLUE)
$14.63¢7 314
1
#20-6
12228-48B00-0G0
BEARING, THRUST LH (ORANGE)
$14.63¢7 314
1
#20-7
12228-48B00-0H0
BEARING, THRUST LH (BLACK)
$10.89¢5 445
1
