FUEL TANK DR Z400SM E33 SEE NOTE 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

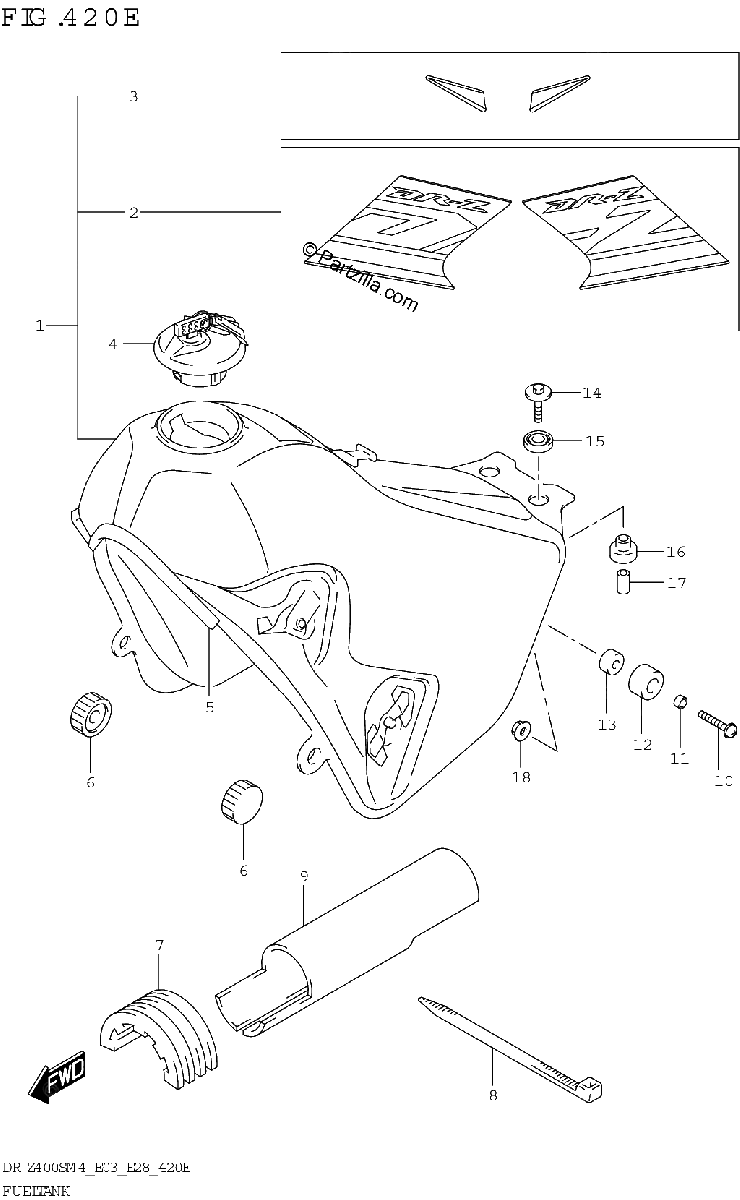

Diagrama de FUEL TANK DR Z400SM E33 SEE NOTE 1

Repuestos

#4
44200-05821
CAP SET,FUEL TANK FILLER
$93.15¢46 575
1
#5
68241-40A10
MOLDING,FUEL TANK
$30.81¢15 404
1
#6
09329-10016
CUSHION
$3.36¢1 679
1
#7
44541-29F00
CUSHION, UPPER
$42.92¢21 459
1
#8
09407-30402
CLAMP (L:300)
$4.51¢2 254
1
#9
44194-29F00
SHIELD, FUEL TANK
No Disponible
1
#10
02112-1630B
SCREW
$3.74¢1 869
1
#1-1
49200-33K40-019
TANK ASSY FUEL (BLACK) *{BODY COLOR:019}*
$740.75¢370 375
1
#11
09180-06215
SPACER (6.5X20X9)
$9.60¢4 801
1
#1-2
49200-33K40-30H
TANK ASSY FUEL (WHITE) *{BODY COLOR:30H}*
$740.75¢370 375
1
#12
45149-14D00
CUSHION, SIDE
$8.25¢4 123
1
#13
09180-06306
SPACER (6.5X9X5)
$2.47¢1 236
1
#14
09116-06214
BOLT (6X30)
$2.99¢1 495
1
#15
09320-14022
CUSHION
$3.93¢1 967
1
#16
09320-10071
CUSHION (9X24X18)
$3.13¢1 564
1
#17
09180-06271
SPACER (6.5X9X18)
$2.52¢1 259
1
#18
08319-3106B
NUT
$2.96¢1 478
1
#19
SPECIAL-NOTE
COLOR :
No Disponible
1
#2-1
68120-29FF0-CSH
TAPE SET FUEL TANK *{BODY COLOR:019}*
$46.52¢23 259
1
#2-2
68120-29FF0-CMB
TAPE SET FUEL TANK *{BODY COLOR:30H}*
$46.52¢23 259
1
#3-1
68120-29FG0-HGU
TAPE SET FUEL TANK (BLACK GR Y) *{BODY COLOR:019}*
$22.69¢11 345
1
#3-2
68120-29FG0-CSM
TAPE SET FUEL TANK *{BODY COLOR:30H}*
$22.69¢11 345
1
