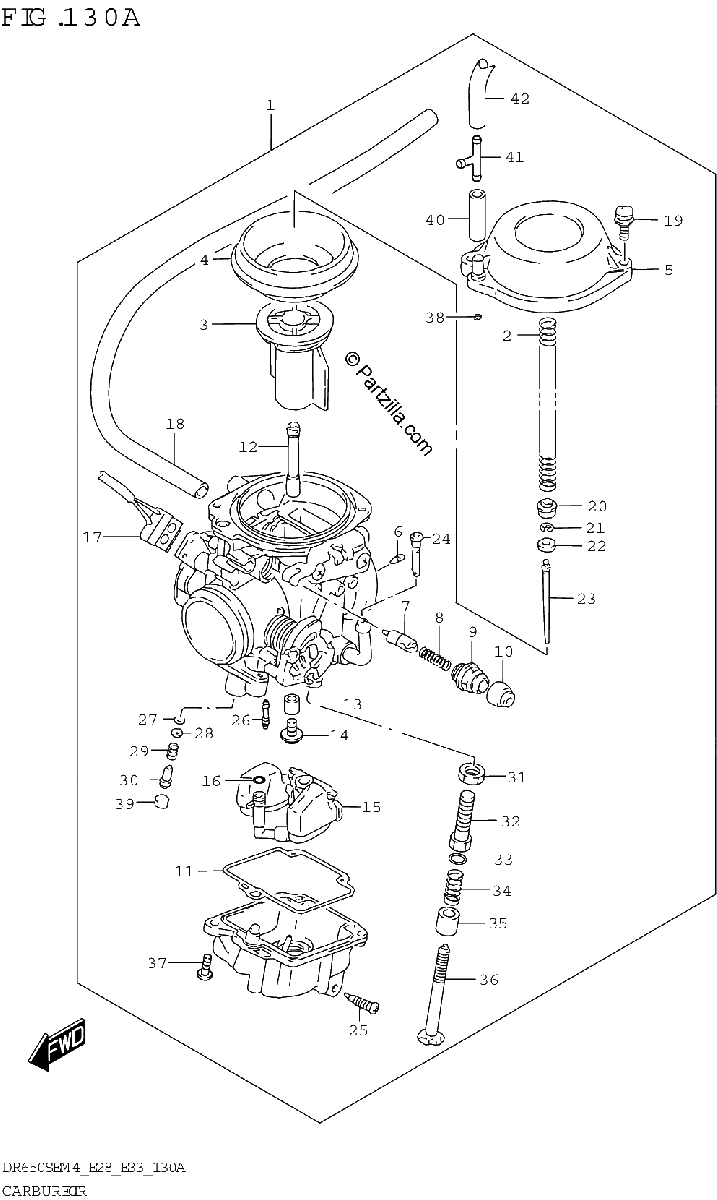

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY
$701.36¢350 681
#2
.SPRING
$8.10¢4 048
#3
.VALVE, PISTON
$112.09¢56 045
#4
DIAPHRAGM
$38.03¢19 015
#5
.COVER, DIAPHRAGM
$61.39¢30 694
#6
.JET, AIR (1.0)
$17.16¢8 579
#7
.PLUNGER ASSY
$32.97¢16 485
#8
.SPRING
$3.91¢1 955
#9
.HOLDER, GUIDE
$7.92¢3 962
#10
.CAP
$5.40¢2 702
#11
.GASKET, FLOAT CHAMBER
$10.73¢5 365
#12
.JET, NEEDLE (Y-5M)
$62.71¢31 355
#13
.RING
$8.25¢4 123
#14
.JET,MAIN (140)
$13.74¢6 871
#15
.FLOAT/NEEDLE VALVE ASSY
$140.09¢70 047
#16
.O RING
$2.27¢1 133
#17
SWITCH,THROTTLE
No Disponible
#18
HOSE
$15.04¢7 521
#19
SCREW
$2.90¢1 449
#20
.RING
$8.25¢4 123
#21
.CLIP NEEDLE
$5.23¢2 616
#22
.RING
$6.14¢3 070
#23
.NEEDLE, JET (6F23)
$22.91¢11 454
#24
.FILTER
$11.66¢5 831
#25
.SCREW, DRAIN
$3.28¢1 639
#26
.JET,PILOT (42.5)
$10.09¢5 043
#27
O RING
$4.76¢2 380
#28
.WASHER
$2.15¢1 075
#29
.SPRING
$4.76¢2 380
#30
.SCREW, PILOT
$14.66¢7 331
#31
.NUT
$4.48¢2 242
#32
.ADJUSTER
$22.97¢11 483
#33
.WASHER
$4.02¢2 012
#34
.SPRING
$8.80¢4 399
#35
.RING
$9.14¢4 571
#36
.ADJUSTER
$42.49¢21 246
#37
.SCREW,5X14 (5X14)
$3.42¢1 708
#38
.O RING
$2.29¢1 144
#39
.PLUG
$5.05¢2 524
#40
HOSE
$15.04¢7 521
#41
JOINT, 3 WAY
$2.91¢1 455
#42
HOSE
$8.34¢4 169
