FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

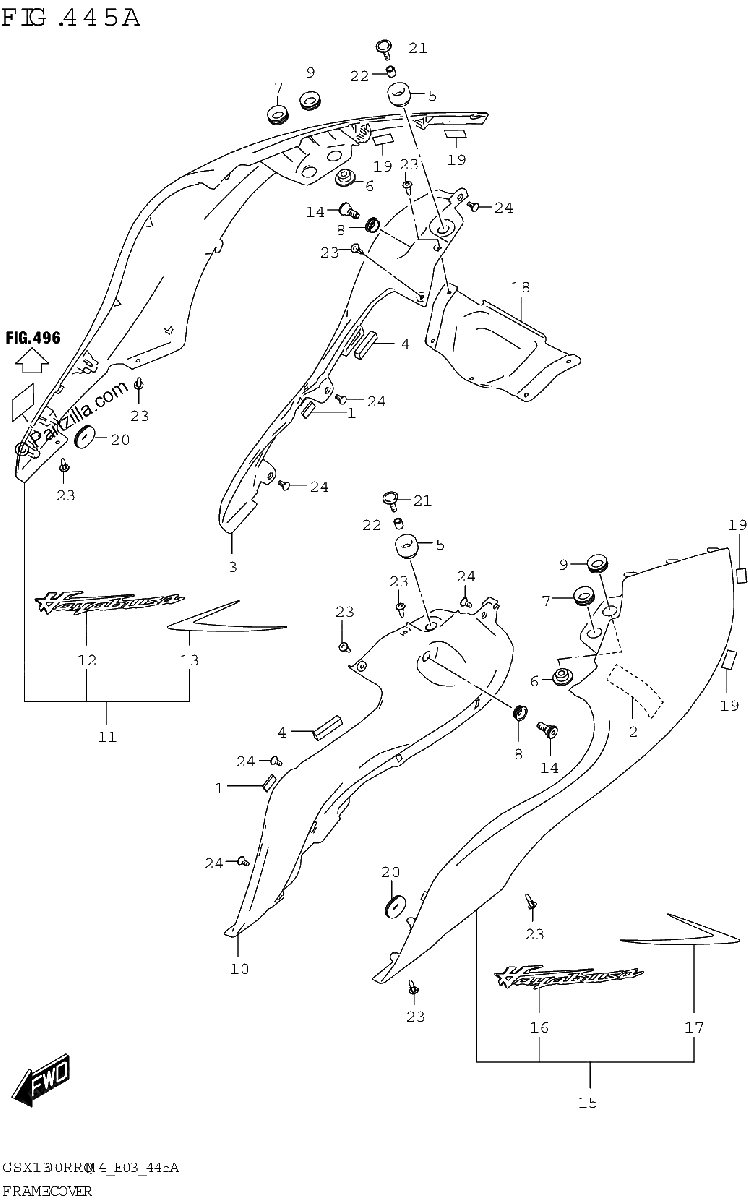

Diagrama de FRAME COVER

Repuestos

#1
33652-22D00
CUSHION (11X20X3)
$2.25¢1 125
1
#2
33652-34000
PROTECTOR (30X80X2)
$6.74¢3 369
1
#3
47111-10L00-QRE
COVER,FRAME,R (ORANGE)
$162.00¢81 000
1
#4
47112-10L00
CUSHION,FRAME COVER NO.2
$1.23¢613
1
#5
47115-16G01
CUSHION,FRAME COVER UP
$4.14¢2 069
1
#6
47190-24F21
WASHER, UPPER REAR
$12.19¢6 094
1
#7
47191-24F00
CUSHION
$6.34¢3 169
1
#8
47191-24F20
SPACER, SIDE CENTER
$8.61¢4 306
1
#9
47191-24F30
CUSHION, UPPER REAR
$8.50¢4 250
1
#10
47211-10L00-QRE
COVER,FRAME,L (ORANGE)
$162.00¢81 000
1
#11
47320-10L10-YVB
COVER,FRAME REAR,R (BLACK)
$172.25¢86 125
1
#12
68131-10L00-B9E
EMBLEM,FRAME COVER,R (ORANGE BLACK)
$14.91¢7 456
1
#13
68135-10L00-AV4
TAPE,FRAME COVER,R (BLACK,RE )
$30.04¢15 019
1
#14
47323-10L00
BOLT,FRAME COVER REAR
$4.28¢2 138
1
#15
47330-10L10-YVB
COVER,FRAME REAR,L (BLACK)
$166.72¢83 363
1
#16
68141-10L00-B9E
EMBLEM,FRAME COVER,L (ORANGE BLACK)
$14.91¢7 456
1
#17
68145-10L00-AV4
TAPE,FRAME COVER,L (BLACK,RE )
$30.04¢15 019
1
#18
47411-10L00
LID,FRAME COVER
$29.16¢14 581
1
#19
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#20
94478-14J00
CUSHION
$7.05¢3 525
1
#21
09136-06126
SCREW (6X25)
$4.13¢2 063
1
#22
09180-06288
.SPACER (6.5X10X11)
$2.66¢1 331
1
#23
09409-06314
CLIP
$3.60¢1 800
1
#24
03541-0512A
SCREW
$1.79¢894
1
