CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

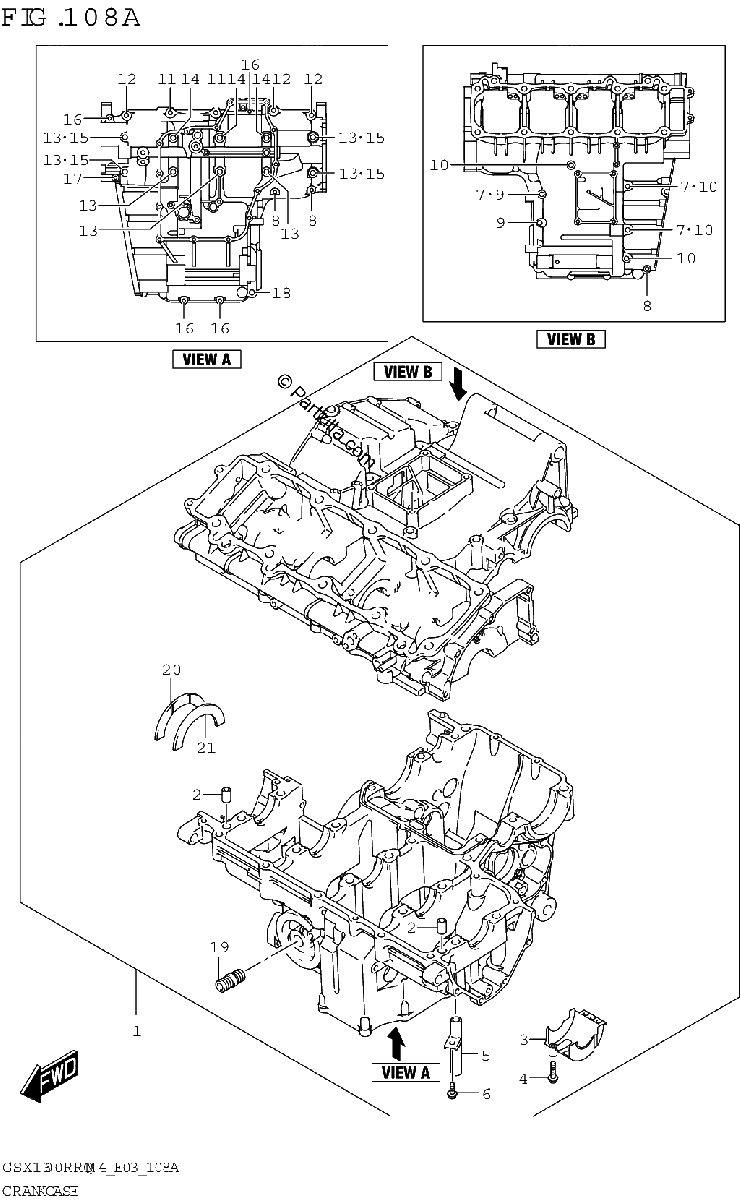

Diagrama de CRANKCASE

Repuestos

#1
11300-10810
CRANKCASE SET
$3415.50¢1 707 750
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
11323-24F10
.SEPARATOR, OIL
No Disponible
1
#4
01547-0625A
BOLT
$2.63¢1 313
1
#5
11328-24F00
.UNION, BREATHER OIL
$25.21¢12 606
1
#6
01547-0612A
BOLT
$2.63¢1 313
1
#7
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#8
01547-0650A
.BOLT
$3.15¢1 575
1
#9
01550-0865A
.BOLT
$4.19¢2 094
1
#10
01550-0880A
.BOLT
$5.59¢2 794
1
#11
09103-08155
.BOLT (8X60)
No Disponible
1
#12
09103-08355
.BOLT (8X50)
$5.59¢2 794
1
#13
09103-09008
.BOLT (9X95)
$9.06¢4 531
1
#14
09103-09010
.BOLT (9X115)
$13.00¢6 500
1
#15
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#16
01547-0640A
.BOLT
$3.01¢1 506
1
#17
01547-0660A
.BOLT
$3.65¢1 825
1
#18
01550-1060A
.BOLT
$5.53¢2 763
1
#19
16591-06B01
.UNION, OIL FILTER STAND
$8.40¢4 200
1
#20
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$13.26¢6 631
1
#21-1
12228-24F00-0A0
.BEARING, CRANK THRUST (RED) | LH
$17.29¢8 644
1
#21-2
12228-24F00-0B0
.BEARING, CRANK THRUST (BLACK
$17.16¢8 581
1
#21-3
12228-24F00-0C0
.BEARING, CRANK THRUST (BLUE)
$17.16¢8 581
1
#21-4
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$13.26¢6 631
1
#21-5
12228-24F00-0E0
.BEARING, CRANK THRUST
$17.94¢8 969
1
#21-6
12228-24F00-0F0
.BEARING, CRANK THRUST (WHITE
$17.94¢8 969
1
