FUEL TANK FRONT COVER E03 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

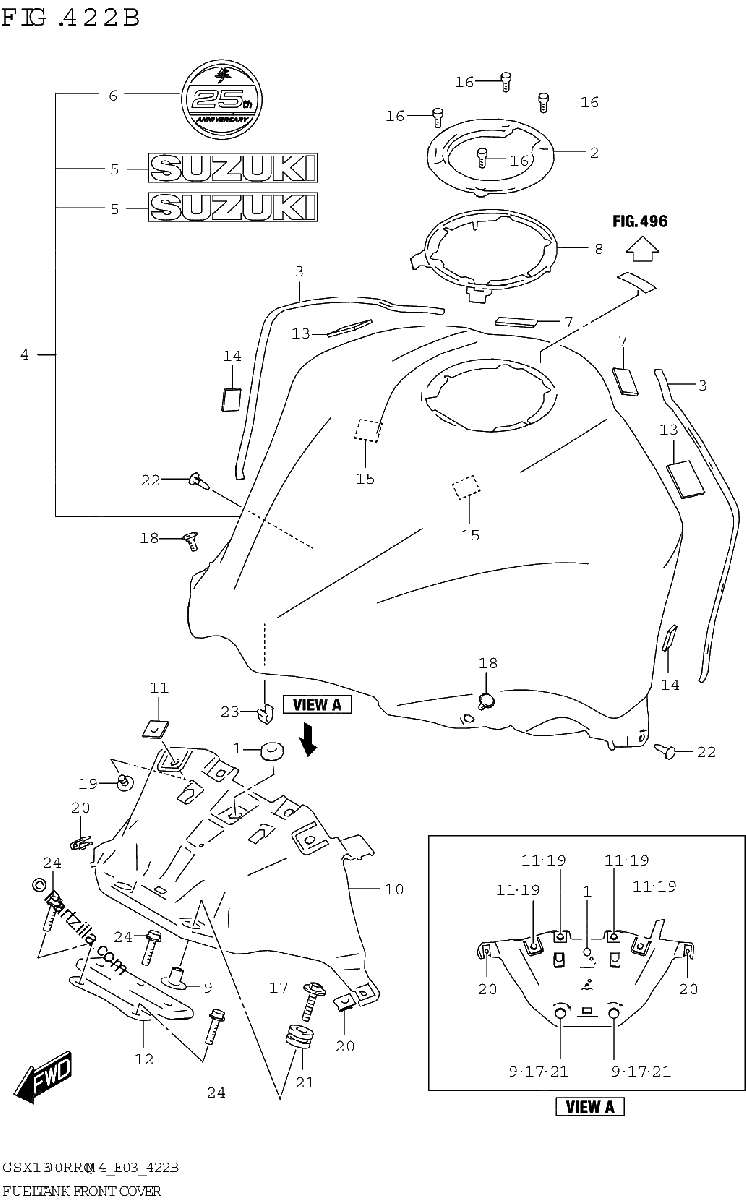

Diagrama de FUEL TANK FRONT COVER E03 E28

Repuestos

#1
44173-14J00
CUSHION, SIDE
$4.70¢2 352
1
#2
44211-10L00
COVER,FUEL TANK CAP
$71.09¢35 546
1
#3
44277-10L00
CUSHION,FUEL TANK FR COVER
$1.47¢736
1
#4
44290-10L10-QRE
COVER,FUEL TANK FRONT (ORANGE
$251.45¢125 724
1
#5
68111-10L00
EMBLEM,"SUZUKI"
$42.86¢21 430
1
#6
68281-10L00
EMBLEM
$69.34¢34 672
1
#7
44292-10L00
CUSHION,FUEL TANK COVER RR
$1.47¢736
1
#8
44295-10L00
RUBBER,FUEL TANK COVER
$10.75¢5 376
1
#9
44512-04K00
SPACER, FUEL TANK FRONT
$8.77¢4 387
1
#10
44521-10L00
BRACKET,FUEL TANK FRONT
$60.66¢30 331
1
#11
44523-47H00
NUT(M6)
$14.63¢7 314
1
#12
44530-10L00
BRACKET,FUEL TANK FR
$18.57¢9 286
1
#13
44572-13G00
FASTENER
$12.13¢6 066
1
#14
44572-44G00
FASTENER
$11.17¢5 583
1
#15
47123-17K00
CUSHION, FRAME COVER NO.3
$4.70¢2 352
1
#16
09106-05026
BOLT (5X12)
$4.00¢2 001
1
#17
09116-06171
BOLT (6X30)
$3.74¢1 869
1
#18
09139-05092
SCREW
$2.67¢1 334
1
#19
09139-06181
SCREW (6X10)
$4.21¢2 105
1
#20
09148-05052
NUT
$3.65¢1 823
1
#21
09320-10050
CUSHION
$3.68¢1 840
1
#22
09409-06314
CLIP
$3.31¢1 656
1
#23
09409-08326
CLIP
$2.93¢1 466
1
#24
01550-0625B
.BOLT
$2.91¢1 455
1
