MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

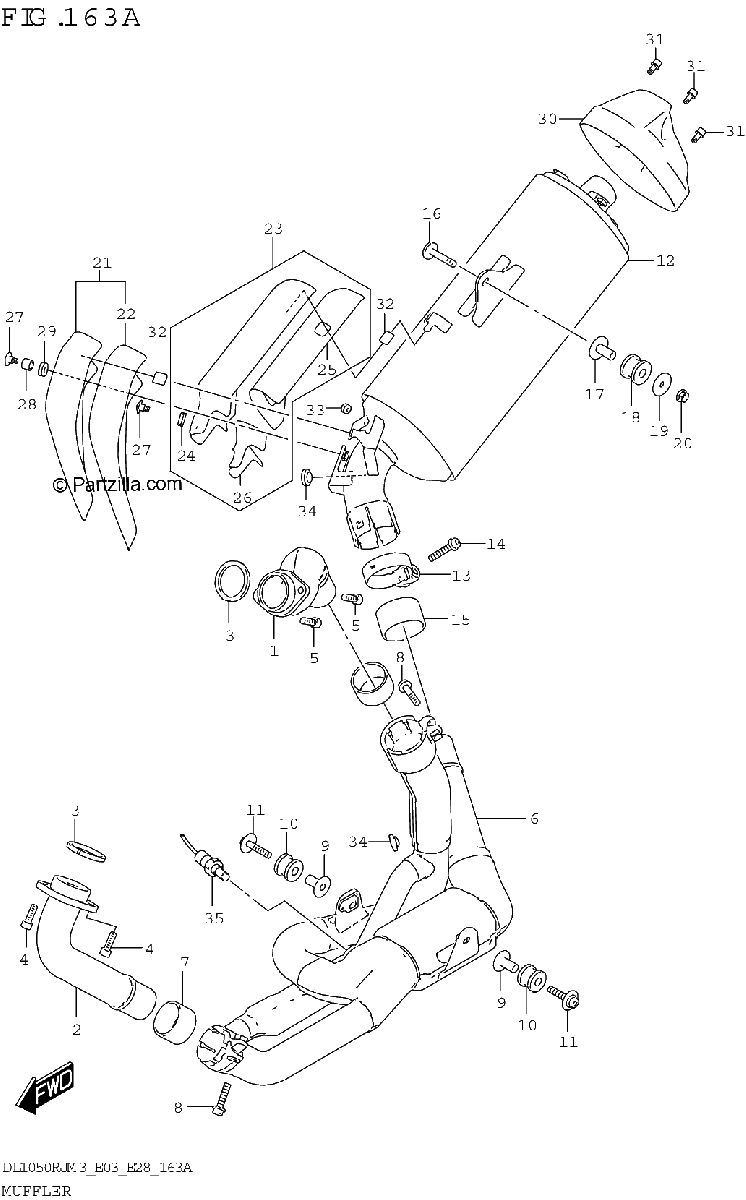

Diagrama de MUFFLER

Repuestos

#1
14150-06L00
PIPE,EXH RR
$200.81¢100 407
1
#2
14160-06L00
PIPE,EXH FR
$131.24¢65 619
1
#3
14181-31D00
.GASKET, EXHAUST PIPE | NOT ILLUSTRATED
$11.59¢5 796
1
#4
09106-08178
BOLT (8X25)
$3.56¢1 783
1
#5
07130-0825A
BOLT
$3.36¢1 679
1
#6
14205-06L10
PIPE,EXH CTR
$1563.63¢781 816
1
#7
14771-42F50
CONNECTOR,JT
$25.55¢12 776
1
#8
09106-08197
BOLT (8X35)
$5.06¢2 530
1
#9
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#10
09320-12077
CUSHION
$12.93¢6 463
1
#11
09116-08176
BOLT,EXH CTR SPRT
$8.77¢4 387
1
#12
14310-06L20-H01
BODY,MUFFLER
$768.08¢384 042
1
#13
14459-31J10
CLAMP, MUFFLER CONNECTOR
$36.86¢18 429
1
#14
09106-08162
BOLT (8X40)
$5.75¢2 875
1
#15
14771-18H00
CONNECTOR, MUFFLER
$37.98¢18 992
1
#16
09106-08195
BOLT (8X45)
$7.45¢3 726
1
#17
09180-08156
SPACER (8.6X12X27.1)
$7.36¢3 680
1
#18
09320-12049
CUSHION
$11.55¢5 773
1
#19
09160-08162
WASHER (8.5X33X1.6)
$2.28¢1 138
1
#20
08316-1008B
NUT
$3.17¢1 587
1
#21
14760-06L00
COVER,MUF FR
$58.86¢29 428
1
#22
14762-06L00
.SHIELD,MUF COV FR HEAT NO.1
$9.64¢4 819
1
#23
14780-06L00
COVER,MUF
$353.42¢176 709
1
#24
09320-08066
CUSHION
$8.91¢4 456
1
#25
14784-06L00
.SHIELD,MUF COV HEAT
$10.75¢5 376
1
#26
14785-06L00
.SHIELD,MUF COV HEAT NO.2
$6.06¢3 030
1
#27
09139-06240
SCREW
$3.79¢1 897
1
#28
09180-06256
SPACER (6.5X9X5.7)
$2.52¢1 259
1
#29
09320-08066
CUSHION
$8.91¢4 456
1
#30
14791-06L01
COVER,MUFFLER R
$119.71¢59 857
1
#31
09116-06528
BOLT
$5.86¢2 932
1
#32
14795-10FA0
.GROMMET
$6.30¢3 151
1
#33
09320-04013
BUSH (4X12X8)
$2.22¢1 110
1
#34
09321-10018
CUSHION
$5.03¢2 513
1
#35
18213-25L00
SENSOR,OXYGEN
$257.16¢128 582
1
