FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

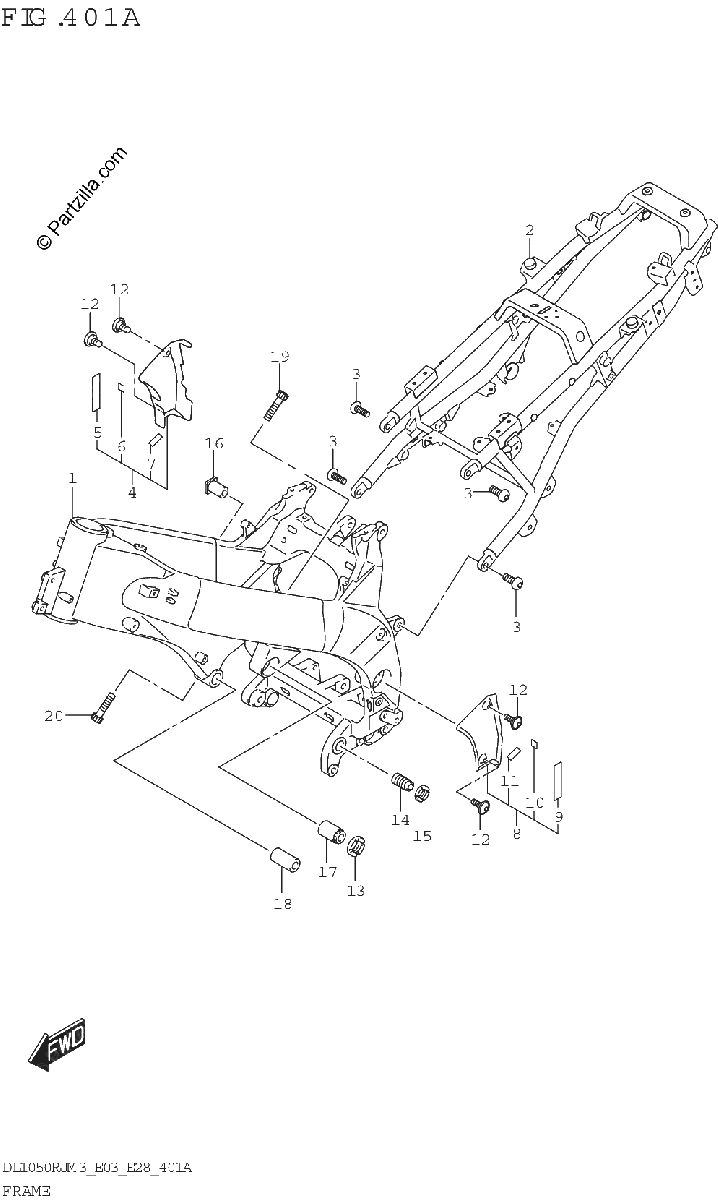

Diagrama de FRAME

Repuestos

#1
41100-31J30-YAP
FRAME (BLACK)
$4025.22¢2 012 613
1
#2
41200-31J40-YAP
RAIL,SEAT (BLACK)
$758.25¢379 125
1
#3
09139-10006
BOLT,SEAT RAIL
$5.50¢2 750
1
#4
43580-31J00
COVER, PIVOT, RH
$31.56¢15 781
1
#5
33652-38A10
CUSHION, FI (20X90X2)
$6.74¢3 369
1
#6
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#7
94429-21E00
.CUSHION, PIVOT COVER NO.2
$4.15¢2 075
1
#8
43590-31J00
COVER, PIVOT LH
$31.56¢15 781
1
#9
33652-38A10
CUSHION, FI (20X90X2)
$6.74¢3 369
1
#10
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#11
94429-21E00
.CUSHION, PIVOT COVER NO.2
$4.15¢2 075
1
#12
09139-05092
SCREW
$2.90¢1 450
1
#13
41922-19F20
NUT, ADJUSTER CENTER
$25.53¢12 763
1
#14
41921-16G10
BOLT,CRANK CASE ADJUST LWR
$9.01¢4 506
1
#15
41922-33E20
NUT, ADJUSTER LOWER
No Disponible
1
#16
41921-47H00
BOLT, CRANK CASE ADJUST
$71.03¢35 513
1
#17
41941-19F01
SPACER, ADJUSTER UPPER
$54.44¢27 219
1
#18
41942-02F00
SPACER, ENG HEAD MTG RR LH
$38.75¢19 375
1
#19
07130-0840B
BOLT
$4.66¢2 331
1
#20
07130-0840B
BOLT
$4.66¢2 331
1
