MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

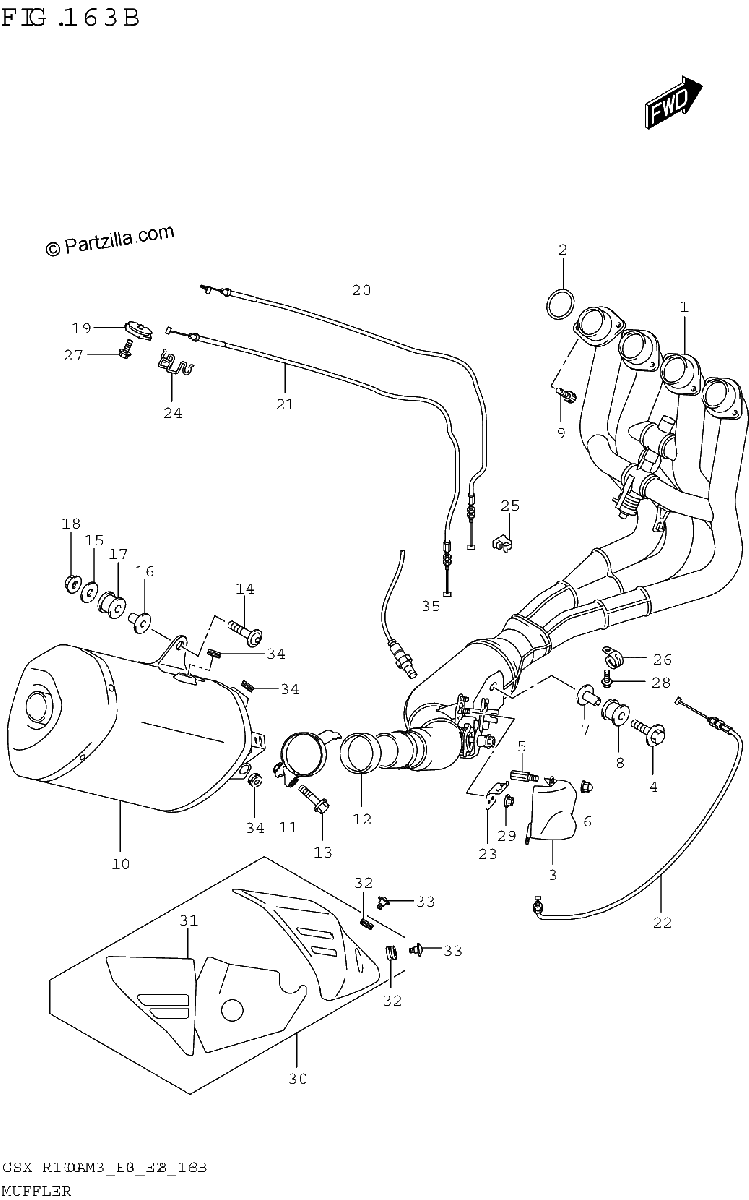

Diagrama de MUFFLER

Repuestos

#1
14100-17K01
EXHAUST
$1749.35¢874 673
1
#2
14181-04K00
GASKET, EXHAUST PIPE *{NOT ILLUSTRATED}*
$9.10¢4 548
1
#3
14280-17K00
COVER, EXHAUST VALVE
$40.17¢20 085
1
#4
09118-08152-A05
BOLT (8X45)
$5.67¢2 835
1
#5
09119-06105
BOLT
$7.22¢3 611
1
#6
09159-06100
NUT
$3.36¢1 679
1
#7
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#8
09320-12077
CUSHION
$12.93¢6 463
1
#9
07130-0825A
BOLT
$3.36¢1 679
1
#10
14310-17KE0-H01
BODY,MUFFLER (BLACK,MAROON,SI VER)
$2776.31¢1 388 154
1
#11
14459-17K10
CLAMP,MUF CONN
$34.94¢17 469
1
#12
14771-24F01
CONNECTOR
$37.49¢18 745
1
#13
09106-08162
BOLT (8X40)
$5.75¢2 875
1
#14
09106-08195
BOLT (8X45)
$7.45¢3 726
1
#15
09160-08157
WASHER (8.5X28X1.6)
$3.66¢1 829
1
#16
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#17
09320-12048
CUSHION
$5.53¢2 766
1
#18
08361-2508B
NUT
$2.69¢1 346
1
#19
11269-18G01
PULLEY, CONTROLLER
$35.77¢17 883
1
#20
11276-17K00
CABLE, EXH VALVE NO.1
$59.89¢29 946
1
#21
11277-17K00
CABLE, EXH VALVE NO.2
$70.36¢35 179
1
#22
11278-17K02
CABLE,EXH VALVE NO.3
$44.47¢22 235
1
#23
14250-21H00
BRACKET, EXHAUST VALVE CABLE
$12.30¢6 152
1
#24
14252-14J00
GUIDE, EXHAUST VALVE CABLE
$9.14¢4 571
1
#25
09403-06414
CLAMP
$4.02¢2 012
1
#26
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#27
01547-0516A
BOLT
$1.87¢937
1
#28
01547-0612A
BOLT
$2.42¢1 208
1
#29
08316-1006A
NUT
$2.62¢1 311
1
#30
14780-17K20
COVER,MUFFLER
$319.03¢159 517
1
#31
14784-17K00
.SHIELD,MUF COVER HEAT
$13.68¢6 842
1
#32
09320-08066
CUSHION
$8.91¢4 456
1
#33
09139-06124
SCREW (6X12)
$5.46¢2 731
1
#34
09320-08066
CUSHION
$8.91¢4 456
1
#35
18213-17K00
SENSOR,OXYGEN
$366.36¢183 178
1
