CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

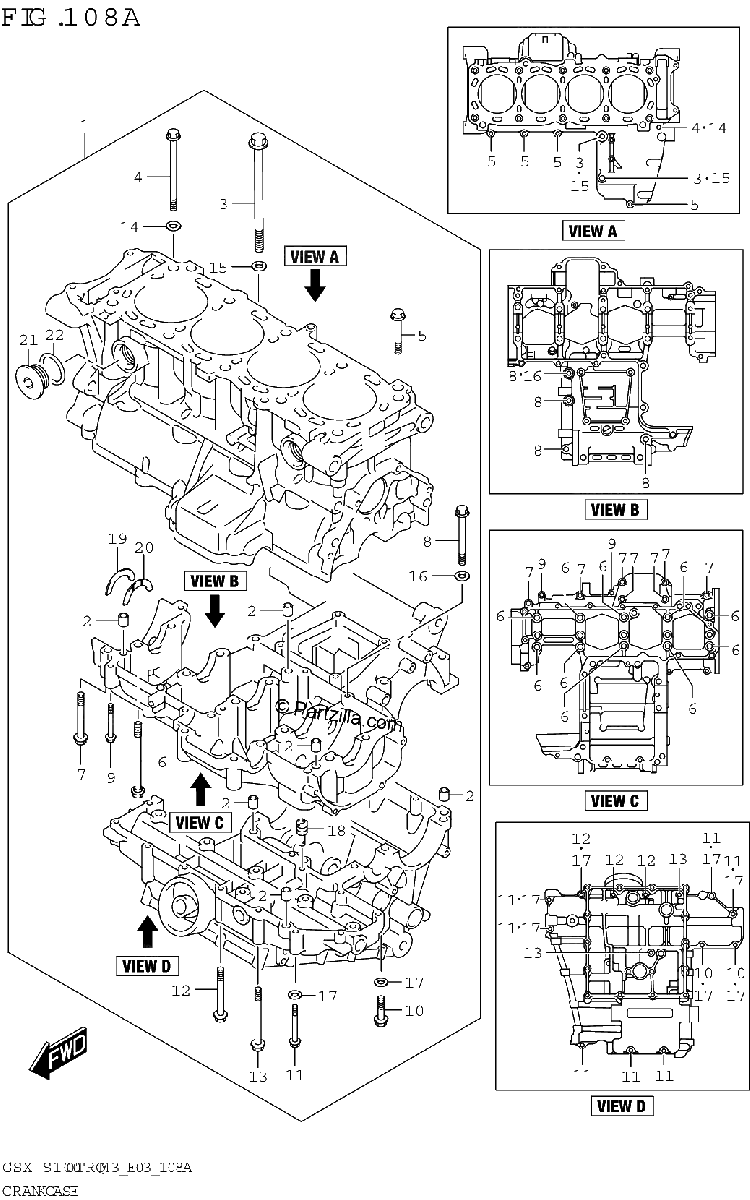

Diagrama de CRANKCASE

Repuestos

#1
11301-04860
CRANKCASE SET
$4420.81¢2 210 406
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
09106-08198
BOLT (8X120)
No Disponible
1
#4
01547-0680A
.BOLT
$4.31¢2 156
1
#5
01547-0640A
.BOLT
$3.01¢1 506
1
#6
09103-09012
.BOLT (9X95)
$10.30¢5 150
1
#7
09103-08339
BOLT (8X55)
$4.16¢2 081
1
#8
07120-0865A
.BOLT
$6.25¢3 125
1
#9
01547-0640A
.BOLT
$3.01¢1 506
1
#10
01547-0630A
BOLT
$3.01¢1 506
1
#11
01547-0640A
.BOLT
$3.01¢1 506
1
#12
01547-0660A
.BOLT
$3.65¢1 825
1
#13
01547-0670A
.BOLT
$3.65¢1 825
1
#14
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#15
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#16
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#17
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#18
09493-28012
JET (140)
$22.15¢11 075
1
#19
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
1
#21
11318-35F00
.PLUG, WATER JACKET
$22.65¢11 325
1
#22
09280-20002
.O RING (D:3.1,ID:19.4)
$2.49¢1 244
1
#20-1
12228-48B00-0B0
.BEARING, THRUST LH (BROWN)
$15.60¢7 800
1
#20-2
12228-48B00-0C0
BEARING, THRUST LH (RED)
$15.34¢7 669
1
#20-3
12228-48B00-0D0
.BEARING, THRUST LH (YELLOW)
$15.90¢7 950
1
#20-4
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
1
#20-5
12228-48B00-0F0
BEARING, THRUST LH (BLUE)
$15.90¢7 950
1
#20-6
12228-48B00-0G0
BEARING, THRUST LH (ORANGE)
$15.90¢7 950
1
#20-7
12228-48B00-0H0
BEARING, THRUST LH (BLACK)
$11.84¢5 919
1
