FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

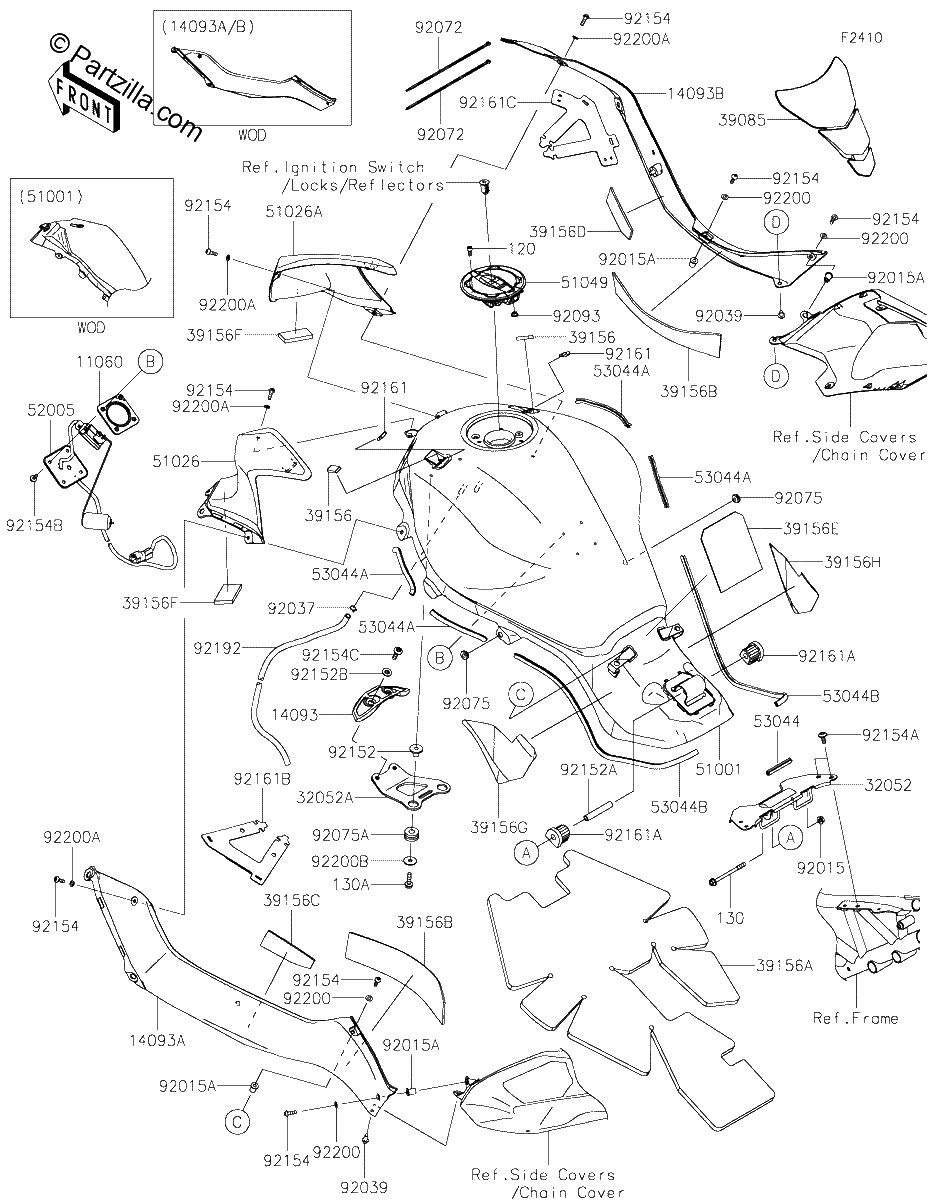

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#130
130BA0675
BOLT FLANGED,6X75
$1.55¢776
1
#130A
130CA0622
BOLT FLANGED,6X22
$2.28¢1 138
1
#11060
11060-1952
GASKET,FUEL GAUGE
$20.55¢10 275
1
#14093
14093-0676
COVER,TANK,FR
$14.00¢6 998
1
#14093A
14093-0912-J03
COVER,KNEE,LH,M.D.BLACK
$224.80¢112 401
1
#14093B
14093-0913-J03
COVER,KNEE,RH,M.D.BLACK
$224.80¢112 401
1
#32052
32052-0812
BRACKET-TANK
$96.60¢48 300
1
#32052A
32052-0860
BRACKET TANK
$39.30¢19 648
1
#39085
39085-0015
PAD-TANK
$140.91¢70 455
1
#39156B
39156-2257
PAD,50X250X3
$7.68¢3 841
1
#39156
39156-0705
PAD,20X30X4
$0.54¢270
1
#39156A
39156-2229
PAD,FUEL TANK,LWR
$137.45¢68 724
1
#39156C
39156-2290
PAD,43X95X8,LH
$5.73¢2 864
1
#39156D
39156-2291
PAD,43X95X8,RH
$5.73¢2 864
1
#39156E
39156-2307
PAD,113X100X2
$10.15¢5 077
1
#39156F
39156-2520
PAD,25X50X8
$1.66¢828
1
#39156G
39156-2816
PAD,FUEL TANK,Left Hand
$25.01¢12 506
1
#39156H
39156-2817
PAD,FUEL TANK,RH
$25.01¢12 506
1
#51001
51001-0919-J03
TANK COMP FUEL,M D BLACK
$1593.97¢796 984
1
#51026
51026-0016-J03
COVER TANK,LH,M.D.BLACK
$163.21¢81 604
1
#51026A
51026-0017-J03
COVER TANK,RH,M.D.BLACK
$163.21¢81 604
1
#51049
51049-0756
CAP-TANK,FUEL
$160.05¢80 023
1
#52005
52005-0763
GAUGE,FUEL
$246.62¢123 309
1
#53044B
53044-0628
TRIM,450MM
$8.30¢4 151
1
#53044A
53044-0627
TRIM,105MM
$2.81¢1 403
1
#53044
53044-0565
TRIM
$2.89¢1 443
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.59¢1 794
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92072
92072-0782
BAND,202X3.6
$1.81¢903
1
#92075A
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92075
92075-1011
DAMPER,6X16X7
$6.72¢3 358
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152A
92152-1182
COLLAR,6.8X10X60
$4.42¢2 208
1
#92152B
92152-2495
COLLAR,6.5X16X4.6
$4.43¢2 214
1
#92152
92152-0091
COLLAR,6.3X10X14.5
$10.68¢5 342
1
#92154B
92154-1856
BOLT,FLANGED,5X12
$1.59¢793
1
#92154A
92154-1807
BOLT,SOCKET,6X14
$2.74¢1 368
1
#92154C
92154-2234
BOLT,SOCKET,6X22
$1.64¢822
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92161A
92161-1737
DAMPER,FUEL TANK
$5.37¢2 685
1
#92161B
92161-2181
DAMPER,LH
$31.42¢15 709
1
#92161C
92161-2182
DAMPER,RH
$28.15¢14 076
1
#92192
92192-1669
TUBE,DRAIN,6X9X808
$11.03¢5 514
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-1011
WASHER,NYLON,5.2X12X1
$2.58¢1 288
1
#92200B
92200-1087
WASHER,6.5X22X1.6
$3.61¢1 805
1
